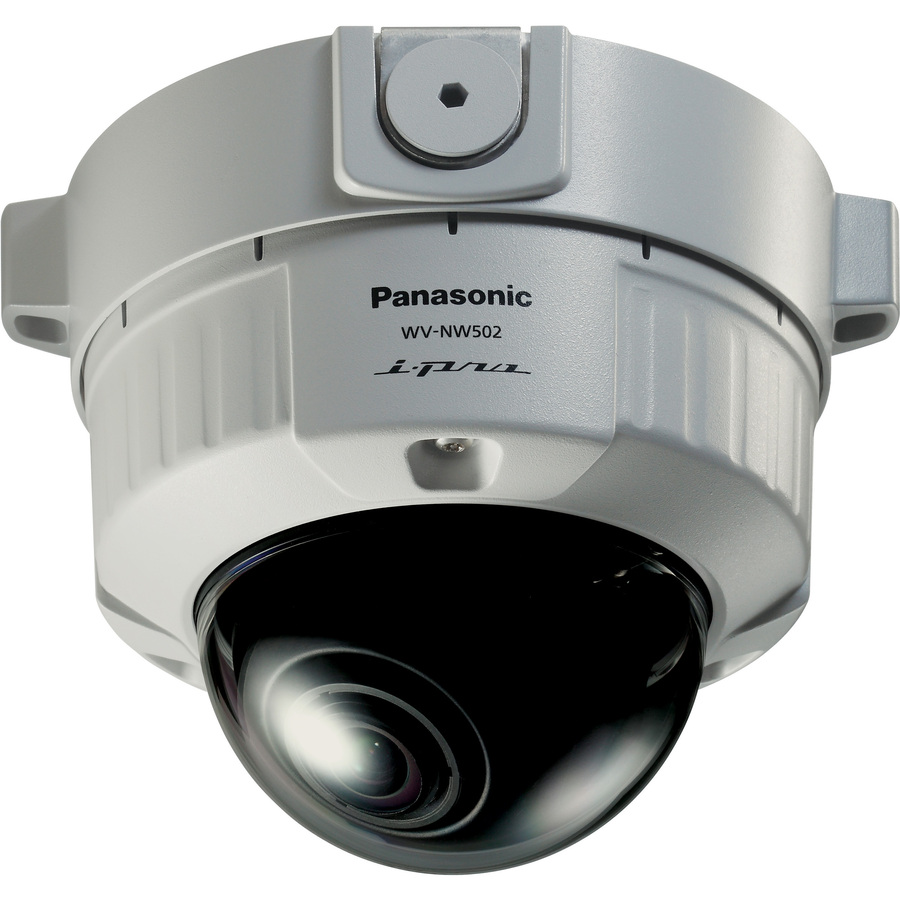

Panasonic WV-NW502S/15 Security Camera

The Panasonic WV-NW502S/15 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Panasonic WV-NW502S - Panasonic WV-NW502S Network Camera - Dome - H.264, MPEG-4 - 1280 x 960 - 3.3x Optical - CCD - Fast Ethernet
  • Features CCD image sensor
  • Up to 1280 x 960 video resolution
Read More
Discontinued Need Assistance?
Add to Quote

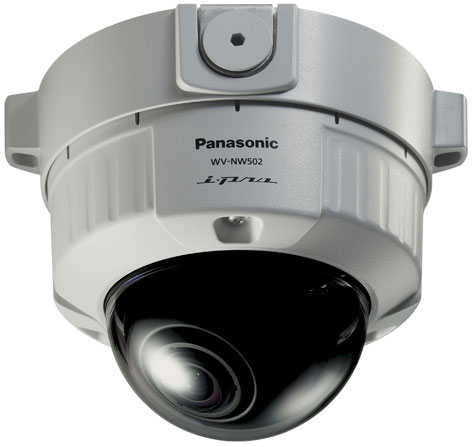

Panasonic WV-NW502S Security Camera Model Overview
The WV-NW502S by Panasonic is a 3.0 megapixel vandal-resistant IP camera offers multiple stream formats: H.264, MPEG-4 and JPEG compression. The camera incorporates Panasonic's exclusive MEGA Super Dynamic camera technology with 128x dynamic range, Adaptive Black Stretch technology to make dark areas more visible, and face detection technology to better identify subjects. The WV-NW502S incorporates a progressive scan megapixel CCD that delivers clear images with less motion blur and no tearing even when subjects are moving. Additional performance features on the WV-NW502S include a primary (RGB) color filter for superior color reproduction, Adaptive Digital Noise Reduction to adjust to changing viewing conditions, and Auto Back Focus (ABF) that adjusts the positioning of the CCD sensor to provide accurate focus in both color and black-and-white modes and reduce post-installation intervention.
Panasonic WV-NW502S/15 Security Camera Overview

This 3.0 megapixel vandal-resistant IP camera offers multiple stream formats: H.264, MPEG-4 and JPEG compression. The camera incorporates Panasonic's exclusive MEGA Super Dynamic camera technology with 128x dynamic range, Adaptive Black Stretch technology to make dark areas more visible, and face detection technology to better identify subjects.

The WV-NW502S provides images at 30 frames per second in H.264 format (in 1.3 megapixel mode). The cameras' advanced mega Super Dynamic image technology allows more sensitivity for lower light levels (1.0 lux color and 0.08 lux black-and-white at F1.4 in 1.3 megapixel mode) for clear images even when light is dim, which is ideal for 24-hour surveillance. It incorporates a progressive scan megapixel CCD that delivers clear images with less motion blur and no tearing even when subjects are moving. Additional performance features include a primary (RGB) color filter for superior color reproduction, Adaptive Digital Noise Reduction to adjust to changing viewing conditions, and Auto Back Focus (ABF) that adjusts the positioning of the CCD sensor to provide accurate focus in both color and black-and-white modes and reduce post-installation intervention.

Display & Graphics
Image Sensor Type:
CCD
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
75° to -75°
Swivel:
-170° to 170°
Field of View:
100°
Video
Video Formats:
  • H.264
  • MPEG-4
Maximum Video Resolution:
1280 x 960
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Maximum Image Resolution:
2048 x 1536
Lens
Lens Type:
Zoom
Minimum Focal Length:
15 mm
Maximum Focal Length:
50 mm
Lens Included:
Yes
Lens Mount Type:
CS-Mount
Minimum Aperture:
f/1.2
Maximum Aperture:
f/1.8
Optical Zoom:
3.3x
Digital Zoom:
4x
Focus Modes:
  • Automatic
  • Fixed Focus
  • Manual
  • Preset
Minimum Focus Distance:
11.81"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
3/100 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv4
  • TCP/IP
  • UDP/IP
  • HTTP
  • RTSP
  • RTP
  • RTCP
  • FTP
  • SMTP
  • DHCP
  • DNS
  • DDNS
  • NTP
  • SNMP
  • IPv6
Controls/Indicators
Status Indicators:

OSD

Power Description
Maximum Power Consumption:
7.60 W
Physical Characteristics
Form Factor:
Dome
Durability:
  • Water Resistant
  • Dust Resistant
  • Vandal Resistant
Color:
Silver
Height:
5.7"
Width:
7.5"
Diameter:
6.5"
Miscellaneous
Features:
  • Motion Detection
  • Face Detection
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • Super Dynamic Megapixel Vandal-Resistant Fixed Dome Network Camera
  • CD-ROM
  • Installation Guide
  • Code Label
  • 2P Power Cable
  • 4P Alarm Cable
  • Camera Attachment
  • Mount Bracket
  • Base Cover
  • 5 x Fixing Screws (M4 x 8 mm)
  • Bit for Tamperproof Screw
  • Butyl Tape
System Requirements:
  • Supported OS: Microsoft Windows Vista Business SP1 32 Bit, Microsoft Windows XP Home Edition/Professional SP3
  • Supported Browsers: Windows Internet Explorer 7.0 (Microsoft Windows Vista Business SP1 32 Bit), Microsoft Internet Explorer 6.0 SP3 (Microsoft Windows XP Home Edition/Professional SP3)
Compatibility:

NTSC

Certifications & Standards:
  • UL 60065
  • FCC Part15 ClassA
  • C-UL (CAN/CSA C22.2 No.60065)
  • DOC ICES003 ClassA
  • IP66
  • IEC60529
  • IEC 60068-2-75
Ingress Protection Rating:
IP66
Platform Supported:
PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0111111115993
UPC: 111111115993
EAN: 0111111115993
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Panasonic WV-NW502S/15 Security Camera is also known as PAN-WVNW502S15
