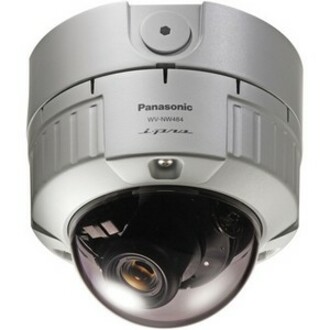

Panasonic WV-NW484S Security Camera

Part Number: WV-NW484S
Model: WV-NW484S
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
Minimum Illumination
0 lux
Color Supported
ColorMonochrome
Tilt
75° to 75°

Product Description:

  Panasonic i-Pro WV-NW484S Super Dynamic III Vandal Proof Network Fixed Dome Camera - Color, Black & White - CCD - Cable
Explore all Panasonic WV-NW484S Security Cameras
Add to Quote
Panasonic WV-NW484S Security Camera
Panasonic WV-NW484S Security Camera
Panasonic WV-NW484S Security Camera Panasonic WV-NW484S Security Camera
Full specifications (PDF)

Panasonic WV-NW484S Security Camera Model Overview

The Panasonic WV-NW484S features progressive output with motion adaptive interlace/progressive conversion.
Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
75° to 75°
Swivel:
175° to 175°
Video
Maximum Video Resolution:
640 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.80 mm
Maximum Focal Length:
8 mm
Optical Zoom:
2x
Digital Zoom:
3x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Protocols:
  • TCP/IP
  • UDP
  • HTTP
  • FTP
  • SMTP
  • DHCP
  • DNS
  • DDNS
  • NTP
  • SNMP
  • RTP
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Dome
Height:
6"
Diameter:
6.3"
Weight (Approximate):
4.19 lb
Miscellaneous
Package Contents:
  • i-Pro WV-NW484S Super Dynamic III Vandal Proof Network Fixed Dome Camera
  • CD-ROM
  • Operating Instructions, Basic Manual
  • Label (MAC address)
  • 4-pin Alarm Cable
  • RJ-45 female-female conversion connector
  • Mounting Bracket
  • Driver Bit
  • Waterproof tape (butyl rubber tape)
  • Panasonic IP Setup Software
  • Viewer software "Network Camera View3"
  • Standard Operation Manual/Standard Setup Manual (PDF)
Additional Information:
  • Super Dynamic III technology delivers 128x wider dynamic range compared to conventional cameras
  • Auto Back Focus (ABF) ensures easy installation and stable focus in both color and B/W modes
  • SD Memory card slot for alarm recording and backup upon network failure
  • Power over Ethernet (PoE) IEEE 802.3af
  • Three-way hinge (horizontal, vertical and swivel rotation) for easy installation
System Requirements:
  • Microsoft Windows 2000 Professional SP4
  • Microsoft Windows XP Professional/Home SP2 English, French, Italian, Spanish, German
  • Internet Explorer 7.0
  • Internet Explorer 6.0 SP2 (Windows XP Home/Professional SP2)
  • Internet Explorer 6.0 SP1 (Only Windows 2000 Professional SP4)
Compatibility:
  • NTSC
  • PAL
Security Features:
  • User authentication (ID and Password)
  • Host authentication (IP address)
Platform Supported:
PC
Item Numbers
GTIN: 0791871505403
UPC: 791871505403
EAN: 0791871505403
UNSPSC: 46171610
