Full specifications (PDF)
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Tilt:
75° to 75°
Swivel:
175° to 175°

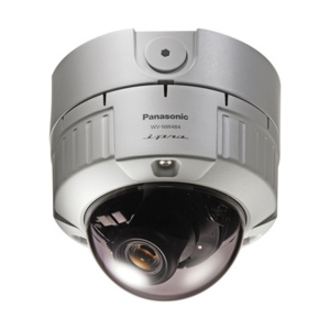

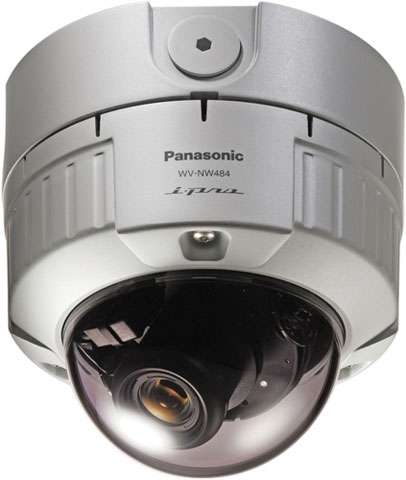

Panasonic WV-NW484S Security Camera Model Overview
The Panasonic WV-NW484S features progressive output with motion adaptive interlace/progressive conversion.
Display & Graphics
Video
Maximum Video Resolution:
640 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
15 mm
Maximum Focal Length:
50 mm
Optical Zoom:
3.3x
Digital Zoom:
3x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Protocols:
- TCP/IP
- UDP
- HTTP
- FTP
- SMTP
- DHCP
- DNS
- DDNS
- NTP
- SNMP
- RTP
Power Description
Input Voltage:
- 24 V AC
- 12 V DC
Physical Characteristics
Form Factor:
Dome
Height:
6"
Diameter:
6.3"
Weight (Approximate):
4.19 lb
Miscellaneous
Package Contents:
- i-Pro WV-NW484S Dome Network Camera
- CD-ROM
- Operating Instructions
- Label (MAC address)
- 4-pin Alarm Cable
- RJ-45 female-female Conversion Connector
- Mounting Bracket
- Driver Bit
- Waterproof Tape
Additional Information:
- Scene Change Detection alarms when lens is covered, spray painted, removed or defocused
- Video Motion Detector with 4 programmable detection areas and 3 sensitivity levels
- Auto image stabilizer for applications where vibration or wind is a concern
- Up to 32x automatic electronic sensitivity enhancement
- SD Memory card slot for alarm recording and backup upon network failure
System Requirements:
Operating System:
- Microsoft Windows 2000 Professional SP4
- Microsoft Windows XP Professional/Home SP2 English, French, Italian, Spanish, German
Browser:
- Internet Explorer 7.0
- Internet Explorer 6.0 SP2 (Windows XP Home/Professional SP2)
- Internet Explorer 6.0 SP1 (Only Windows 2000 Professional SP4)
Compatibility:
NTSC
Security Features:
- User authentication (ID and Password)
- Host authentication (IP address)
Platform Supported:
PC
Item Numbers
UNSPSC:
46171610
