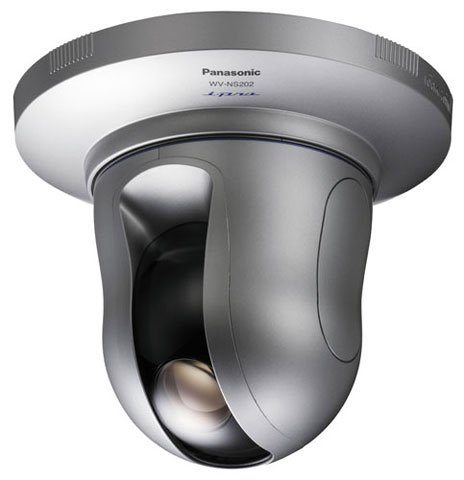

Panasonic WV-NS202A Security Camera

The Panasonic WV-NS202A Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Panasonic WV-NS202 - Panasonic i-Pro WV-NS202A PTZ Network Camera - Black & White, Color - CCD - Cable
  • For remote surveillance needs, this network camera is best suited
  • Features CCD image sensor
  • Up to 640 x 480 resolution for surveillance in real-time
Read More

Need a different version? See all Panasonic WV-NS202 Security Cameras

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Panasonic WV-NS202A Security Camera
Panasonic WV-NS202A Security Camera Panasonic WV-NS202A Security Camera
Panasonic WV-NS202A Security Camera
Panasonic WV-NS202A Security Camera
Full specifications (PDF)
Panasonic WV-NS202 Security Camera Model Overview
The Panasonic WV-NS202 features Super Dynamic III and progressive output to create unparalleled high sensitivity and high resolution image reproduction. The highly reliable WV-NS202 features image backup functions and industrial grade mechanisms while remaining cost effective. Designed for professional surveillance applications, the WV-NS202 PTZ network camera is a superior match for your surveillance needs.
Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0.5 lux
Color Supported:
  • Monochrome
  • Color
Tilt:
90° to 30°
Swivel:
175° to 175°
Video
Maximum Video Resolution:
640 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.79 mm
Maximum Focal Length:
83.40 mm
Optical Zoom:
22x
Digital Zoom:
10x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Protocols:
  • TCP/IP
  • UDP
  • HTTP
  • FTP
  • SMTP
  • DHCP
  • DNS
  • DDNS
  • NTP
  • SNMP
  • RTP
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
6.1"
Diameter:
4.5"
Weight (Approximate):
1.87 lb
Miscellaneous
Package Contents:
  • i-Pro WV-NS202A PTZ Network Camera
  • Installation Guide
  • Mount Bracket (with safety wire)
  • 2 x Fixing Screw
  • Decorative Cover
  • DC 12 V Power Cord Plug
  • Code Label
  • CD-ROM
Additional Information:
  • Built-in MPEG-4 and JPEG digital signal output at VGA image size with up to 30 ips
  • Super Dynamic III technology delivers 128x wider dynamic range compared to conventional cameras
  • Up to 32x automatic electronic sensitivity enhancement
  • Video Motion Detector with 4 programmable detection areas and 3 sensitivity levels
  • Power over Ethernet (PoE) IEEE 802.3af
System Requirements:
  • Microsoft Windows 2000 Professional SP4
  • Microsoft Windows XP Professional/Home SP2 (English, French, Italian, Spanish, German)
  • Internet Explorer 7.0 Internet Explorer 6.0 SP2 (Windows XP Home/Professional SP2)
  • Internet Explorer 6.0 SP1 (Only Windows 2000 Professional SP4)
Compatibility:
NTSC
Security Features:
  • User authentication (ID and Password)
  • Host authentication (IP address)
Platform Supported:
PC
Item Numbers
GTIN: 0791871504888
UPC: 791871504888
EAN: 0791871504888
UNSPSC: 46171610
