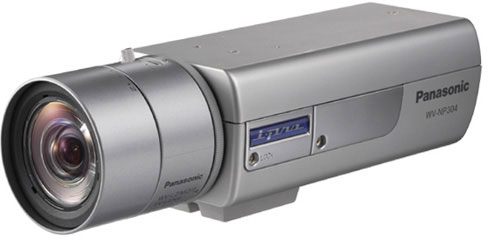

Panasonic WV-NP304 Security Camera

The Panasonic WV-NP304 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Panasonic WV-NP304 - Panasonic WV-NP304 Network Camera - 640 x 480 - CCD
  • Features CCD image sensor
  • Up to 640 x 480 video resolution
Read More
Discontinued Need Assistance?
Add to Quote
Panasonic WV-NP304 Security Camera Model Overview
The WV-NP304 features a 1280 x 960 megapixel image sensor with MPEG-4/JPEG digital output at a VGA image size up to 30 ips and with dual streaming capabilities. The camera's impressive Day/Night performance is accentuated by user-selectable light control features that assure the best image clarity in changing lighting conditions and/or different camera locations. Other performance features include: PoE, built-in video motion detection (VMD); progressive output for clear moving images; Adaptive Black Stretch (ABS) to enhance the visibility of dark areas without compromising the bright area in the same scene; RGB filter for superior color reproduction; focus assist with on-screen focus adjustment for optimal focus; and SD memory card slot for backup recording due to network failure. The WV-NP304 is designed for easy installation with an analog monitor output for quick verification of camera adjustments.
Panasonic WV-NP304 Security Camera Overview

The i-Pro WV-NP304 megapixel network camera features a 1280 x 960 megapixel image sensor with MPEG-4/JPEG digital output at a VGA image size up to 30 ips and with dual streaming capabilities. The camera's impressive Day/Night performance is accentuated by user-selectable light control features that assure the best image clarity in changing lighting conditions and/or different camera locations.

Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0.9 lux
Color Supported:
  • Color
  • Monochrome
Video
Maximum Video Resolution:
640 x 480
Lens
Digital Zoom:
4x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Protocols:
  • TCP/IP
  • UDP
  • HTTP
  • RTP
  • FTP
  • SMTP
  • DHCP
  • DNS
  • DDNS
  • NTP
  • SNMP
Power Description
Input Voltage:
  • 12 V DC
  • 24 V AC
Physical Characteristics
Height:
2.7"
Width:
2.8"
Depth:
6.2"
Weight (Approximate):
1.03 lb
Miscellaneous
Package Contents:
  • WV-NP304 Day/Night Network Camera
  • Software CD-ROM
  • Installation Manual
  • Power Terminal
  • Code Label
  • Safety Wire Plate (for ceiling mount)
  • Safety Wire Lug (for wall mount)
  • 2 x Screw (M2.5 x 8)
Additional Information:
  • Superior color reproduction by primary (RGB) color filter
  • Up to 16x automatic electronic sensitivity enhancement
  • Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits
System Requirements:

Supported OS:

  • Microsoft Windows Vista Business (32 bit)
  • Microsoft Windows XP Home Edition SP2
  • Microsoft Windows XP Professional SP2

Supported Browser:

  • Windows Internet Explorer 7.0
  • Microsoft Internet Explorer 6.0 SP2 (only with Microsoft
  • Windows XP Home Edition SP2 or Microsoft Windows XP Professional SP2)
Compatibility:

NTSC

Security Features:
  • User authentication (ID 1 - 32 digit, PW 4 - 32 digit)
  • Host authentication (IP address)
Platform Supported:
PC
Item Numbers
GTIN: 0616174200759, 0650415533558, 0791871505847
UPC: 616174200759, 650415533558, 791871505847
EAN: 0616174200759, 0650415533558, 0791871505847
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Panasonic WV-NP304 Security Camera is also known as PAN-WVNP304
