Full specifications (PDF)
Maximum Illumination:
10 lux
Color Supported:
Color
Tilt:
30° to 90°
Swivel:
70° to 70°

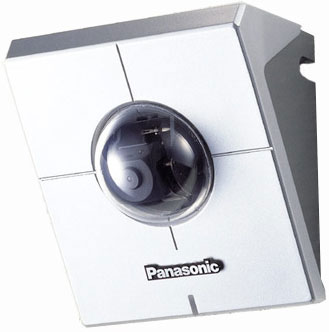

Panasonic WV-NM100 Security Camera Model Overview
The new WV-NM100 from Panasonic helps you capture live images and displays them on your PC. Integrated into this compact frame work a digital camera, a web server and a network interface. It also supports connection to Ethernet providing seamless network monitoring. Some of its elegant features are Easy Monitoring with a Web Browser, JPEG and MPEG4 video compression, Powerful alarm capabilities etc.
Panasonic WV-NM100 Security Camera Overview
The WV-NM100 captures live images and displays them onto your personal computer. A digital video camera, a web server, and a network interface are integrated into one compact housing. The camera can be connected directly to an Ethernet terminal, enabling effortless network monitoring. Simply setup an IP address.
Display & Graphics
Video
Video Formats:
- MJPEG
- MPEG-4
Maximum Video Resolution:
640 x 480
Lens
Focus Modes:
Fixed Focus
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP/IP
- UDP
- HTTP
- FTP
- SMTP
- RTP
- DNS
- DDNS
- DHCP
- ARP
- BootP
- SNMP
- NTP
Power Description
Maximum Power Consumption:
9 W
Input Voltage:
9 V DC
Physical Characteristics
Height:
3.7"
Width:
3.7"
Depth:
2.4"
Weight (Approximate):
6.35 oz
Miscellaneous
Additional Information:
- Pick-up Device: 1/4-type solid state image sensor
- Effective Pixels: 660 (H) x 492 (V) pixels
- Picture Sampling at Image Sensor: 30 ips
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0791871503737
UPC:
791871503737
EAN:
0791871503737
UNSPSC:
46171610
