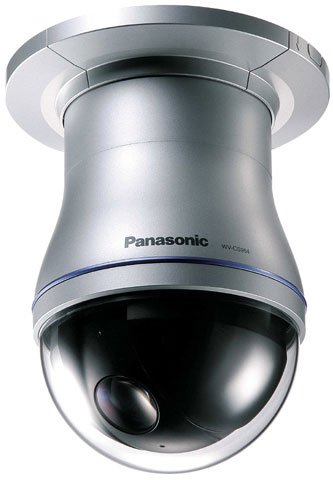

Panasonic WV-CS954 Security Camera

Part Number: WV-CS954
Model: WV-CS954
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
Maximum Illumination
0.5 lux
Color Supported
ColorMonochrome
Tilt
185° to 5°

Product Description:

  Panasonic WV-CS954 Super Dynamic III PTZ Dome Camera - Color, Black & White - CCD - Cable
Explore all Panasonic WV-CS954 Security Cameras
Add to Quote
Panasonic WV-CS954 Security Camera
Panasonic WV-CS954 Security Camera
Panasonic WV-CS954 Security Camera Panasonic WV-CS954 Security Camera
Full specifications (PDF)

Panasonic WV-CS954 Security Camera Model Overview

The Super Dynamic III dome camera WV-CS954 from Panasonic power packed with 30X optical zoom offers dramatic enhancement in subject identification. With its 10X digital zoom, a total zoom capability of 300X it is capable of identifying any distant subject. WV-CS954's pixel based 128X Dynamic Range works superbly even when the contrast changes from scene to scene. . Area free natural contrast image correction ensures accurate reproduction, whatever the subject. Horizontal resolution is significantly higher, 540 lines (typical) in color or 570 lines in B/W. Images stay clear and sharp in lighting as low as 0.5 lux in and 0.04 lux in black and white. Adaptive Digital Noise Reduction eliminates streaking from objects such as headlights.
Panasonic WV-CS954 Security Camera Overview

The Panasonic WV-CS954 Super Dynamic III dome camera is equipped with a 30x optical zoom lens. Combined with a 10x digital zoom, for a total zoom capability up to 300x, this camera can identify distant subjects. With its pixel based 128x Dynamic Range, the WV-CS954 works beautifully even when contrast changes from scene to scene. Area free natural contrast image correction ensures accurate reproduction, whatever the subject. Horizontal resolution is significantly higher, 540 lines (typical) in color or 570 lines in B/W. Images stay clear and sharp in lighting as low as 0.5 lux in and 0.04 lux in black and white. Adaptive Digital Noise Reduction eliminates streaking from objects such as headlights. Whatever the situation, WV-CS954 offers dramatic improvement in subject identification.

Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CCD
Maximum Illumination:
0.5 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
185° to 5°
Swivel:
180° to 180°
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.80 mm
Maximum Focal Length:
114 mm
Optical Zoom:
30x
Digital Zoom:
10x
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Power Description
Maximum Power Consumption:
13 W
Input Voltage:
24 V AC
Physical Characteristics
Form Factor:
Dome
Height:
9.2"
Diameter:
6.1"
Weight (Approximate):
4.84 lb
Miscellaneous
Additional Information:
  • Effective Pixels: 768 (H) x 494 (V)
  • Scanning Area: 3.65 mm (H) x 2.74 mm (V)
  • Synchronization: Internal / Line-Lock / Multiplexed Vertical Drive (VD2)
  • Scanning: 2:1 interlace
  • Scanning Frequencies: 15.734kHz (H), 59.94Hz (V)
  • Dynamic Range: 52dB typical (Super-Dynamic III: On)
  • Signal-to-Noise Ratio: 50dB minimum (AGC: Off)
  • AGC: On (Low/Mid/High), Off
  • Iris: ALC (Adjustable Open/Close output target level)/Manual
  • Digital Flip: On/Off
  • Super Dynamic III: On/Off
  • Motion Detector: Off/Mode1/Mode2
  • Black and White Mode Switching: Auto/On/Off
  • Patrol: Stop/Play/Learn
  • Cleaning: On/Off
  • Image Hold: On/Off
  • Stabilizer: On/Off
  • Panning Speed:
  • Manual: approx. 0.065°/s -120°/s 8 steps, 16 steps, 64 steps
  • Preset: approx. 400°/s
  • Tilting Speed:
  • Manual: approx. 0.065°/s - 120°/s 8 steps, 16 steps, 64 steps
  • Preset: approx. 400°/s

Panning Modes:

  • Manual
  • Auto
  • Manual position
  • Sequential position

Tilting Modes:

  • Manual
  • Manual position
  • Sequential position

Scene Select Setting:

  • Indoor (L)
  • Indoor (H)
  • Outdoor (L)
  • Outdoor (H)

Language Setting:

  • English
  • German
  • French
  • Italian
  • Spanish
  • Russian
  • Chinese
  • Japanese
Compatibility:
  • NTSC
  • EIA
Security Features:
  • Password Lock: All menus
  • Privacy Zone: On/Off (8 zone settings)
Item Numbers
GTIN: 0791871504468
UPC: 791871504468
EAN: 0791871504468
UNSPSC: 46171610
