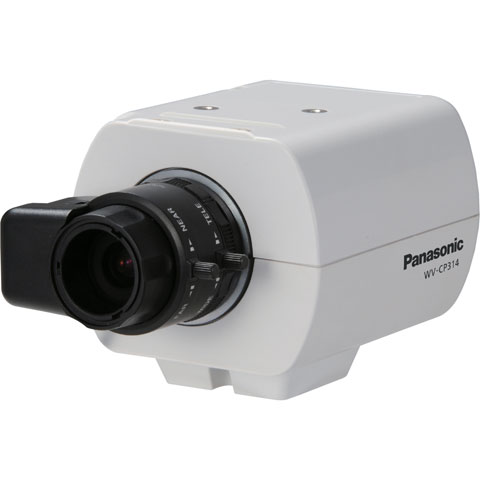

Panasonic WV-CP314 Security Camera

Part Number: WV-CP314
Model: Parts
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Night Vision
Yes
Image Sensor Type
CCD
Image Sensor Size
1/3"
White Balance Modes
AWCATW1ATW2

Product Description:

  Security Cameras, Panasonic, Surveillance Camera, Analog Connection, CCD, Day/Night Image Sensor, Box Camera, Indoor, 24 VAC/12 VDC, WV-CP314

Panasonic Parts Accessory Model Overview

Products and parts from Panasonic.
Panasonic WV-CP314 Security Camera Overview
The Panasonic WV-CP310 Fixed Day/Night Color Camera (IR Filter) is packed with advanced features such as adaptive black stretch, superior color reproduction, lens distortion compensation, and auto-image stabilization. Includes is an automatic IR cut filter that removes unwanted IR light delivering true-to-life color images. Even when used outdoors, the camera delivers blur-free images thanks to the auto-image stabilizer that eliminates the effect of vibration caused by wind. Also has high sensitivity with Day/Night (electrical) function, the camera's day & night switching and 16-axis matrix color compensation, you can be assured of excellent image reproduction with natural color balance. During nighttime surveillance, the camera's Adaptive Black Stretch feature transforms dark areas of the video footage into crisp images like those seen by the human eye.
Technical Information
Night Vision:
Yes
Display & Graphics
Image Sensor Type:
CCD
Image Sensor Size:
1/3"
White Balance Modes:
  • AWC
  • ATW1
  • ATW2
Maximum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Video
Video Signal Format:
  • NTSC
  • PAL
Lens
Digital Zoom:
2x
Exposure
Shortest Shutter Speed:
1/120000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Controls/Indicators
Status Indicators:

OSD

Interfaces/Ports
Analog Video Out:
Yes
Power Description
Maximum Power Consumption:
2.30 W
Physical Characteristics
Form Factor:
Box
Product Color:
Sail White
Height:
2.2"
Width:
2.8"
Depth:
4"
Weight (Approximate):
6.35 oz
Miscellaneous
Features:
  • Motion Detection
  • Digital Noise Reduction
  • Digital Image Stabilization
Package Contents:
  • WV-CP314 Surveillance Camera
  • Operating Instructions
  • CD-ROM
  • Power Cord
Certifications & Standards:
  • UL (UL60065)
  • FCC (Part 15 ClassA)
  • C-UL (E60065)
  • DOC (ICES-003)
Item Numbers
GTIN: 0641753127394, 0706919703871, 0885170064256
UPC: 641753127394, 706919703871, 885170064256
EAN: 0641753127394, 0706919703871, 0885170064256
UNSPSC: 46171610
