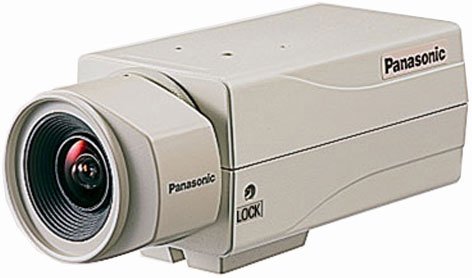

Panasonic WV-CP244 Security Camera

Part Number: WV-CP244
Model: WV-CP244 Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
White Balance Modes
Auto
Maximum Illumination
2 lux
Color Supported
Color

Product Description:

  Panasonic WV-CP244 DSP Surveillance Camera - Color - CCD - Cable
Explore all Panasonic WV-CP244 Series Security Cameras
Add to Quote
Panasonic WV-CP244 Security Camera
Panasonic WV-CP244 Security Camera
Panasonic WV-CP244 Security Camera Panasonic WV-CP244 Security Camera
Full specifications (PDF)

Panasonic WV-CP244 Series Security Camera Model Overview

The WV-CP244 Series DSP (Digital Signal Processing) cameras from Panasonic introduce various image adjustment functions such as Backlight Compensation (BLC), Aperture Correction, and Auto Tracing White Balance (ATW). This allows the cameras to produce natural looking images even in poor lighting conditions. The WV-CP244 Series provides a horizontal resolution of 480 lines and a signal-to-noise ratio of 50dbB. Minimum illumination is 2 lux (0.2 fx) when used with a F1.4 lens and 0.6 lux (0.06 fc) when used with a F0.75 lens. This camera is best suited for various CCTV surveillance applications.
Panasonic WV-CP244 Security Camera Overview

The WV-CP244 DSP (Digital Signal Processing) cameras feature high resolution and sensitivity, advanced image adjustment functions, and flexible systems configuration. By employing a 1/3-type CCD (380,000 pixels), the WV-CP244 achieves a horizontal resolution of 480 lines, and a signal-to-noise ratio of 50dB. Minimum illumination is 2 lux (0.2 fx) when used with a F1.4 lens and 0.6 lux (0.06 fc) when used with a F0.75 lens. The camera has various image adjustment functions such as Backlight Compensation (BLC), Aperture Correction, and Auto Tracing White Balance (ATW). This allows the cameras to produce natural looking images even in poor lighting conditions. The Panasonic WV-CP244 is ideal for CCTV surveillance applications.

Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CCD
White Balance Modes:
Auto
Maximum Illumination:
2 lux
Color Supported:
Color
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Power Description
Maximum Power Consumption:
3.30 W
Input Voltage:
24 V AC
Physical Characteristics
Height:
2.6"
Width:
2.6"
Depth:
4.8"
Weight (Approximate):
12.32 oz
Miscellaneous
Additional Information:
  • Picture Elements: 768 (H) x 494 (V) Pixels
  • Scanning Area: 4.92 (H) x 3.70 (V) mm (Equivalent to scanning area of 1/3" pick-up tube)
  • Synchronization: Internal, Line-locked or Multiplexed Vertical Drive (VD2), selectable
  • Scanning System: 2 : 1 interlace
  • Scanning: 525 lines / 60 fields / 30 frames
