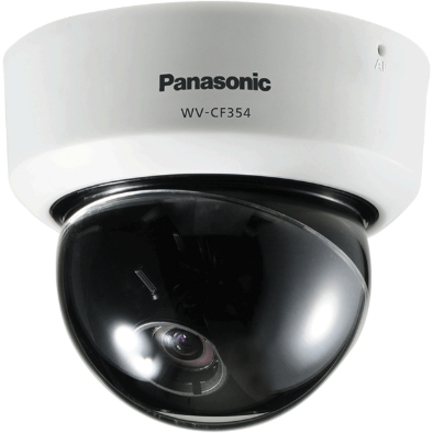

Panasonic WV-CF354 Security Camera

The Panasonic WV-CF354 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Panasonic - Panasonic WV-CF354 Surveillance Camera - Dome - 3.6x Optical - CCD
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.
Panasonic WV-CF354 Security Camera Overview
Day/Night Fixed Dome Analog Cameras with Auto Back Focus
  • High resolution: 650 TV lines
  • High sensitivity with Day/Night (electrical) function: 0.08 lx (Color), 0.05 lx (B/W)
  • ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area
  • ABF (Auto Back Focus) ensures easy installation
  • Various adjustment features including BLC (Back-Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
  • 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
  • 16 axis matrix color compensation function enables wider range of natural color adjustment
  • Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions
  • Electronic sensitivity enhancement: Auto (Up to 32 xs) / Manual (Up to 512 xs)
  • Electronic shutter from 1/100 to 1/10,000 sec
  • Over the coaxial cable data communication
  • Lens Distortion Compensation
  • On screen display menu
  • Monitor output and ELC mode for easier lens adjustment upon installation
  • 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
  • Various mounting options: Surface mount, embedded mount (with optional WV-Q174)
Technical Information
Night Vision:
Yes
Display & Graphics
Image Sensor Type:
CCD
White Balance Modes:
  • AWC
  • ATW1
  • ATW2
Maximum Illumination:
0.1 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
90° to -90°
Swivel:
-170° to 180°
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Minimum Aperture:
f/1.3
Maximum Aperture:
f/3
Optical Zoom:
3.6x
Digital Zoom:
2x
Focus Modes:
Automatic
Minimum Focus Distance:
11.81"
Exposure
Shortest Shutter Speed:
1/120000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Controls/Indicators
Status Indicators:

OSD

Power Description
Maximum Power Consumption:
2.10 W
Physical Characteristics
Form Factor:
Dome
Color:
Sail White
Height:
3.7"
Diameter:
4.3"
Weight (Approximate):
11.29 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
  • Digital Noise Reduction
  • Motion Detection
Indoor/Outdoor:
Indoor
Package Contents:
  • WV-CF354 Day/Night Fixed Dome Camera
  • Installation Guide
  • Installation Template Panel
  • CD-ROM
Compatibility:

NTSC

Certifications & Standards:
  • UL (UL60065)
  • FCC (Part 15 Class A)
  • C-UL (E60065)
  • DOC (ICES-003)
Security Features:

Password Lock

Item Numbers
GTIN: 0641753127325, 0644391435296, 0818242141074, 0885170064270
UPC: 641753127325, 644391435296, 818242141074, 885170064270
EAN: 0641753127325, 0644391435296, 0818242141074, 0885170064270
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Panasonic WV-CF354 Security Camera is also known as PAN-WVCF354
