Panasonic WV-CF344 Security Camera

Part Number: WV-CF344
Model:
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
Image Sensor Size
1/3"
White Balance Modes
Auto
Maximum Illumination
0.1 lux

Product Description:

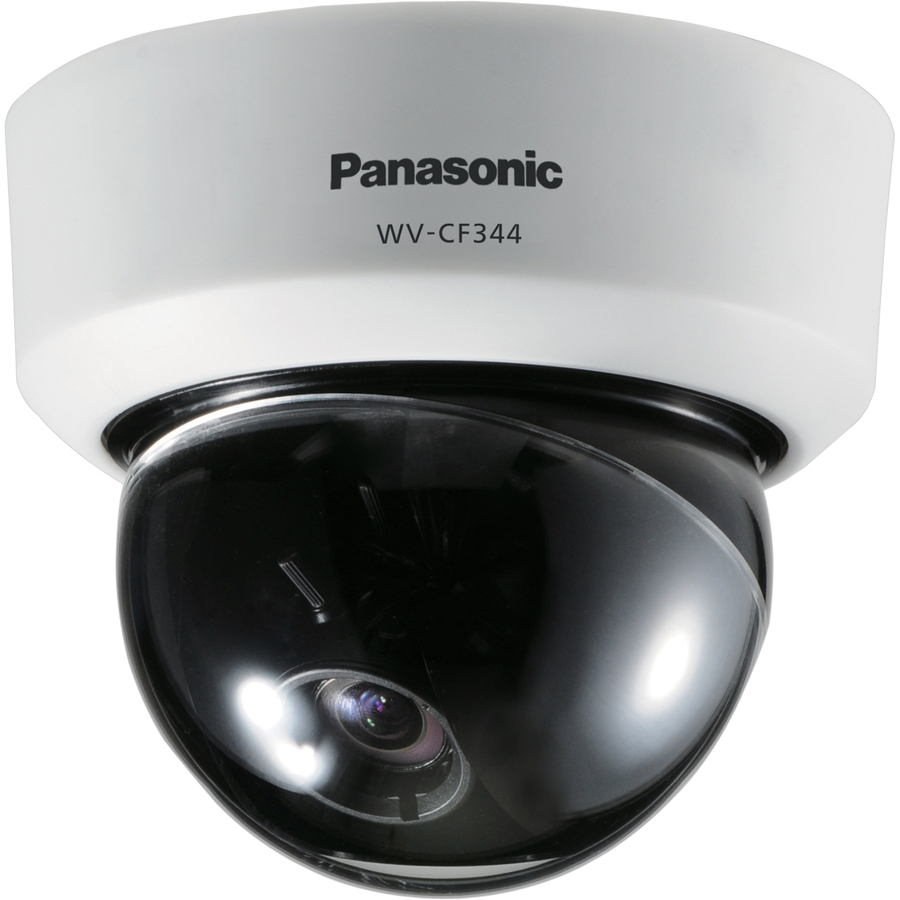

  Panasonic WV-CF344 Surveillance Camera - Dome - 3.6x Optical - CCD

Panasonic Parts Accessory Model Overview

Products and parts from Panasonic.
Display & Graphics
Image Sensor Type:
CCD
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Maximum Illumination:
0.1 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
90° to -90°
Swivel:
-170° to 180°
Field of View:
20.7° to 100.3°
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Minimum Aperture:
f/1.3
Maximum Aperture:
f/3.1
Optical Zoom:
3.6x
Minimum Focus Distance:
11.8 mil
Exposure
Shortest Shutter Speed:
1/120000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Controls/Indicators
Status Indicators:

OSD

Power Description
Maximum Power Consumption:
2.10 W
Physical Characteristics
Form Factor:
Dome
Color:
Sail White
Height:
3.7"
Diameter:
4.3"
Weight (Approximate):
11.29 oz
Miscellaneous
Features:
  • Motion Detection
  • Digital Noise Reduction
  • Digital Image Stabilization
Indoor/Outdoor:
Indoor
Package Contents:
  • Day/Night Fixed Dome Camera
  • Installation Guide
  • Installation Template Panel
  • CD-ROM
Compatibility:

NTSC

Certifications & Standards:
  • UL (UL60065)
  • FCC (Part 15 ClassA)
  • C-UL (E60065)
  • DOC (ICES-003)
Item Numbers
GTIN: 0641676457820, 0885170064263, 5311090213320
UPC: 641676457820, 885170064263
EAN: 0641676457820, 0885170064263, 5311090213320
UNSPSC: 46171610
