Full specifications (PDF)
Image Sensor Type:
CCD
Minimum Illumination:
0.1 lux
Color Supported:
Monochrome

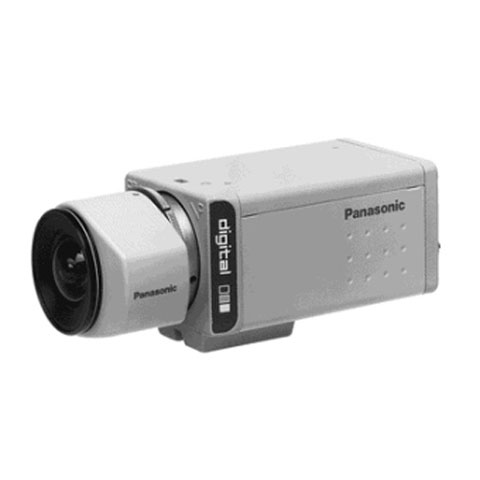

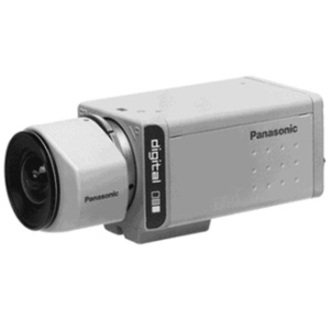

Panasonic WV-BP332 Security Camera Model Overview
Panasonic presents advanced CCTV technology to meet the demand of new and ever-changing applications. The 1/3" CCD Digital Signal Processing Black and White WV-BP330 Series Cameras deliver outstanding high-quality pictures as well as versatile digital functions and system integration capability. The WV-BP330 Series cameras incorporate a 1/3" interline transfer type CCD (380,000 pixels: effective) and achieve high sensitivity of 0.008 fc (0.08 lux) at F1.4, outstanding 570-line horizontal resolution and signal-to-noise ratio of 50 dB. With its advanced performance and expanded flexibility, the WV-BP330 series camera meet you specific needs with an affordable cost/performance ratio.
Panasonic WV-BP332 Security Camera Overview
Panasonic presents advanced CCTV technology to meet the demand of new and ever-changing applications. The 1/3" CCD Digital Signal Processing Black and White WV-BP332 Camera deliver outstanding high-quality pictures as well as versatile digital functions and system integration capability. With its advanced performance and expanded flexibility, the WV-BP332 camera meet you specific needs with an affordable cost/performance ratio.
Display & Graphics
Network & Communication
Connectivity Technology:
Wired
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
2.2"
Width:
2.6"
Depth:
4.2"
Weight (Approximate):
15.68 oz
Miscellaneous
Additional Information:
- A vertical digital 2H enhancement improves signal strength to provide a crisper image
- Knee circuit effectively expands the dynamic range when viewing brightly illuminated objects
- Outstanding 50 dB signal-to-noise ratio
- An advanced Electronic Light Control enables the use of inexpensive fixed iris lenses
- Gen-lock capability for system expandability, and other synchronization modes
Compatibility:
NTSC
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Panasonic WV-BP332 Security Camera is also known as
PAN-WVBP332
