System Components:
Digital Video Recorder
Panasonic WJ-RT416V/1000V Surveillance DVR
Part Number:
WJ-RT416V/1000V
Model:
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.

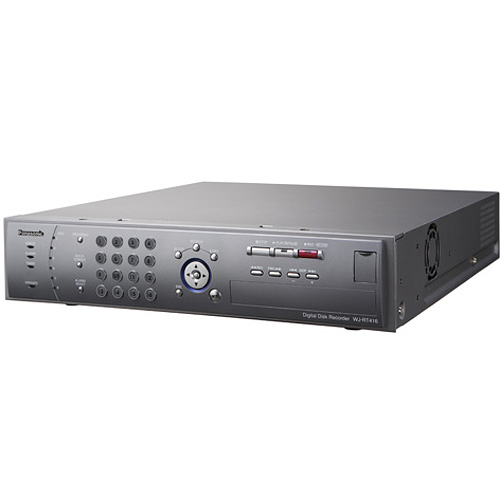

Panasonic WJ-RT416V/1000V Surveillance DVR Overview
The Panasonic WJ-RT416V is a 16 Channel Real-Time MPEG-4 Digital Disk Recorder Supporting 480ips (NTSC). Equipped with 8 Dual Core Encoders, all 16 cameras can be recorded at 30 ips (NTSC).
Technical Information
Storage
Hard Drive Capacity:
1 TB
Video
Video Formats:
MPEG-4
Video Signal Format:
NTSC
Maximum Resolution:
704 x 240
Maximum Frame Rate:
480 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
Network (RJ-45):
Yes
Composite Video In:
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
7
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
3.5"
Width:
16.9"
Depth:
18.1"
Weight (Approximate):
26.49 lb
Miscellaneous
Package Contents:
- WJ-RT416V 16-Channel Digital Video Recorder
- 2 x Rack Mounting Brackets
- 8 x Fixing Screw for Rack Mounting Brackets
- HDD Mounting Screws, Sleeves, Dampers
- Installation Guide
- Power Cable
- CD-ROM
Additional Information:
- Built-in DVD Burner
- MPEG-4: High quality and high compression technology for economical recording
- Various Recording Modes: Manual, Timer, Event (Pre/Post)
- Various Display Modes: 4/6/9/16 split screen display (Live), Quad (Playback)
- Synchronized audio recording is possible for 16 channels
- HDD Safety Mode to protect HDD's during installation
- Three user levers: Manager, Operator and Viewer. Camera partitioning setting can be applied to each user level
Item Numbers
UNSPSC:
46171621
Get help from a Barcoding Expert!
The Panasonic WJ-RT416V/1000V Surveillance DVR is also known as
PAN-WJRT416V1000V
