Full specifications (PDF)
System Components:
Digital Video Recorder
Panasonic WJ-RT416/1000 Surveillance DVR
Part Number:
WJ-RT416/1000
Model:
WJ-RT416

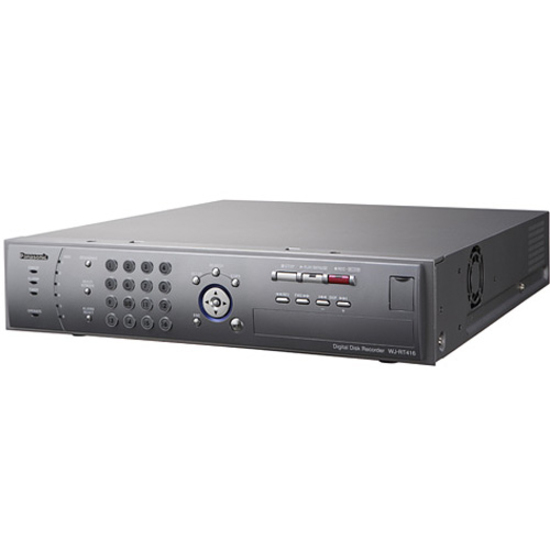

Panasonic WJ-RT416 Surveillance DVR Model Overview
Panasonic introduces the WJ-RT416 high resolution real-time digital video recorder. With a otal recording rate of 480 ips, the WJ-RT416 offers real-time recording capability in MPEG-4 format. All 16 channels can record 30 ips at a high quality 704 x 240 image with superior clarity and detail.
Panasonic WJ-RT416/1000 Surveillance DVR Overview
Panasonic introduces the WJ-RT416 high resolution real-time digital video recorder. With a total recording rate of 480 ips, the WJ-RT416 offers real-time recording capability in MPEG-4 format. All 16 channels can record 30 ips at a high quality 704 x 240 image with superior clarity and detail.
Technical Information
Storage
Hard Drive Capacity:
1 TB
Video
Video Formats:
MPEG-4
Video Signal Format:
NTSC
Maximum Resolution:
704 x 240
Maximum Frame Rate:
480 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
Network (RJ-45):
Yes
Composite Video In:
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
7
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
3.5"
Width:
16.9"
Depth:
18.1"
Weight (Approximate):
26.49 lb
Miscellaneous
Package Contents:
- WJ-RT416 16-Channel Digital Video Recorder
- 2 x Rack Mounting Brackets
- 8 x Fixing Screw for Rack Mounting Brackets
- HDD Mounting Screws, Sleeves, Dampers
- Installation Guide
- Power Cable
- CD-ROM
Additional Information:
- Full Network Capability
- Supports multiplexed video and control data over the coax
- Various recording modes: Manual, Timer, Event (Pre/Post)
- Various display modes: 4/6/9/16 split screen display (Live)
- Synchronized audio recording for 16 channels
- Alarm notification via e-mail
- HDD Safety Mode to protect HDDs during installation
- Up to four playback streams can be sent to the network
- Selectable Unicast/Multicast for efficient network utilization
Item Numbers
UNSPSC:
46171621
Get help from a Barcoding Expert!
The Panasonic WJ-RT416/1000 Surveillance DVR is also known as
PAN-WJRT4161000
