Full specifications (PDF)
AI-powered:
Yes
Panasonic FZ-40EAAAXBM Rugged Laptop
Part Number:
FZ-40EAAAXBM
Model:
Toughbook 40

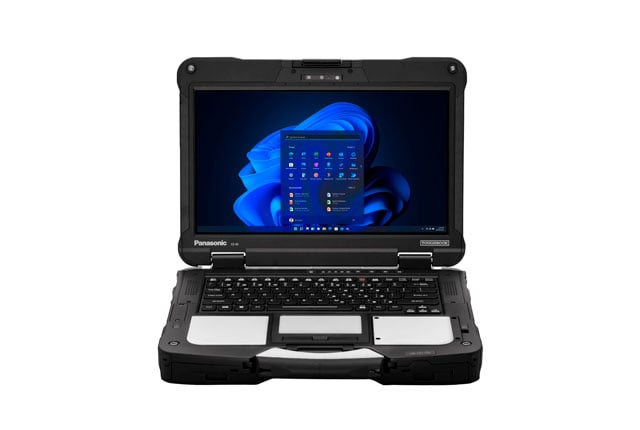

Panasonic Toughbook 40 Rugged Laptop Model Overview
The Panasonic TOUGHBOOK 40 is a benchmark in rugged technology, designed for professionals working in harsh environments. With an innovative modular design that includes user-removable XPAK expansion packs, it offers exceptional customization to meet diverse operational needs. Built with a sturdy magnesium alloy chassis, this device meets MIL-STD-810H and IP66 standards, ensuring reliability against drops, shocks, and extreme weather conditions. Equipped with cutting-edge connectivity options, including a 5G modem for ultra-fast internet and top-notch audio-visual features, the TOUGHBOOK 40 excels in performance and efficiency.
Key Features:
- Fully rugged design with MIL-STD-810H and IP66 certifications
- User-removable XPAK's for tailored configurations and upgrades
- Fastest cellular connectivity with options up to 5.5Gbps 5G modem
- 14" FHD display with capacitive touch and anti-reflective treatment
- Integrated 95db speakers and 5MP infrared webcam with privacy cover
Specifications:
- CPU: Intel® Core™ i5-114567 vPro® processor (up to 4.4GHz)
- Memory: Up to 64GB DDR4 RAM, user-upgradeable
- Storage Options: Up to 3TB NVMe SSD, optional encryption
- Display: 14.0" FHD (1920 x 1080), 1200 nits brightness
- Audio: Integrated tetra-array microphone, 95db speakers
- Battery Life: Up to 18 hours, hot-swappable with 2nd battery
- Weight: 7.4 lbs; Dimensions: 11.9" x 13.9" x 2.1"
Panasonic FZ-40EAAAXBM Rugged Laptop Overview
Purpose-built, rugged laptops for your extraordinary work.
Your work is extraordinary, and your laptop needs to match you step for step. That's why we build rugged TOUGHBOOK® laptops that are trusted and used by hardworking people in the toughest environments anywhere.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 5
Processor Model:
135H
Processor Core:
Tetradeca-core (14 Core)
Maximum Turbo Speed:
4.60 GHz
NPU Name:
AI Boost
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Supported System Memory:
64 GB
System Memory Technology:
DDR5 SDRAM
System Memory Speed:
5600 MHz
System Memory Form Factor:
SODIMM
Installed Slot Memory:
16 GB
Total Number of Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
14"
Display Screen Type:
LCD
Display Screen Technology:
In-plane Switching (IPS) Technology
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Brightness:
1200 Nit
Touchscreen:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
Ethernet Technology:
Gigabit Ethernet
Bluetooth:
Yes
Built-in Devices
Camera Privacy Shutter:
Yes
Front Camera/Webcam:
Yes
Front Camera/Webcam Resolution:
5 Megapixel
Infrared Camera:
Yes
Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
1
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- Optional USB-C 5Gbps 0.9A
- Optional USB-A x2 5Gbps 0.9A6
- Optional VGA
- Optional 2nd Ethernet 1Gbps RJ-45
- Optional Fischer LAN with metal cap
- Optional Serial (True) D-sub 9-pin
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Input Devices
Keyboard Backlight:
Yes
Battery Information
Maximum Battery Run Time:
12 Hours
Power Description
USB Power Delivery Support:
Yes
Physical Characteristics
Cover Material:
Magnesium Alloy
Rugged:
Yes
Height:
2.10"
Width:
13.9"
Depth:
11.9"
Weight (Approximate):
7.40 lb
Miscellaneous
Package Contents:
- TOUGHBOOK FZ-40EAAAXBM Notebook
- Standard Battery
- AC Adapter
- Cleaning Cloth
- Stylus holder
- Stylus
Charger Included:
Yes
Features:
- Anti-reflection
- Water Resistant
Windows Hello Compatible:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year limited warranty, parts and labor
Item Numbers
GTIN:
0885170435650
UPC:
885170435650
EAN:
0885170435650
UNSPSC:
43211503
Recommended Accessories
Category
- Batteries (2)
- Carrying and Protective Accessories (2)
- Computer Accessories (2)
- Computer Components (43)
- Computer Docking Stations (1)
- Docks and Cradles (26)
- Keyboards and Front Panels (2)
- Screen Protector (1)
- Stylus (1)
Recommended Accessories for Model: Panasonic FZ-40EAAAXBM Rugged Laptop
Top Batteries Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VZSU1XUIS BatteryBatteries, Panasonic, Pre-installed Standard Battery, for FZ-40, Can Be Used as Replacement for the Main Battery or Optional 2nd Battery in Right Expansion AreaItem on backorder — chat for lead time$353.15 -
Panasonic FZ-VZSU1XU BatteryBatteries, Panasonic, Standard Battery, for FZ-40, Can Be Used as Replacement for the Main Battery or Optional 2nd Battery in Right Expansion AreaIn Stock$274.83
Top Carrying and Protective Accessories Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VNS401U Carrying and Protective AccessoriesCarrying and Protective Accessories, Panasonic, Shoulder Strap for FZ-40, Includes 2 D-RingsItem on backorder — chat for lead time$100.58 -
Panasonic FZ-VPF39U Carrying and Protective AccessoriesCarrying and Protective Accessories, Panasonic, 14.0" Screen Protector, for FZ-40, Features Anti-Reflective (AR) Screen TreatmentItem on backorder — chat for lead time$94.54
Top Computer Accessories Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VKB40207W AccessoryKeyboards & Front Panels, Panasonic, Rubber Keyboard (US), for FZ-40, Features Color-Selectable Backlight with 4 Levels of BrightnessItem on backorder — chat for lead time$564.42 -
Panasonic FZ-VKB40207WIS AccessoryKeyboards & Front Panels, Panasonic, Pre-installed Rubber Keyboard (US), for FZ-40, Features Color-Selectable Backlight with 4 Levels of BrightnessItem on backorder — chat for lead time$613.17
Top Computer Components Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VBR401M AccessoryComputer Components, Panasonic, Barcode xPAK (1D/2D capable), for FZ-40 Left Expansion Area, Features Trigger ButtonItem on backorder — chat for lead time$1,274.51 -
Panasonic FZ-VFP401U AccessoryComputer Components, Panasonic, Fingerprint Reader (MSFT SC-PC) xPAK, for FZ-40 Palm Rest Expansion Area, Microsoft Secured-Core PC Compatible, Compatible with Fingerprints Stored on Device OnlyItem on backorder — chat for lead time$176.83 -
Panasonic FZ-VSC402U AccessoryComputer Components, Panasonic, Insertable Smartcard xPAK, for FZ-40 Left Expansion AreaItem on backorder — chat for lead time$227.59
Top Computer Docking Stations Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VEB401U Computer Docking StationComputer Docking Stations, Panasonic, Desktop Dock for FZ-40, USB-A (3), USB-C (3), HDMI, Serial, LAN (2), Kensington Lock, LED, Power Button. Includes One Front USB-C, Two Video Out (HDMI + One USB-C), Rear USB-Cs are 10GB/s and 1.5AIn Stock$653.39
Top Docks and Cradles Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic GJ-40TLVDF4L Docks and CradlesDocks & Cradles, Panasonic, Gamber-Johnson Trimline Full Port Replication Laptop Vehicle Docking Station (Quad Pass) With Lind Power Adapter, For Panasonic Toughbook 40 Laptop Computer, USB-A 2.0 (2), USB-A 3.2, USB-C 3.2 (2), USB-C 2.0, Serial, Ethernet (2), HDMI, Power Port, External Antenna Switch, Vesa 75 Mounting PatternItem on backorder — chat for lead time$3,047.00
-
Panasonic GJ-40TLVDL4 Docks and CradlesDocks & Cradles, Panasonic, Gamber-Johnson Trimline Lite Port Replication Laptop Vehicle Docking Station (Quad Pass), For Panasonic Toughbook 40 Laptop Computer, USB-A 2.0 (2), USB-A 3.2, USB-C 3.2 (2), USB-C 2.0, Serial, Ethernet (2), Power Port, External Antenna Switch, Vesa 75 Mounting PatternItem on backorder — chat for lead time$2,389.06
-
Panasonic GJ-40TLVDF0 Docks and CradlesDocks & Cradles, Panasonic, Gamber-Johnson Trimline Full Port Replication Laptop Vehicle Docking Station (No Pass), For Panasonic Toughbook 40 Laptop Computer, USB-A 2.0 (2), USB-A 3.2, USB-C 3.2 (2), USB-C 2.0, Serial, Ethernet (2), HDMI, Power Port, External Antenna Switch, Vesa 75 Mounting PatternItem on backorder — chat for lead time$2,278.40
Top Keyboards and Front Panels Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VKB40207W AccessoryKeyboards & Front Panels, Panasonic, Rubber Keyboard (US), for FZ-40, Features Color-Selectable Backlight with 4 Levels of BrightnessItem on backorder — chat for lead time$564.42
-
Panasonic FZ-VKB40207WIS AccessoryKeyboards & Front Panels, Panasonic, Pre-installed Rubber Keyboard (US), for FZ-40, Features Color-Selectable Backlight with 4 Levels of BrightnessItem on backorder — chat for lead time$613.17
Top Screen Protector Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VPF39U Carrying and Protective AccessoriesCarrying and Protective Accessories, Panasonic, 14.0" Screen Protector, for FZ-40, Features Anti-Reflective (AR) Screen TreatmentItem on backorder — chat for lead time$94.54
Top Stylus Purchased With Panasonic FZ-40EAAAXBM
-
Panasonic FZ-VNP401U StylusStylus, Panasonic, Stylus Pen, for FZ-40Item on backorder — chat for lead time$26.06
Frequently Asked Questions
What rugged certifications does the Panasonic TOUGHBOOK 40 have?
The TOUGHBOOK 40 meets MIL-STD-810H and IP66 standards, ensuring reliability against drops, shocks, and extreme weather conditions. These certifications make it suitable for deployment in harsh and demanding work environments where durability is critical.
Can I upgrade the memory and storage on the TOUGHBOOK 40?
Yes, the TOUGHBOOK 40 supports user-upgradeable memory up to 64GB DDR4 RAM and storage options up to 3TB NVMe SSD with optional encryption. This flexibility allows you to customize the laptop to your specific operational needs without requiring service visits.
What are the connectivity options available on the TOUGHBOOK 40?
The TOUGHBOOK 40 offers cutting-edge connectivity including 5G modem options with speeds up to 5.5Gbps, Intel Wi-Fi 7, Bluetooth, and dual SIM capability. These options ensure ultra-fast internet and reliable connectivity in the field.
What is the display size and brightness of the TOUGHBOOK 40?
The TOUGHBOOK 40 features a 14.0-inch FHD display (1920 x 1080) with 1200 nits brightness and capacitive touch with anti-reflective treatment. The high brightness level ensures visibility even in bright outdoor conditions, and the gloved multi-touch capability enables operation with protective gear.
How long does the battery last on the TOUGHBOOK 40?
The TOUGHBOOK 40 delivers up to 18 hours of battery life and features hot-swappable battery capability, allowing you to extend operation without downtime. This extended battery performance is ideal for field operations where charging opportunities are limited.
What audio and camera features does the TOUGHBOOK 40 include?
The TOUGHBOOK 40 is equipped with integrated 95dB speakers, a tetra-array microphone for clear audio capture, and a 5MP infrared webcam with privacy cover. These features support professional-grade audio-visual communication and security in demanding environments.
