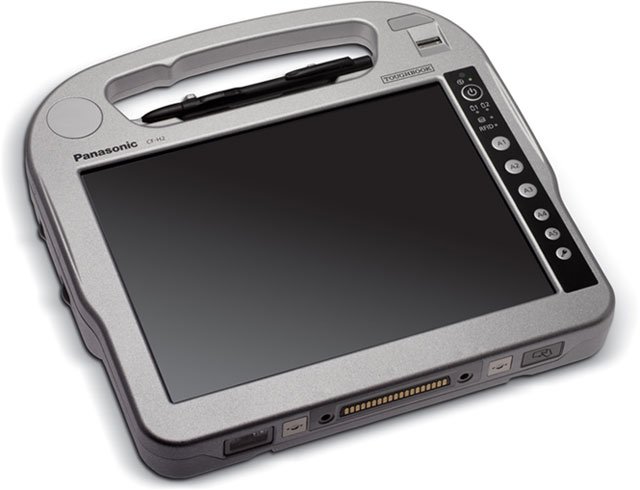

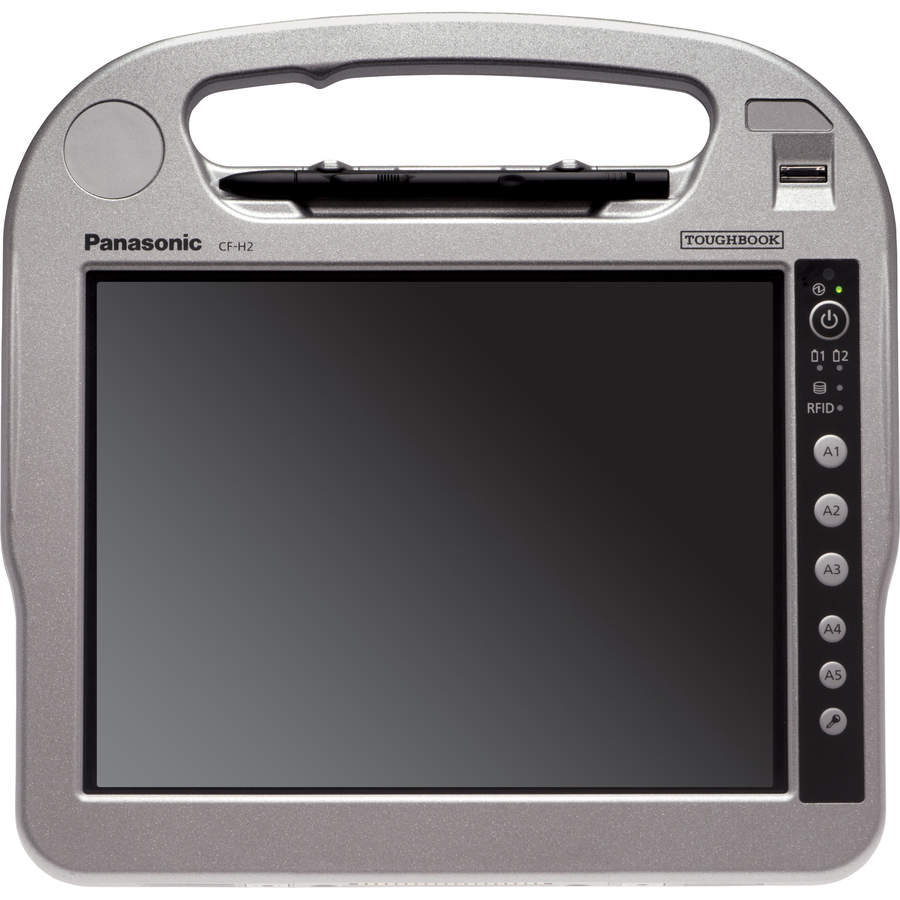

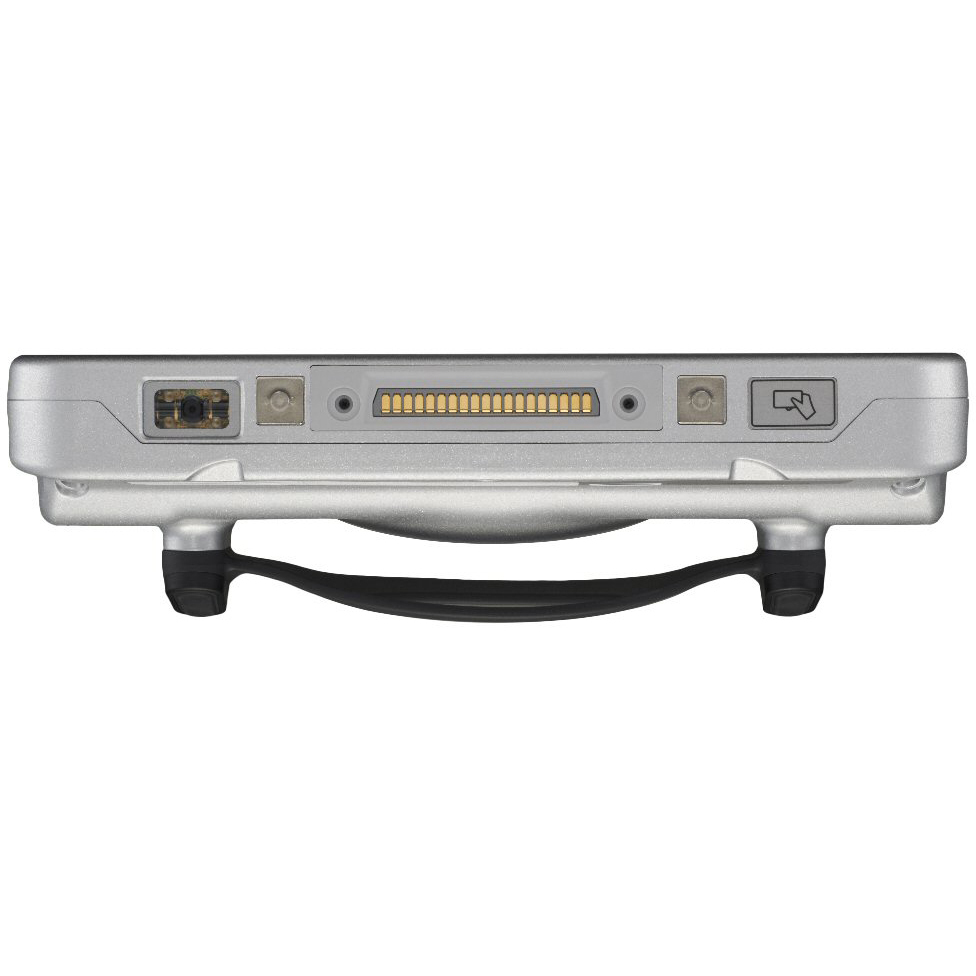

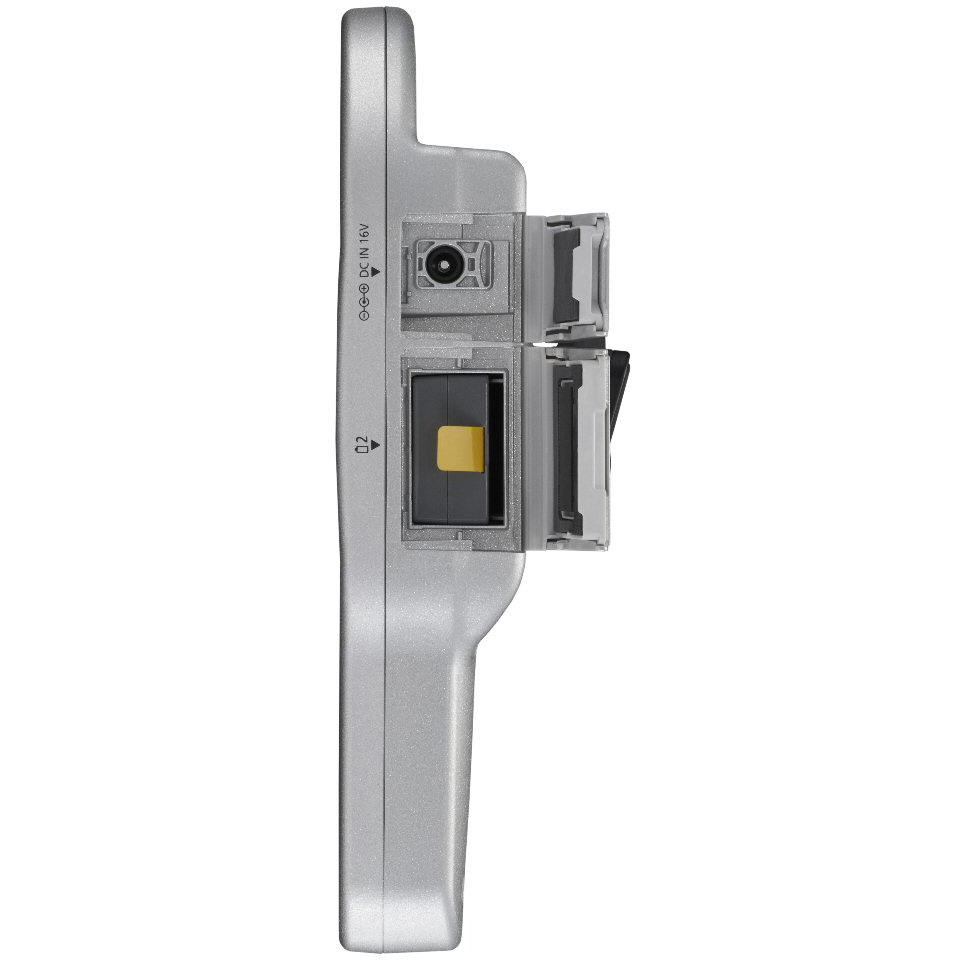

Panasonic CF-H2FSAAX1M Tablet

Part Number: CF-H2FSAAX1M
Model: Toughbook H2
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Manufacturer
Intel
Processor Type
Core i5
Processor Generation
3rd Gen
Processor Model
i5-3427U

Product Description:

  Panasonic Toughbook H2 CF-H2FSAAX1M Rugged Tablet - 10.1" XGA - 4 GB RAM - Windows 7 Professional - Intel QM67 Express SoC - Intel Core i5 3rd Gen i5-3427U Dual-core (2 Core) 1.80 GHz - 1024 x 768 - CircuLumin Display - 6.50 Hour Maximum Battery Run Time
Explore all Panasonic Toughbook H2 Tablets
Add to Quote
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet
Panasonic CF-H2FSAAX1M Tablet Panasonic CF-H2FSAAX1M Tablet Panasonic CF-H2FSAAX1M Tablet Panasonic CF-H2FSAAX1M Tablet Panasonic CF-H2FSAAX1M Tablet Panasonic CF-H2FSAAX1M Tablet Panasonic CF-H2FSAAX1M Tablet
Full specifications (PDF)

Panasonic Toughbook H2 Tablet Model Overview

The new rugged Panasonic Toughbook H2 handheld tablet PC runs a full OS (Windows 7 Professional) and is the ultimate productivity tool for mobile workers. With superior ergonomics, a brilliant 10.1" sunlight-viewable LED screen capable of up to 6000 nit in direct sun and sealed all-weather design, the Toughbook H2 lets you work virtually anywhere. Designed with a fast Intel Core i5 vPro processor, magnesium alloy chassis encased in polycarbonate, the IP65 and MIL-STD-810G certified Toughbook H2 delivers a complete range of embedded wireless features including Wi-Fi, Bluetooth and optional 4G LTE (Fall 2011) or Gobi2000 3G mobile broadband. Add to that hot-swappable twin batteries for maximum uptime, ports such as USB, serial and ethernet, optional integrated barcode and SmartCard readers, and you've got a handheld tablet PC that is unmatched in the field.
Panasonic CF-H2FSAAX1M Tablet Overview

THE INDUSTRY'S MOST RUGGED HANDHELD TABLET PC.

The new rugged Panasonic Toughbook® H2 handheld tablet PC is the ultimate productivity tool for mobile workers. With superior ergonomics, a brilliant 10.1" sunlight-viewable LED screen capable of up to 6000 nit in direct sun and sealed all-weather design, the H2 lets you work virtually anywhere. Designed with a magnesium alloy chassis encased in polycarbonate, the IP65 and MIL-STD-810G certified Toughbook H2 delivers a complete range of integrated wireless features including Wi-Fi, Bluetooth® and optional embedded 4G LTE (Fall 2011) or Gobi™2000 3G mobile broadband. Add to that fast charging hot-swappable twin batteries for maximum uptime, optional integrated GPS and SmartCard reader, and you've got a handheld tablet PC that is unmatched in the field.

Full specifications (PDF)
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
3rd Gen
Processor Model:
i5-3427U
Processor Speed:
1.80 GHz
Processor Core:
Dual-core (2 Core)
Cache:
3 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
QM67 Express
Memory
Standard Memory:
4 GB
Maximum Memory Supported:
8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
DDR3-1333/PC3-10600
Storage
Hard Drive Capacity:
500 GB
Display & Graphics
Screen Size:
10.1"
Display Screen Type:
Active Matrix TFT Color LCD
Display Screen Technology:
CircuLumin
Aspect Ratio:
4:3
Screen Mode:
XGA
Screen Resolution:
1024 x 768
Backlight Technology:
LED
Touchscreen:
Yes
Digitizer:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
HD 4000
Graphics Memory Technology:
DDR3 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Manufacturer:
Intel
Wireless LAN Model:
Centrino Advanced-N 6205
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 2.1
Interfaces/Ports
Number of USB 2.0 Ports:
1
Input Devices
Keyboard Type:
Touchscreen Keyboard
Pointing Device Type:
Stylus
Built-in Devices
Sensor Type:
Ambient Light Sensor
Speakers:
Yes
Operating System
Operating System Platform:
Windows
Operating System:
Windows 7 Professional
Software
Software Included:
  • Recovery Partition
  • Panasonic Utilities (including Dashboard and Cleaning Reminder Tool)
Battery Information
Number of Batteries Supported:
2
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3400 mAh
Maximum Battery Run Time:
6.50 Hours
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Rugged:
Yes
Form Factor:
Slate
Height:
2.3"
Width:
10.8"
Depth:
10.6"
Weight (Approximate):
3.50 lb
Miscellaneous
Package Contents:
  • TOUGHBOOK CF-H2FSAAX1M Tablet PC
  • Twin Hot-Swappable Li-Ion Batteries
  • AC Adapter
  • Stylus
Certifications & Standards:
  • ACPI
  • MIL-STD-810G
  • IP65 Certified
  • Section 508 Standards

IT Equipment Safety (EN:EU, UL:US):

  • EN/IEC 60950-1
  • UL 60950-1

Medical Electrical Equipment Safety (EU):

  • EN/IEC 60601-1 (with battery operation)

Medical Electrical Equipment Safety (Canada):

  • CAN/CSA-C22.2 No.601.1-M90

IT Equipment EMI (US):

  • FCC CFR 47 P.15 Sub B-Class B

IT Equipment EMI (EU):

  • EN 55022/CISPR 22-Class B

IT Equipment EMS (EU):

  • EN 55024

Industrial EMI (EU):

  • EN 55011/CISPR 11-Class B

Radio (US):

  • FCC CFR 47 P.15 Sub C

Radio (Canada):

  • RSS-210

SAR (US):

  • FCC CFR 47 P.2
Security Features:
  • Trusted Platform Module (TPM) Security Chip v.1.2
  • Computrace Theft Protection Agent in BIOS
  • Intel Anti-Theft Technology

Password Security:

  • Supervisor
  • User
  • Hard Disk Lock
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0885170099944
UPC: 885170099944
EAN: 0885170099944
UNSPSC: 43211509
