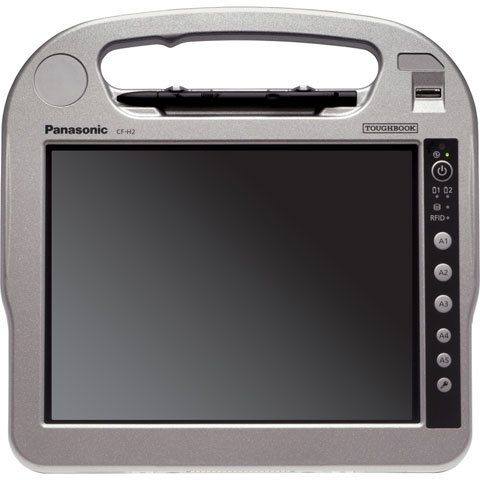

Panasonic CF-H2AGFHZ1M POS Touch Terminal

Part Number: CF-H2AGFHZ1M
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Manufacturer
Intel
Processor Type
Core i5
Processor Generation
2nd Gen
Processor Model
i5-2557M

Product Description:

  Panasonic Toughbook H2 CF-H2AGFHZ1M Rugged Tablet - 10.1" XGA - 4 GB RAM - Windows 7 Professional - Intel QM67 Express SoC - Intel Core i5 2nd Gen i5-2557M Dual-core (2 Core) 1.70 GHz - 1024 x 768 - CircuLumin Display - 3 Megapixel Front Camera - 6.50 Hour Maximum Battery Run Time
Explore all Panasonic Parts Accessories
Add to Quote
Panasonic CF-H2AGFHZ1M POS Touch Terminal
Panasonic CF-H2AGFHZ1M POS Touch Terminal
Panasonic CF-H2AGFHZ1M POS Touch Terminal
Panasonic CF-H2AGFHZ1M POS Touch Terminal
Panasonic CF-H2AGFHZ1M POS Touch Terminal
Panasonic CF-H2AGFHZ1M POS Touch Terminal
Panasonic CF-H2AGFHZ1M POS Touch Terminal Panasonic CF-H2AGFHZ1M POS Touch Terminal Panasonic CF-H2AGFHZ1M POS Touch Terminal Panasonic CF-H2AGFHZ1M POS Touch Terminal Panasonic CF-H2AGFHZ1M POS Touch Terminal Panasonic CF-H2AGFHZ1M POS Touch Terminal

Panasonic Parts Accessory Model Overview

Products and parts from Panasonic.
Panasonic CF-H2AGFHZ1M POS Touch Terminal Overview

THE INDUSTRY'S MOST RUGGED HANDHELD TABLET PC.

The rugged Panasonic Toughbook H2 handheld tablet PC is the ultimate productivity tool for mobile workers. With superior ergonomics, a brilliant 10.1" sunlight-viewable LED screen capable of up to 6000 nit in direct sun and sealed all-weather design, the Toughbook H2 lets you work virtually anywhere. Designed with a magnesium alloy chassis encased in polycarbonate, the IP65 and MIL-STD-810G certified Toughbook H2 delivers a complete range of integrated wireless features including Wi-Fi, Bluetooth and optional embedded 4G LTE or 3G Gobi mobile broadband. Add to that fast charging hot-swappable twin batteries for maximum uptime, optional integrated GPS and SmartCard reader, and you've got a handheld tablet PC that is unmatched in the field.

Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
2nd Gen
Processor Model:
i5-2557M
Processor Speed:
1.70 GHz
Processor Core:
Dual-core (2 Core)
Cache:
3 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
QM67 Express
Memory
Standard Memory:
4 GB
Maximum Memory Supported:
8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
DDR3-1333/PC3-10600
Storage
Hard Drive Capacity:
320 GB
Hard Drive RPM:
7200
Display & Graphics
Screen Size:
10.1"
Display Screen Type:
Active Matrix TFT Color LCD
Display Screen Technology:
CircuLumin
Aspect Ratio:
4:3
Screen Mode:
XGA
Screen Resolution:
1024 x 768
Backlight Technology:
LED
Touchscreen:
Yes
Digitizer:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
HD 3000
Graphics Memory Technology:
DDR3 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Manufacturer:
Intel
Wireless LAN Model:
Centrino Advanced-N 6205
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 2.1
Interfaces/Ports
Number of USB 2.0 Ports:
1
Input Devices
Keyboard Type:
Touchscreen Keyboard
Pointing Device Type:
Stylus
Built-in Devices
Sensor Type:
Ambient Light Sensor
Front Camera:
Yes
Front Camera Resolution:
3 Megapixel
Focus Modes:
Auto-focus
Speakers:
Yes
Operating System
Operating System Platform:
Windows
Operating System:
Windows 7 Professional
Software
Software Included:

Panasonic Utilities (Including Dashboard and Cleaning Reminder Tool)

Battery Information
Number of Batteries Supported:
2
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3400 mAh
Maximum Battery Run Time:
6.50 Hours
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Rugged:
Yes
Form Factor:
Slate
Height:
2.3"
Width:
10.8"
Depth:
10.6"
Weight (Approximate):
3.50 lb
Miscellaneous
Package Contents:
  • TOUGHBOOK CF-H2AGFHZ1M Tablet PC
  • Twin Hot-Swappable Li-Ion Battery Packs
  • AC Adapter
  • Stylus
  • Recovery DVD
Certifications & Standards:
  • ACPI
  • MIL-STD-810G
  • IP65 Certified
  • Section 508 Standards

IT Equipment Safety (EN:EU, UL:US):

  • EN/IEC 60950-1
  • UL 60950-1

Medical Electrical Equipment Safety (EU):

  • EN/IEC 60601-1 (with battery operation)

Medical Electrical Equipment Safety (Canada):

  • CAN/CSA-C22.2 No.601.1-M90

IT Equipment EMI (US):

  • FCC CFR 47 P.15 Sub B-Class B

IT Equipment EMI (EU):

  • EN 55022/CISPR 22-Class B

IT Equipment EMS (EU):

  • EN 55024

Industrial EMI (EU):

  • EN 55011/CISPR 11-Class B

Radio (US):

  • FCC CFR 47 P.15 Sub C

Radio (Canada):

  • RSS-210

SAR (US):

  • FCC CFR 47 P.2
Security Features:
  • 2D Barcode Reader (Reads 1D and 2D)
  • Trusted Platform Module (TPM) Security Chip v.1.2
  • Computrace Theft Protection Agent in BIOS
  • Intel Anti-Theft Technology

Password Security:

  • Supervisor
  • User
  • Hard Disk Lock
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • EPEAT Gold
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0885170085336
UPC: 885170085336
EAN: 0885170085336
UNSPSC: 43211509
