Panasonic CF-H1CEKTG1M Tablet

Part Number: CF-H1CEKTG1M

Model: Toughbook H1 Health

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Processor Manufacturer

Intel

Processor Type

Atom

Processor Model

Z540

Processor Speed

1.86 GHz

Product Description:

Panasonic Toughbook H1 CF-H1CEKTG1M Rugged Tablet - 10.4" XGA - 2 GB RAM - Windows 7 - Intel Atom Z540 Single-core (1 Core) 1.86 GHz - 1024 x 768 - CDMA2000 (1xEV-DO), HSPA - 6 Hour Maximum Battery Run Time

Explore all Panasonic Toughbook H1 Health Tablets

Add to Quote

Overview

Full specifications (PDF)

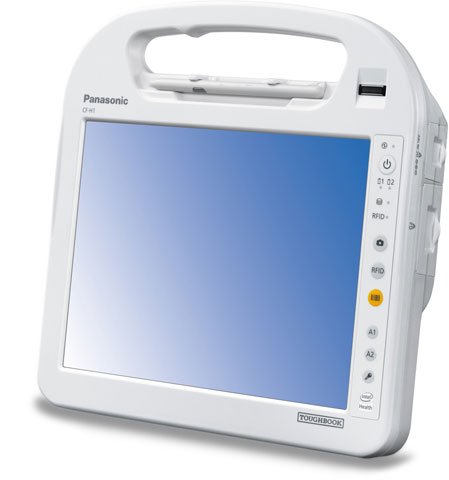

Panasonic Toughbook H1 Health Tablet Model Overview

Based on Intel's reference design, Panasonic's new Toughbook H1 mobile clinical assistant (MCA), features a bright 10.4" dual-touch display that offers both tablet and touchscreen functionality. Weighing only 3.4 lbs, with hot swappable twin batteries, this mobile computing platform features an 80GB shock-mounted hard drive, the latest Intel mobile processor technology, embedded wireless capabilities, and is designed to meet the specific needs of healthcare professionals.

Panasonic CF-H1CEKTG1M Tablet Overview

In your world, getting the job done means being on the move. The new rugged Panasonic Toughbook H1 Field handheld tablet PC is the ultimate productivity tool for mobile workers. With superior ergonomics, a 10.4" sunlight-viewable screen and sealed all-weather design, the H1 Field lets you work virtually anywhere. Designed with a magnesium alloy internal frame, the IP65 and MIL-STD-810G1 certified Toughbook H1 Field delivers a complete range of integrated wireless features including Wi-Fi, Bluetooth and optional Gobi mobile broadband. Add to that fast charging hot-swappable twin batteries for maximum uptime, optional integrated GPS and SmartCard reader, and you've got a handheld tablet PC that is unmatched in the field.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Atom

Processor Model:

Z540

Processor Speed:

1.86 GHz

Processor Core:

Single-core (1 Core)

Cache:

512 KB

Bus Speed:

533 MHz

64-bit Processing:

Yes

Hyper-Threading:

Yes

Memory

Standard Memory:

2 GB

Memory Technology:

DDR2 SDRAM

Storage

Hard Drive Capacity:

80 GB

Display & Graphics

Screen Size:

10.4"

Display Screen Type:

Active Matrix TFT Color LCD

Aspect Ratio:

4:3

Screen Mode:

XGA

Screen Resolution:

1024 x 768

Touchscreen:

Yes

Digitizer:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

Graphics Media Accelerator 500

Graphics Memory Capacity:

256 MB

Graphics Memory Technology:

DDR2 SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

WWAN Supported:

Yes

Gobi Supported:

Yes

Cellular Data Connectivity Technology:

CDMA2000 (1xEV-DO)
HSPA

GPS:

Yes

Wireless LAN:

Yes

Wireless LAN Manufacturer:

Intel

Wireless LAN Model:

WiFi Link 5100

Wireless LAN Standard:

IEEE 802.11n

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 2.1

Operating System

Operating System Platform:

Windows

Operating System:

Windows 7

Software

Software Included:

Cleaning Reminder Tool
Panasonic Dashboard
Panasonic Handwriting Tool
Setup
Diagnostics
PC Information Viewer
Adobe Reader
Keyboard Button Manager
Hard Disk Data Erase Utility

Battery Information

Number of Batteries Supported:

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

2750 mAh
2900 mAh

Maximum Battery Run Time:

6 Hours

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Rugged:

Yes

Form Factor:

Slate

Height:

2.3"

Width:

10.6"

Depth:

10.4"

Weight (Approximate):

3.40 lb

Miscellaneous

Package Contents:

TOUGHBOOK H1 CF-H1CEKTG1M Tablet PC
2 X Lithium Ion Batteries
AC Adapter

Certifications & Standards:

IT Equipment Safety (EN:EU, UL:US): EN/IEC 60950-1, UL 60950-1
Medical Electrical Equipment Safety (EU): EN/IEC 60601-1
Medical Electrical Equipment Safety (Canada): CAN/CSA-C22.2 No.601.1-M90
IT Equipment EMI (US): FCC CFR 47 P.15 Sub B-Class B
IT Equipment EMI (EU): EN 55022/CISPR 22-Class B
IT Equipment EMS (EU): EN 55024
Industrial EMI (EU): EN 55011/CISPR 11-Class B
Radio (US): FCC CFR 47 P.15 Sub C
Radio (Canada): RSS-210
SAR (US): FCC CFR 47 P.2

Security Features:

Trusted Platform Module (TPM) Security Chip v.1.2
Computrace Theft Protection Agent in BIOS
Password Security:

Supervisor
User
Hard Disk Lock

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
EPEAT Gold

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211509
