Panasonic CF-53JJCZY1M POS Touch Terminal

The Panasonic CF-53JJCZY1M POS Touch Terminal has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Panasonic - Panasonic Toughbook 53 CF-53JJCZY1M 14" Touchscreen Semi-rugged Notebook - HD - 1366 x 768 - Intel Core i5 (3rd Gen) i5-3320M Dual-core (2 Core) 2.60 GHz - 4 GB RAM - 320 GB HDD - Windows 7 - Intel HD 4000 - CircuLumin - 7 Hour Battery Run Time - IEEE 802.11a/b/g/n Wireless LAN Standard

Intel Core i5 2.60 GHz processor provides great performance, immersive multimedia and rapid loading of programs
4 GB memory seamlessly handle multiple programs together
The 14" 1366 x 768 screen provides a great movie watching experience
Windows 7 OS smartly manages your hardware and runs routine applications efficiently
No need to carry additional drives since 320 GB HDD is enough to store your personal and valuable data
Super Multi-format DVD Drive for all your optical media and video recording needs. Plays and burns DVDs and CDs.
7 Hours battery run time helps you stay unwired and work longer non-stop

Need a different version? See all Panasonic Parts Accessories

Discontinued Need Assistance?

Add to Quote

Panasonic CF-53JJCZY1M POS Touch Terminal

Overview

Panasonic Parts Accessory Model Overview

Products and parts from Panasonic.

Panasonic CF-53JJCZY1M POS Touch Terminal Overview

Panasonic Toughbook® mobile computers are engineered to withstand drops, spills, dust and grime, and to perform in the harshest environments. Rugged reliability, low cost of ownership and accolades from reviewers are just a few of the reasons why Toughbook computers keep winning over the world's toughest users.

Detailed Specs

Processor

Processor Manufacturer:

Intel

Processor Type:

Core i5

Processor Generation:

3rd Gen

Processor Model:

i5-3320M

Processor Core:

Dual-core (2 Core)

Processor Speed:

2.60 GHz

Cache:

3 MB

Direct Media Interface:

5 GT/s

64-bit Processing:

Yes

Hyper-Threading:

Yes

vPro Technology:

Yes

Chipset

Chipset Manufacturer:

Intel

Chipset Model:

QM77 Express

Memory

Standard Memory:

4 GB

Maximum Memory Supported:

16 GB

Memory Technology:

DDR3 SDRAM

Memory Standard:

DDR3-1333/PC3-10600

Memory Card Reader:

Yes

Memory Card Supported:

SD
SDXC

Storage

Drive Type:

HDD

Total Hard Drive Capacity:

320 GB

Hard Drive RPM:

5400

Optical Drive Type:

DVD-Writer

Optical Media Supported:

DVD-RAM/±R/±RW

Dual-Layer Media Supported:

Yes

Display & Graphics

Screen Size:

14"

Display Screen Type:

LCD

Display Screen Technology:

CircuLumin

Aspect Ratio:

16:9

Screen Mode:

Screen Resolution:

1366 x 768

Backlight Technology:

LED

Color Supported:

16.7 Million Colors

Touchscreen:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD 4000

Graphics Memory Technology:

DDR3 SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Wireless LAN:

Yes

Wireless LAN Manufacturer:

Intel

Wireless LAN Model:

Centrino Advanced-N 6205

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Ethernet Technology:

Gigabit Ethernet

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 4.0

I/O Expansions

Expansion Bay Type:

Multimedia Bay

Expansion Slot Type:

PC Card Type II
ExpressCard/54

Built-in Devices

Speakers:

Yes

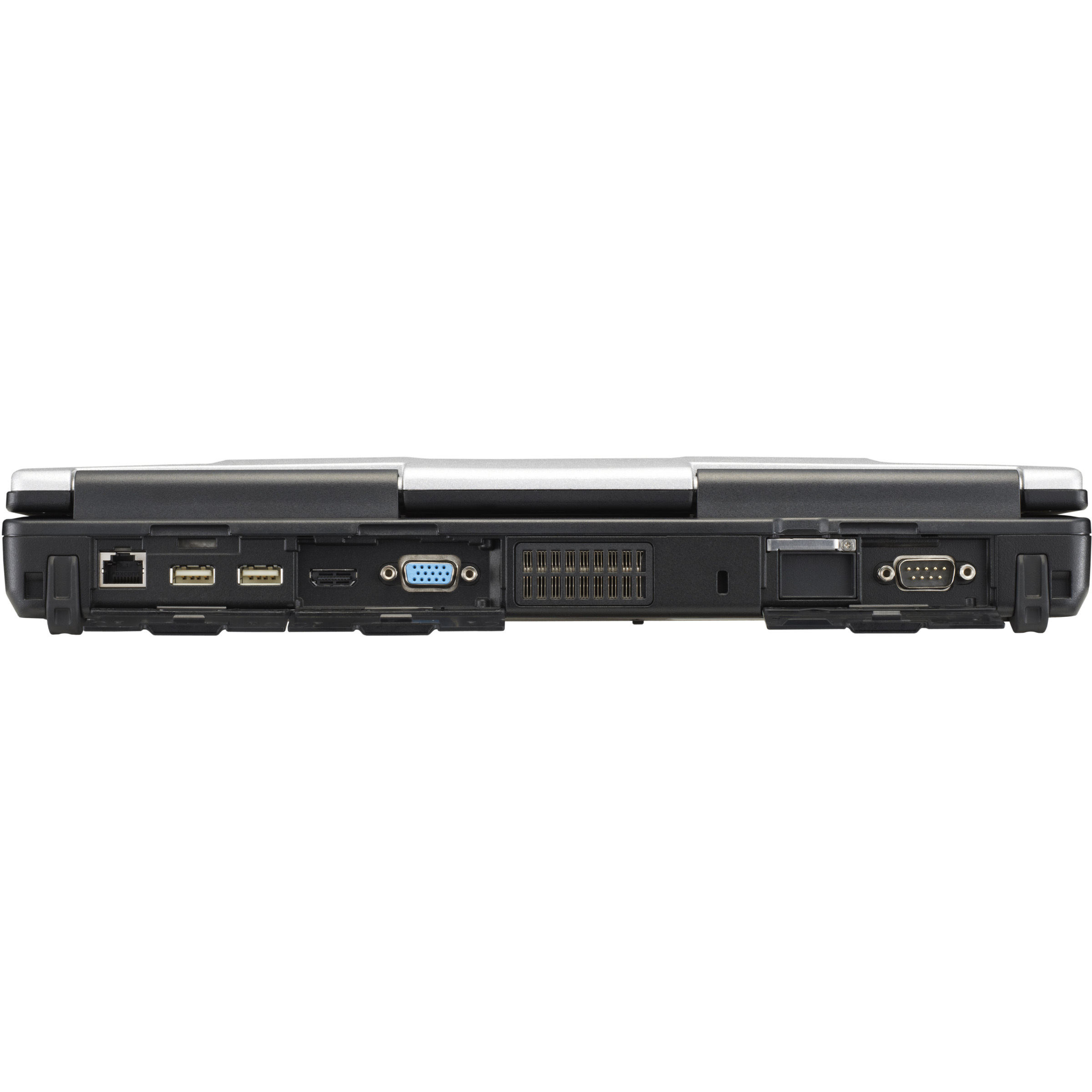

Interfaces/Ports

HDMI:

Yes

Total Number of USB Ports:

Number of USB 2.0 Ports:

Number of USB 3.0 Ports:

VGA:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Software

Operating System:

Windows 7

Software Included:

Panasonic Utilities
Recovery Partition

Input Devices

Keyboard:

Yes

Pointing Device Type:

TouchPad

TouchPad Features:

Multi-touch Gesture

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

4500 mAh

Maximum Battery Run Time:

7 Hour

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Semi-rugged:

Yes

Height:

2.20"

Width:

13.4"

Depth:

11.1"

Weight (Approximate):

6.50 lb

Miscellaneous

Package Contents:

Toughbook CF-53JJCZY1M Notebook
Lithium Ion Battery
AC Adapter

Certifications & Standards:

ACPI
MIL-STD-810G
Section 508 Standards

Security Features:

Kensington Cable Lock Slot
Trusted Platform Module (TPM) Security Chip v.1.2
Computrace Theft Protection Agent in BIOS
Intel Anti-Theft Technology

Password Security:

User
Supervisor
Hard Disk Lock

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
ENERGY STAR
EPEAT Silver

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0885170110762

UPC: 885170110762

EAN: 0885170110762

UNSPSC: 43211503

Reviews

Q&A

Questions? Get help from
a POS Expert!

The Panasonic CF-53JJCZY1M POS Touch Terminal is also known as PAN-CF53JJCZY1M
