Panasonic Toughbook 33 Rugged Laptop Model Overview
The Panasonic Toughbook 33 is the world's first fully rugged 2-in-1 PC equipped with a 3:2 screen, designed specifically for mobile professionals operating in demanding environments. Its high-resolution display is 50% brighter and 15% larger than similar devices, making it ideal for business applications on the go. The Toughbook 33 boasts a unique twin battery design for hot-swapping, ensuring uninterrupted functionality. With an array of integrated options and backward compatibility to existing vehicle docks, this device caters to diverse user needs while maintaining exceptional durability and performance. Key Features
Fully Rugged Design: Meets MIL-STD-810G standards for extreme conditions.
Enhanced Display: 12-inch QHD screen with superior brightness and clarity.
Hot-swappable Batteries: Allows continuous usage without downtime.
Comprehensive Security: Features TPM 2.0 and biometric authentication with Windows Hello.
Flexible Connectivity: Options for 4G LTE, dual-band Wi-Fi, and extensive ports.
Specifications
Processor: Intel® Core™ i5-7300U or i7-7600U vPro™
Operating System: Windows 10 Pro (downgrade to Windows 7 Professional available)
Memory: Factory installed 8GB or 16GB SDRAM
Storage: 256GB or 512GB removable SSD with optional OPAL encryption
Display: 12.0" 3:2 QHD (2160 x 1440), 1200 nit brightness
Durability: IP65 and MIL-STD-461F certified
Weight: 6.1 lbs with Premium Keyboard
Battery Life: Up to 10 hours (20 hours with optional long-life batteries)
Dimensions: 12.3" (L) x 11.4" (W) x 1.8" (H)
Panasonic CF-33JZ04PKM Tablet Overview
FULLY RUGGED TO THE MAX.

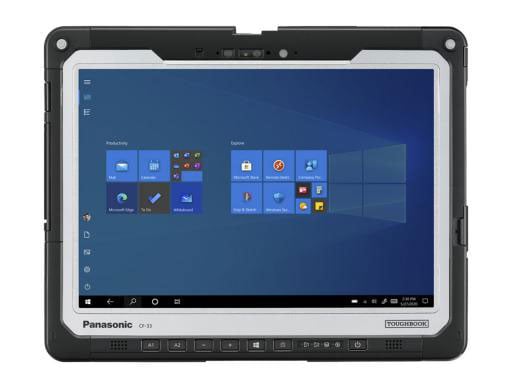

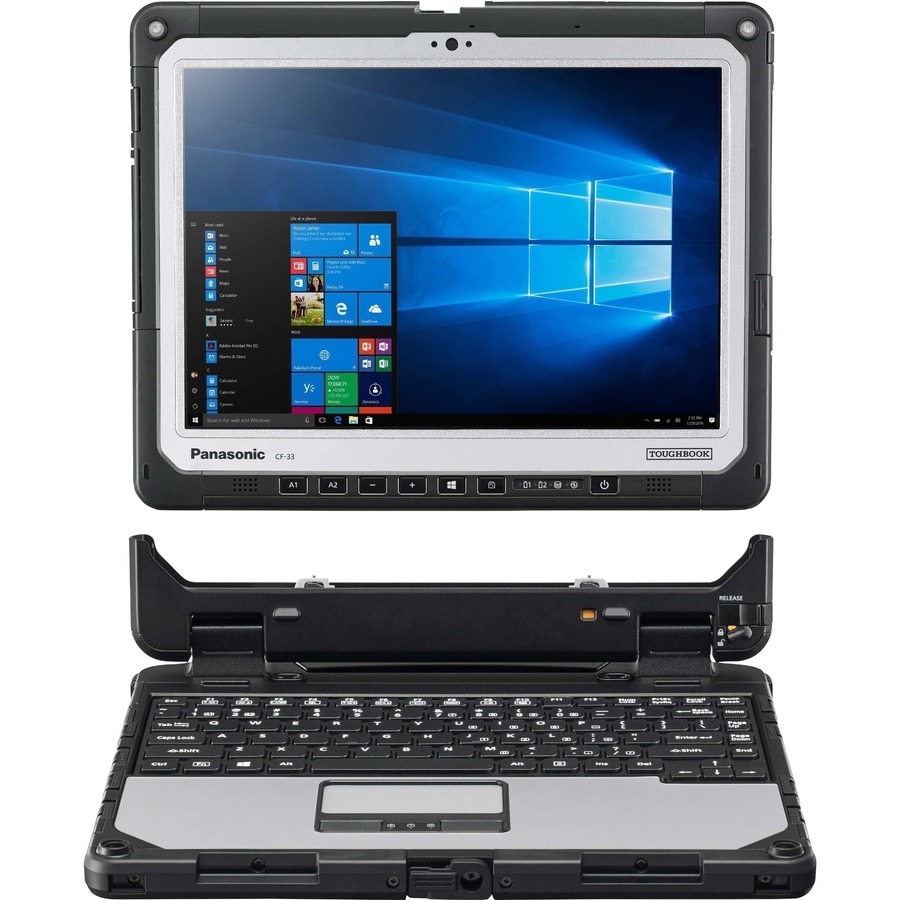

The TOUGHBOOK® 33 has a 12" detachable screen and features a cutting-edge 3:2 display that improves readability of the business applications and documents workers use every day. Bringing ultimate versatility, this device has an innovative design that enables backward capability with an entire generation of TOUGHBOOK 31 vehicle docks. From a choice of keyboards to hot-swappable twin batteries to an infrared camera for Windows Hello® support, this fully rugged 2-in-1 is built for maximum mobility.
Docks & Cradles, Panasonic, Havis Lite Laptop 2-In-1 Vehicle Dock (No Pass), For Panasonic Toughbook 33, USB-A 2.0 (6), Serial, LAN (2), Features Two Front USB Ports for Easy Access, Requires Premium Keyboard (Sold Separately)
Docks & Cradles, Panasonic, Havis Lite Laptop 2-In-1 Vehicle Dock (Dual Pass), For Panasonic Toughbook 33, Includes Lind Power Supply, USB-A 2.0 (6), Serial, LAN (2), Dual RF, Features Two Front USB Ports For Easy Access, Requires Premium Keyboard (Sold Separately).
Docks & Cradles, Panasonic, Havis Lite Laptop 2-In-1 Vehicle Dock (No Pass), For Panasonic Toughbook 33, Includes Lind Power Supply, USB-A 2.0 (6), Serial, LAN (2), Features Two Front USB Ports For Easy Access, Requires Premium Keyboard (Sold Separately).
Computer Components, Panasonic, 512GB Quick-Release SSD (Opal) Spare, for CF-33 MK1, MK2, Includes Insertable Smartcard, Only Compatible on CF-33 SKUs Equipped with the Optional Integrated Quick-Release SSD Bump Out
Item on backorder — chat for lead time
$892.56
Top Docks and Cradles Purchased With Panasonic CF-33JZ04PKM
Docks & Cradles, Panasonic, Gamber-Johnson Trimline Lite Tablet Vehicle Dock (No Pass), for CF-33 Tablet Only with Lind Power Supply, USB 2.0 (4), USB 3.0 (2), Serial, Ethernet (2), Docking Connector, Power, Release Lever, Lock (Keyed Alike)
Docks & Cradles, Panasonic, Havis Lite Laptop 2-In-1 Vehicle Dock (No Pass), For Panasonic Toughbook 33, USB-A 2.0 (6), Serial, LAN (2), Features Two Front USB Ports for Easy Access, Requires Premium Keyboard (Sold Separately)
Docks & Cradles, Panasonic, Havis Lite Laptop 2-In-1 Vehicle Dock (Dual Pass), For Panasonic Toughbook 33, Includes Lind Power Supply, USB-A 2.0 (6), Serial, LAN (2), Dual RF, Features Two Front USB Ports For Easy Access, Requires Premium Keyboard (Sold Separately).
What is the display size and resolution of the Panasonic CF-33JZ04PKM?
The Panasonic Toughbook 33 features a 12-inch detachable screen with QHD (Quad High Definition) resolution and a 3:2 aspect ratio. This larger, brighter display is designed to make it easier to view business applications and documents while working in the field, and the gloved multi-touch digitizer allows operation with gloves or a stylus.
Is the Panasonic Toughbook 33 compatible with Toughbook 31 docks?
Yes, the Toughbook 33 features backward compatibility with vehicle docks from the entire Toughbook 31 generation. This compatibility saves time and money on installation when upgrading from older Toughbook models.
What processor and memory does the CF-33JZ04PKM come with?
The CF-33JZ04PKM is equipped with an Intel Core i7-10810U processor running at 1.1 GHz (up to 4.9 GHz) with vPro support, 16GB of RAM, and a 512GB Opal SSD for storage. This configuration provides the performance needed for demanding field operations and data-intensive applications.
What connectivity options are available on the Toughbook 33?
The Toughbook 33 includes Wi-Fi, Bluetooth, and optional 4G LTE-Advanced multi-carrier mobile broadband with satellite GPS. You can also choose an integrated GPS module (u-blox NEO-M8N) or a second USB 2.0 port depending on your operational requirements.
What security and authentication features does this tablet offer?
The CF-33JZ04PKM includes an infrared camera for Windows Hello biometric authentication, TPM 2.0 for secure data protection, and your choice of insertable SmartCard CAC readers, contactless SmartCard CAC, or a fingerprint reader for flexible security options. These features make it suitable for government and enterprise deployments requiring high-security standards.
What battery options and charging solutions are available for the Toughbook 33?
The Toughbook 33 comes with two standard hot-swappable batteries, allowing you to swap batteries without powering down the device. We offer optional lightweight and long-life battery packs, a 4-bay battery charger, and a 120W LIND car charger to support extended field operations and mobile charging scenarios.
The Panasonic CF-33JZ04PKM Tablet is also known as
CF-33JZ04PKM
Full specifications (PDF)
