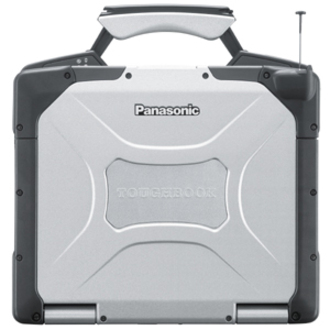

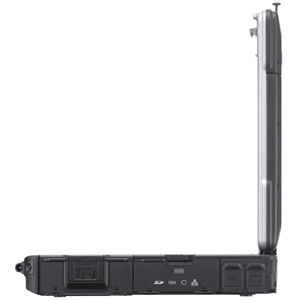

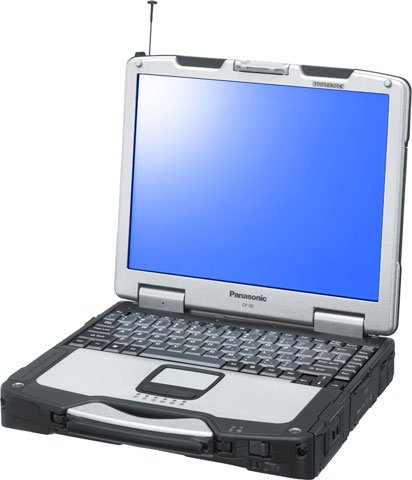

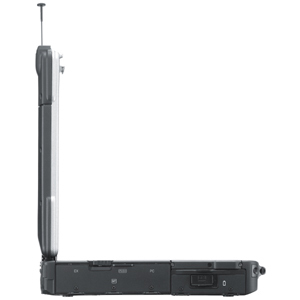

Panasonic CF-30KTPAX2M Rugged Laptop

The Panasonic CF-30KTPAX2M Rugged Laptop has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Panasonic Toughbook 30 - Panasonic Toughbook 30 13.3" Touchscreen Rugged Notebook - XGA - 1024 x 768 - Intel Core 2 Duo SL9300 Dual-core (2 Core) 1.60 GHz - 2 GB RAM - 160 GB HDD - Magnesium Alloy - Windows Vista - with 128 MB - IEEE 802.11n Wireless LAN Standard

Intel Core2 Duo 1.60 GHz mobile processor, you'll get the performance you require throughout today's mobile multitasking
Get a hassle free performance with 2 GB and use your routine office applications smoothly
The 13.3" 1024 x 768 screen provides a great movie watching experience
Windows Vista OS smartly manages your hardware and runs routine applications efficiently
No need to carry additional drives since 160 GB total HDD capacity is enough to store your personal and valuable data

Need a different version? See all Panasonic Toughbook 30 Rugged Laptops

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Panasonic Toughbook 30 Rugged Laptop Model Overview

MIL-STD-810F certified for ruggedness, the award-winning Toughbook 30* offers the ultimate in durability. The fully-rugged mobile computer features Windows Vista Business (with XP downgrade option), a 13.3" optional sunlight-viewable 1,000 nit touchscreen display with Panasonic CircuLumin technology, Intel Centrino 2 with vPro technology and 160GB shock-mounted HDD. In addition, the Toughbook 30 is mobile broadband ready, comes standard with draft-n Wi-Fi and Bluetooth, with optional integrated Gobi Global Mobile Internet (WWAN). The rugged, reliable Toughbook 30 enables real-time access to information even in the harshest environments thanks to IP651 certified sealed all-weather design.

Panasonic CF-30KTPAX2M Rugged Laptop Overview

Out in the field or down in the dirt, the durable Panasonic Toughbook 30 notebook is built to take a beating. MIL-STD-810F-tested for ruggedness, this brawny workhorse is encased in magnesium alloy, with durability designed into every seal, hinge and connector. Plus, as the industry's fastest fully-rugged mobile PC, it's built for lightening-quick processing and wireless connectivity. Communicate in real time from remote areas, access databases online and run sophisticated software applications even in the harshest environments.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Core 2 Duo

Processor Model:

SL9300

Processor Core:

Dual-core (2 Core)

Processor Speed:

1.60 GHz

Cache:

6 MB

Bus Speed:

1066 MHz

64-bit Processing:

Yes

Chipset

Chipset Manufacturer:

Intel

Chipset Model:

945GM Express

Memory

Total Installed System Memory:

2 GB

Maximum Supported System Memory:

4 GB

System Memory Technology:

DDR2 SDRAM

Total Number of Memory Slots:

Memory Card Reader:

Yes

Memory Card Supported:

Storage

Drive Type:

HDD

Total Hard Drive Capacity:

160 GB

Total Solid State Drive Capacity:

Optical Drive Type:

Display & Graphics

Screen Size:

13.3"

Display Screen Type:

LCD

Aspect Ratio:

4:3

Screen Mode:

XGA

Screen Resolution:

1024 x 768

Touchscreen:

Yes

Graphics Memory Capacity:

128 MB

Graphics Memory Technology:

DDR2 SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Wireless LAN:

Yes

Wireless LAN Manufacturer:

Intel

Wireless LAN Model:

WiFi Link 5100

Wireless LAN Standard:

IEEE 802.11n

Ethernet Technology:

Gigabit Ethernet

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 2.0

I/O Expansions

Expansion Bay Type:

Multimedia Pocket

Expansion Slot Type:

PC Card Type II
ExpressCard/54

Interfaces/Ports

FireWire/i.LINK:

Yes

Total Number of USB Ports:

Number of USB 2.0 Ports:

VGA:

Yes

Network (RJ-45):

Yes

Operating System

Operating System Platform:

Windows

Operating System:

Windows Vista

Downgradable Operating System:

Windows XP Professional

Software

Software Included:

DMI Viewer
Adobe Acrobat Reader

Input Devices

Keyboard:

Yes

Pointing Device Type:

TouchPad

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

8550 mAh

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Product Color:

Magnesium Alloy

Rugged:

Yes

Height:

2.80"

Width:

11.9"

Depth:

11.3"

Miscellaneous

Package Contents:

TOUGHBOOK 30 Notebook
Lithium-Ion Battery
AC Adapter

Security Features:

Cable lock slot
Trusted Platform Module (TPM) Security Chip v.1.2
Password Security:

Supervisor
User
Hard-Disk Lock

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0092281895598

UPC: 092281895598

EAN: 0092281895598

UNSPSC: 43211503
