Panasonic CF-20GW001VM Rugged Laptop

Part Number: CF-20GW001VM

Model: Toughbook 20

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Processor Manufacturer

Intel

Processor Type

Core i5

Processor Generation

7th Gen

Processor Model

i5-7Y57

Product Description:

Rugged Laptops, Panasonic CF-20, Windows 10 Pro, Intel Core I5-7Y57 1.20Ghz, vPro, 10.1in WUXGA 10-Pt Gloved Multi-Touch and Digitizer, 8GB, 256GB SSD, Intel Wi-Fi, TPM 2.0, Bluetooth, Dual Pass (CH1:WWAN/CH2:WWAN-GPS), 4G LTE Band 14 (EM7511), Infrared Webcam, 8MP Camera, Bridge Battery, Emissive Backlit Keyboard, Flat, Toughbook Preferred

Explore all Panasonic Toughbook 20 Rugged Laptops

Add to Quote

Overview

Full specifications (PDF)

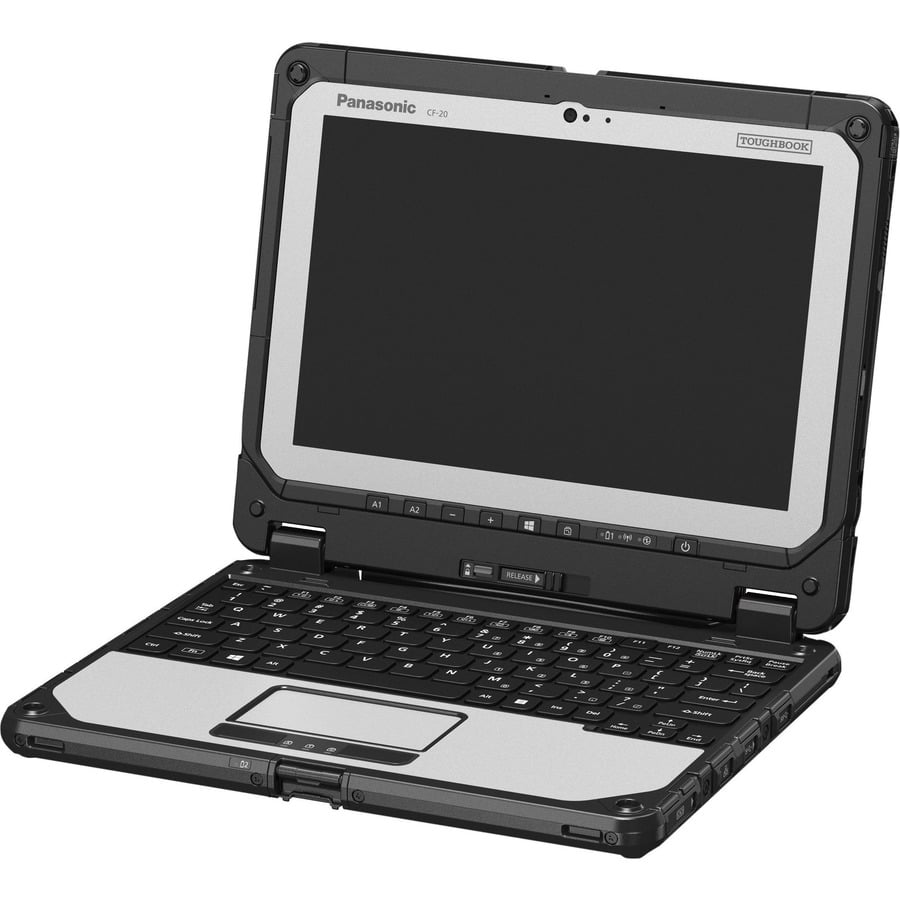

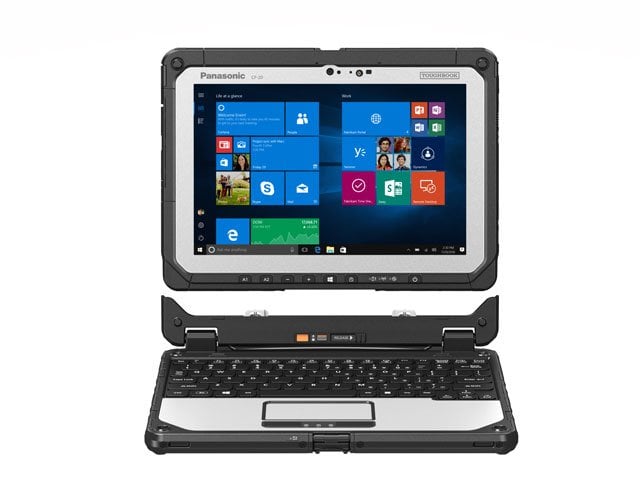

Panasonic Toughbook 20 Rugged Laptop Model Overview

The Panasonic Toughbook CF-20 is the world’s first fully rugged detachable laptop designed for versatile and demanding environments. Weighing just 3.9 pounds, it seamlessly converts from a laptop to a tablet with a single hand. Its sunlight-viewable 10.1" display is optimized for outdoor use, and the optional bridge battery allows for hot-swapping, ensuring uninterrupted productivity. With a built-in handle that doubles as a kickstand and robust MIL-STD certifications, this device is perfect for professionals who need durability and functionality on the go.

Key Features

10.1" Sunlight-Viewable Display: Easily visible in outdoor settings with gloved or bare hands.
Hot-Swap Battery Functionality: Optional bridge battery enables quick and seamless battery replacement.
Rugged Design: MIL-STD-810G and IP65 certifications provide top-tier durability against drops, water, and dust.
Integrated Options: Includes features like a barcode reader, fingerprint reader, and versatile connectivity ports.
Lightweight Build: Only 3.9 lbs, designed with mobility in mind.

Specifications

Processor: Intel® Core™ m5-6Y57 vPro™ Processor (1.1GHz up to 2.8GHz)
Memory: 8GB or 16GB SDRAM (DDR3L - 1600MHz)
Storage Options: 128GB SSD (with optional 256/512GB SSD)
Display: 10.1" WUXGA (1920 x 1200), IPS with 800 nit brightness
Audio: Integrated speakers and dual array microphone
Weight: 3.9 lbs (with keyboard dock)
Battery Life: Up to 10 hours (20 hours with optional 2nd battery)
Security: Trusted Platform Module (TPM) and optional fingerprint reader
Dimensions: 10.7” x 9.2” x 1.3” when docked

Panasonic CF-20GW001VM Rugged Laptop Overview

THE WORLD'S FIRST FULLY RUGGED DETACHABLE LAPTOP.

The Toughbook 20 is the first fully rugged detachable PC with a removable keyboard that quickly transforms from a laptop into a fully functioning tablet with just one hand. At only 3.9 pounds, it's good on the go with a clever built in handle that also functions as a kickstand, a bridge battery that allows hot swappable battery replacement while running without disruption and the broadest range of ports and integrated options in its class. The Toughbook 20 display can be used with or without gloves and its sunlight-viewable 800 nit IPS display with direct bonding enables wider viewing angles and richer colors.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Core i5

Processor Generation:

7th Gen

Processor Model:

i5-7Y57

Processor Speed:

1.20 GHz

Memory

Total Installed System Memory:

8 GB

Maximum Supported System Memory:

16 GB

System Memory Technology:

DDR3L SDRAM

Storage

Drive Type:

SSD

Total Solid State Drive Capacity:

256 GB

Display & Graphics

Screen Size:

10.1"

Display Screen Type:

LCD

Display Screen Technology:

In-plane Switching (IPS) Technology

Screen Resolution:

1920 x 1200

Touchscreen:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD Graphics 515

Graphics Memory Technology:

DDR3L SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n/ac

Cellular Generation:

Cellular Data Connectivity Technology:

LTE

Ethernet Technology:

Gigabit Ethernet

Bluetooth:

Yes

WWAN Supported:

Yes

Built-in Devices

Front Camera/Webcam:

Yes

Rear Camera:

Yes

Rear Camera Resolution:

8 Megapixel

Focus Modes:

Auto-focus

Infrared Camera:

Yes

Interfaces/Ports

HDMI:

Yes

Total Number of USB Ports:

Number of USB 3.0 Ports:

Network (RJ-45):

Yes

Operating System

Operating System Platform:

Windows

Operating System:

Windows 10 Pro

Input Devices

Keyboard Backlight:

Yes

Battery Information

Number of Batteries:

Maximum Battery Run Time:

8.50 Hours

Power Description

Input Voltage:

120 V AC
230 V AC

Physical Characteristics

Form Factor:

Detachable

Height:

1.30"

Width:

10.7"

Depth:

9.2"

Weight without Dock (Approximate):

2.10 lb

Weight with Dock (Approximate):

3.90 lb

Miscellaneous

Package Contents:

TOUGHBOOK CF-20GW001VM 2 in 1 Notebook
AC Adapter
Keyboard

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211503
