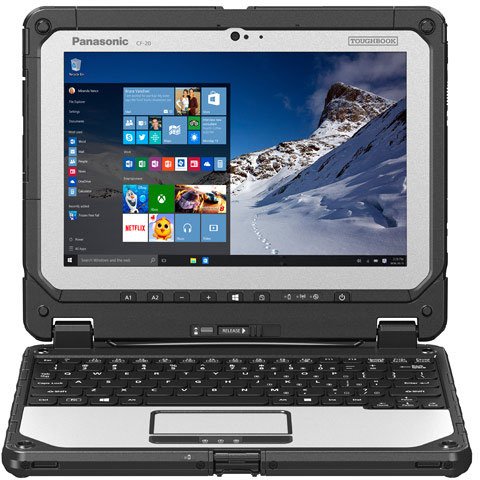

Panasonic CF-20C5-01KM Rugged Laptop

Part Number: CF-20C5-01KM

Model: Toughbook 20

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Processor Manufacturer

Intel

Processor Type

Core M

Processor Generation

6th Gen

Processor Model

m5-6Y57

Product Description:

Panasonic Toughbook CF-20 CF-20C5-01KM 10.1" Touchscreen 2 in 1 Notebook - 1920 x 1200 - Intel Core M (6th Gen) m5-6Y57 Dual-core (2 Core) 1.10 GHz - 8 GB RAM - 256 GB SSD - Windows 7 - Intel HD Graphics 515 - In-plane Switching (IPS) Technology - 4G - IEEE 802.11a/b/g/n/ac Wireless LAN Standard

Explore all Panasonic Toughbook 20 Rugged Laptops

Add to Quote

Overview

Full specifications (PDF)

Panasonic Toughbook 20 Rugged Laptop Model Overview

The Panasonic Toughbook CF-20 is the world’s first fully rugged detachable laptop designed for versatile and demanding environments. Weighing just 3.9 pounds, it seamlessly converts from a laptop to a tablet with a single hand. Its sunlight-viewable 10.1" display is optimized for outdoor use, and the optional bridge battery allows for hot-swapping, ensuring uninterrupted productivity. With a built-in handle that doubles as a kickstand and robust MIL-STD certifications, this device is perfect for professionals who need durability and functionality on the go.

Key Features

10.1" Sunlight-Viewable Display: Easily visible in outdoor settings with gloved or bare hands.
Hot-Swap Battery Functionality: Optional bridge battery enables quick and seamless battery replacement.
Rugged Design: MIL-STD-810G and IP65 certifications provide top-tier durability against drops, water, and dust.
Integrated Options: Includes features like a barcode reader, fingerprint reader, and versatile connectivity ports.
Lightweight Build: Only 3.9 lbs, designed with mobility in mind.

Specifications

Processor: Intel® Core™ m5-6Y57 vPro™ Processor (1.1GHz up to 2.8GHz)
Memory: 8GB or 16GB SDRAM (DDR3L - 1600MHz)
Storage Options: 128GB SSD (with optional 256/512GB SSD)
Display: 10.1" WUXGA (1920 x 1200), IPS with 800 nit brightness
Audio: Integrated speakers and dual array microphone
Weight: 3.9 lbs (with keyboard dock)
Battery Life: Up to 10 hours (20 hours with optional 2nd battery)
Security: Trusted Platform Module (TPM) and optional fingerprint reader
Dimensions: 10.7” x 9.2” x 1.3” when docked

Panasonic CF-20C5-01KM Rugged Laptop Overview

TOUGHBOOK

Take a closer look at our Toughbook range of rugged laptops and tablets and you'll discover a family of robust devices that are capable of performing outdoors, in diverse harsh, dirty, wet environments, and in extremes of temperature.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Core M

Processor Generation:

6th Gen

Processor Model:

m5-6Y57

Processor Core:

Dual-core (2 Core)

Processor Speed:

1.10 GHz

Memory

Total Installed System Memory:

8 GB

System Memory Technology:

DDR3L SDRAM

Storage

Drive Type:

SSD

Total Solid State Drive Capacity:

256 GB

Display & Graphics

Screen Size:

10.1"

Display Screen Technology:

In-plane Switching (IPS) Technology

Aspect Ratio:

16:10

Screen Resolution:

1920 x 1200

Touchscreen:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD Graphics 515

Graphics Memory Technology:

DDR3L SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n/ac

Cellular Generation:

Cellular Data Connectivity Technology:

LTE

Ethernet Technology:

Gigabit Ethernet

Bluetooth:

Yes

GPS:

Yes

WWAN Supported:

Yes

Built-in Devices

Front Camera/Webcam:

Yes

Rear Camera:

Yes

Rear Camera Resolution:

8 Megapixel

Focus Modes:

Auto-focus

Interfaces/Ports

HDMI:

Yes

Total Number of USB Ports:

Number of USB 3.0 Ports:

Network (RJ-45):

Yes

Operating System

Operating System Platform:

Windows

Operating System:

Windows 7

Upgradable Operating System:

Windows 10 Pro

Input Devices

Keyboard Backlight:

Yes

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Form Factor:

Detachable

Height:

1.30"

Width:

10.7"

Depth:

9.2"

Weight with Dock (Approximate):

3.90 lb

Miscellaneous

Package Contents:

TOUGHBOOK CF-20C5-01KM 2 in 1 Netbook
Lithium Ion Battery
AC Adapter
Emissive Backlit Keyboard with Battery
Windows 10 Pro License Media
Stylus

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0885170294592

UPC: 885170294592

EAN: 0885170294592

UNSPSC: 43211503
