Panasonic CF-20C0158VM Two-in-One Laptop

Part Number: CF-20C0158VM
Model: Toughbook 20
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Manufacturer
Intel
Processor Type
Core M
Processor Generation
6th Gen
Processor Model
m5-6Y57

Product Description:

  Two-in-One Laptop, Panasonic Toughbook CF-20, Windows 10 Pro, Wi-Fi/Bluetooth, Dual Pass (WWAN/GPS), 1920x1200, 8GB RAM/128GB SSD, 10.1in Display+Digitizer, 2D Barcode Scanner (N6603), Intel Core M (6th Gen) m5-6Y57 Dual-core 1.10 GHz, Intel HD Graphics 515, In-plane Switching (IPS) Technology, vPro, Insertable Smartcard, Bridge Battery
Explore all Panasonic Toughbook 20 Rugged Laptops
Add to Quote
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop
Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop Panasonic CF-20C0158VM Two-in-One Laptop

Full specifications (PDF)

Panasonic Toughbook 20 Rugged Laptop Model Overview

The Panasonic Toughbook CF-20 is the world’s first fully rugged detachable laptop designed for versatile and demanding environments. Weighing just 3.9 pounds, it seamlessly converts from a laptop to a tablet with a single hand. Its sunlight-viewable 10.1" display is optimized for outdoor use, and the optional bridge battery allows for hot-swapping, ensuring uninterrupted productivity. With a built-in handle that doubles as a kickstand and robust MIL-STD certifications, this device is perfect for professionals who need durability and functionality on the go.


Key Features
  • 10.1" Sunlight-Viewable Display: Easily visible in outdoor settings with gloved or bare hands.
  • Hot-Swap Battery Functionality: Optional bridge battery enables quick and seamless battery replacement.
  • Rugged Design: MIL-STD-810G and IP65 certifications provide top-tier durability against drops, water, and dust.
  • Integrated Options: Includes features like a barcode reader, fingerprint reader, and versatile connectivity ports.
  • Lightweight Build: Only 3.9 lbs, designed with mobility in mind.

Specifications
  • Processor: Intel® Core™ m5-6Y57 vPro™ Processor (1.1GHz up to 2.8GHz)
  • Memory: 8GB or 16GB SDRAM (DDR3L - 1600MHz)
  • Storage Options: 128GB SSD (with optional 256/512GB SSD)
  • Display: 10.1" WUXGA (1920 x 1200), IPS with 800 nit brightness
  • Audio: Integrated speakers and dual array microphone
  • Weight: 3.9 lbs (with keyboard dock)
  • Battery Life: Up to 10 hours (20 hours with optional 2nd battery)
  • Security: Trusted Platform Module (TPM) and optional fingerprint reader
  • Dimensions: 10.7” x 9.2” x 1.3” when docked
Panasonic CF-20C0158VM Two-in-One Laptop Overview

The world's first fully rugged detachable laptop.

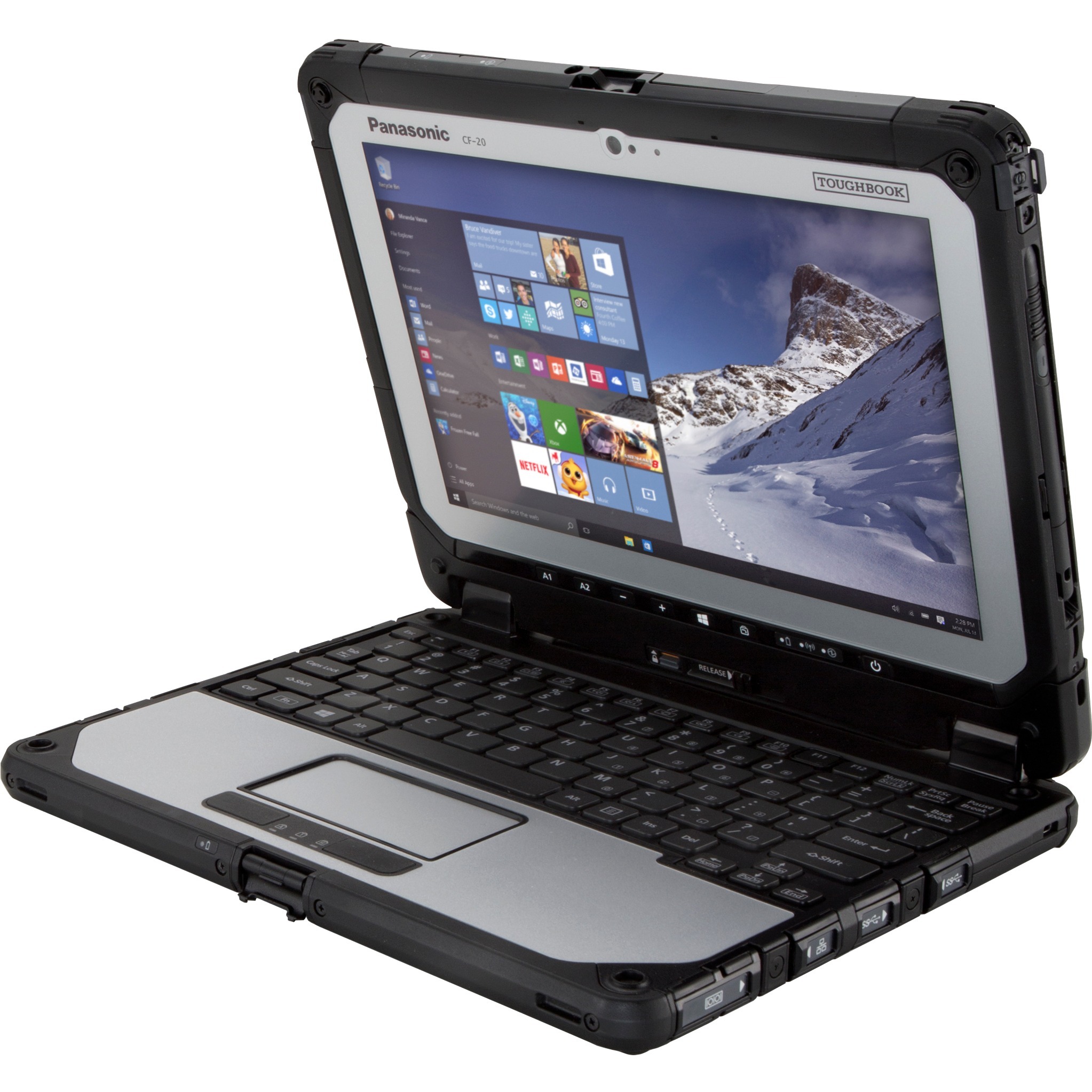

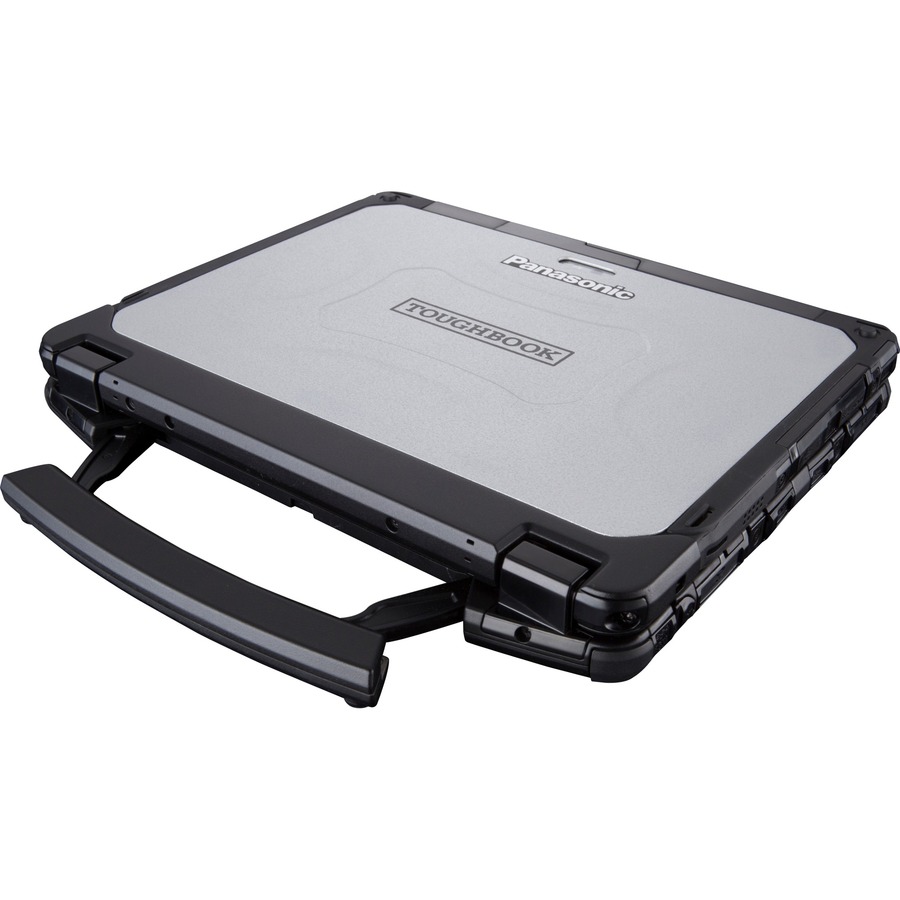

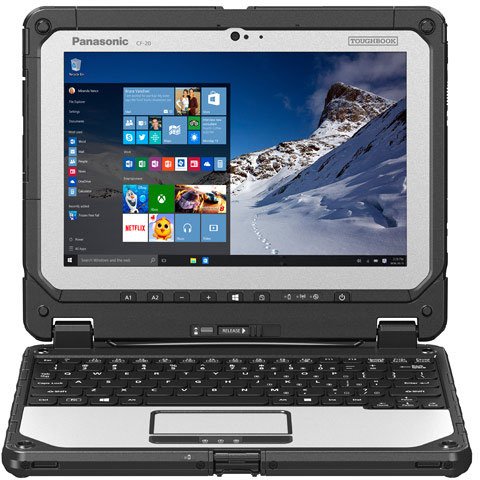

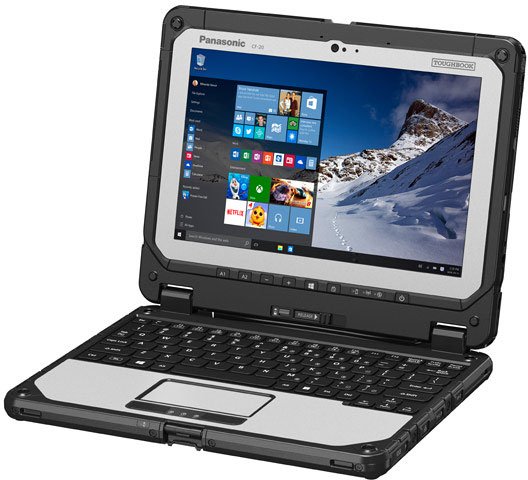

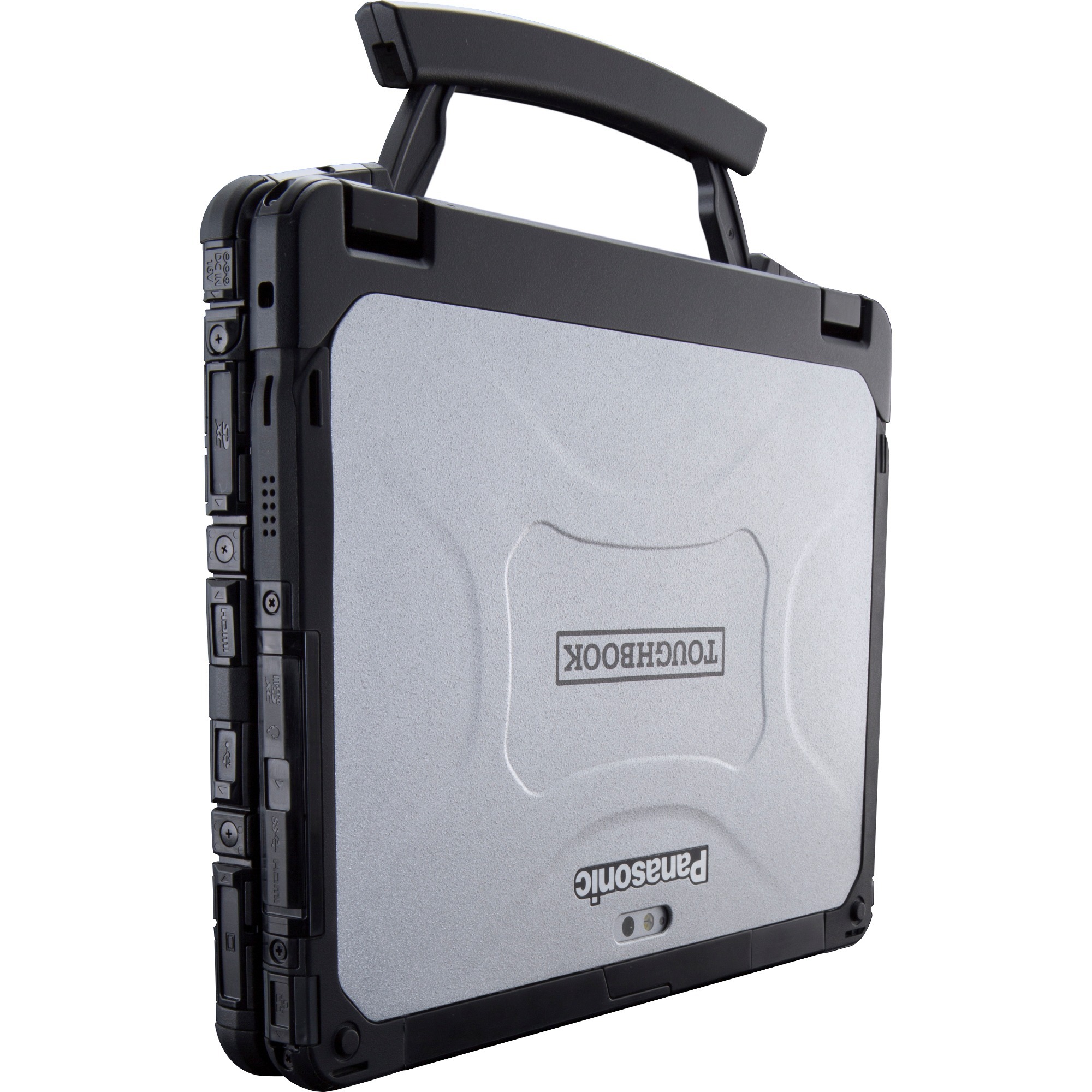

The Panasonic Toughbook® 20 is a fully rugged, lightweight laptop that easily detaches to become a 10.1" tablet. And it only takes one hand. The detachable laptop features a durable MIL-STD-810G and IP65 design along with a magnesium alloy chassis, so it can take the abuse of most any job site. At only 3.9 pounds, this 2-in-1 machine is good on the go. The clever built-in handle also functions as a kickstand, providing on-the-job flexibility. And even as the workday gets longer, power won't be a problem. The optional bridge battery allows hot swap battery replacement without disruption. The gloved multi touch display is sunlight-viewable, making this hybrid laptop perfect for rugged outdoor environments. With this detachable laptop tablet at your side, you can handle anything the workday throws at you.

Full specifications (PDF)
Processor
Processor Manufacturer:
Intel
Processor Type:
Core M
Processor Generation:
6th Gen
Processor Model:
m5-6Y57
Processor Core:
Dual-core (2 Core)
Processor Speed:
1.10 GHz
Memory
Total Installed System Memory:
8 GB
System Memory Technology:
DDR3L SDRAM
Memory Card Supported:
microSDXC
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
128 GB
Display & Graphics
Screen Size:
10.1"
Display Screen Technology:
In-plane Switching (IPS) Technology
Aspect Ratio:
16:10
Screen Resolution:
1920 x 1200
Multi-touch Screen:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
HD Graphics 515
Graphics Memory Technology:
DDR3L SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Bluetooth:
Yes
GPS:
Yes
WWAN Supported:
Yes
Interfaces/Ports
HDMI:
Yes
Number of USB 3.0 Ports:
3
Network (RJ-45):
Yes
Operating System
Operating System Platform:
Windows
Operating System:
Windows 10 Pro
Input Devices
Keyboard Backlight:
Yes
Battery Information
Battery Capacity:
2600 mAh
Physical Characteristics
Form Factor:
Detachable
Height:
1.30"
Width:
9.2"
Depth:
10.7"
Weight with Dock (Approximate):
3.90 lb
Miscellaneous
Package Contents:
  • TOUGHBOOK CF-20C0158VM 2 in 1 Netbook
  • Lithium Ion Battery
  • AC Adapter
  • Emissive Backlit Keyboard
    • Features:
    Barcode Scanner
    Energy Star:
    Yes
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211503
