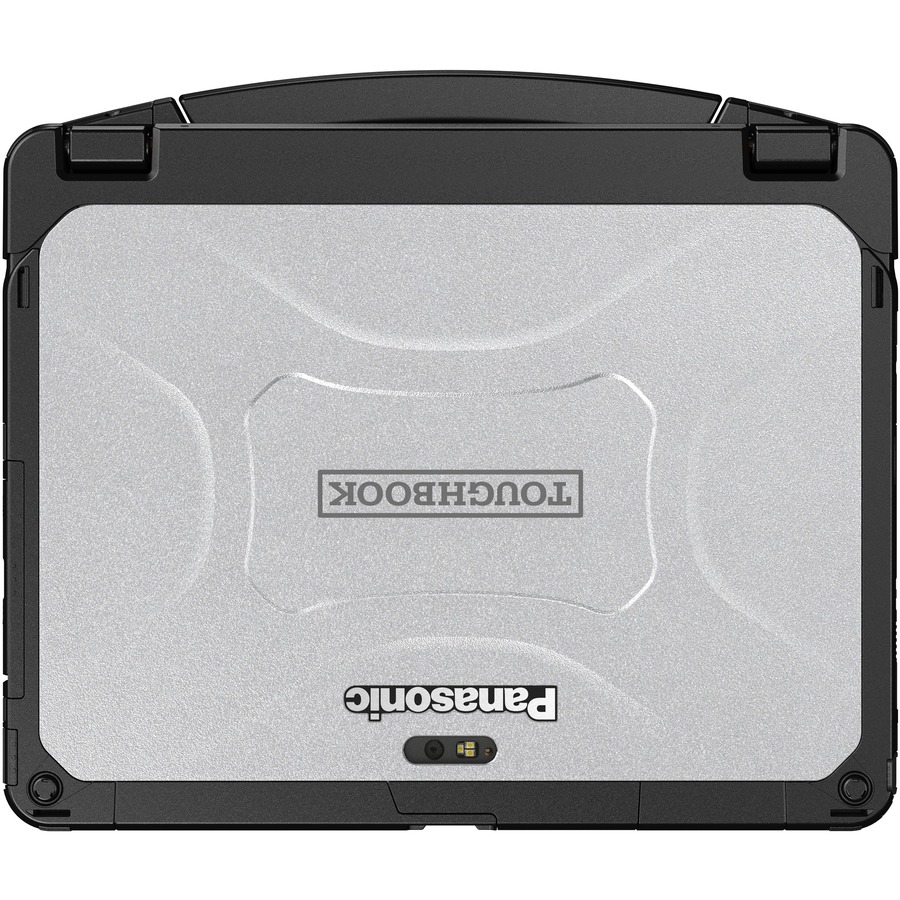

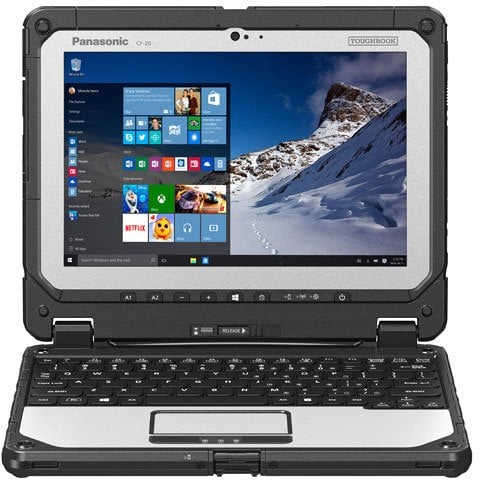

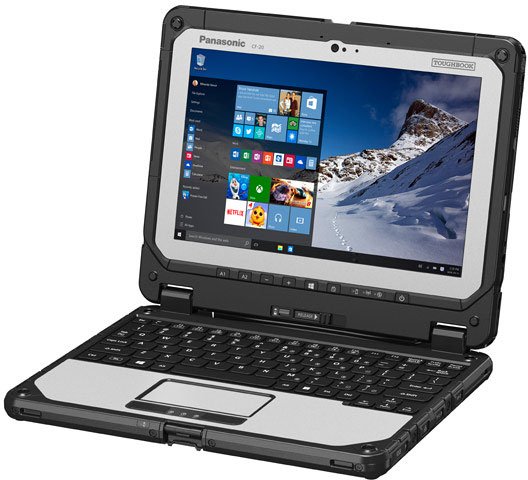

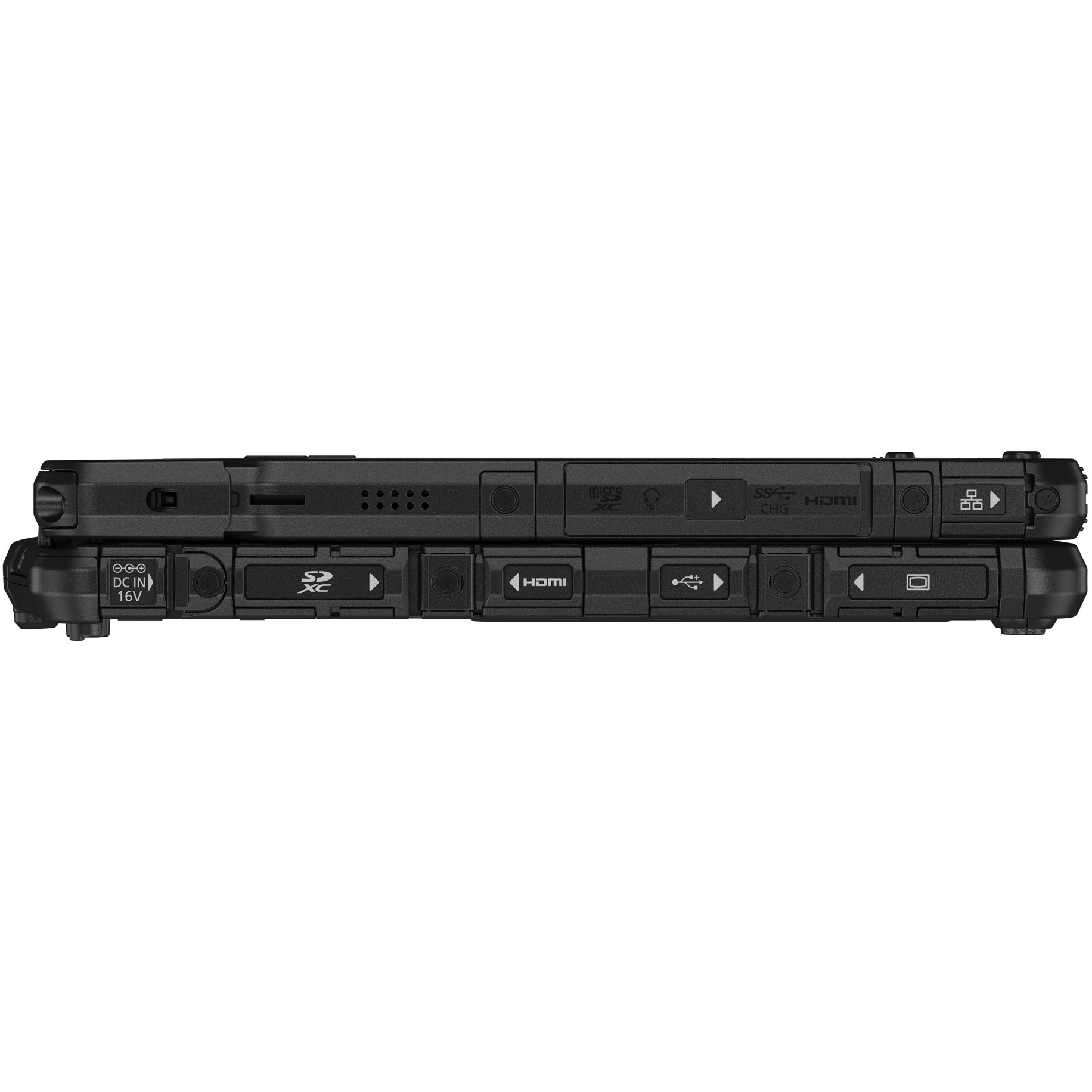

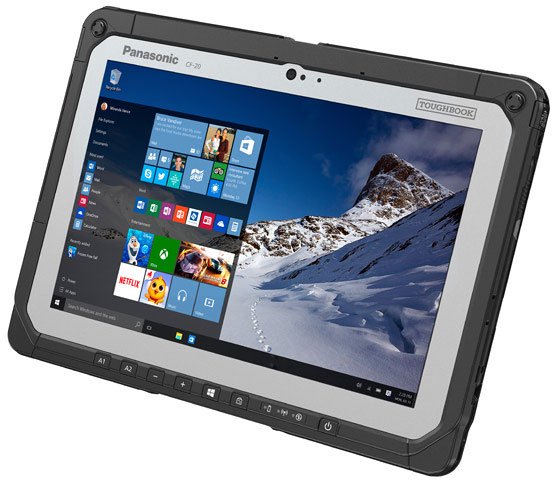

Panasonic CF-20A0001KM Two-in-One Laptop

Part Number: CF-20A0001KM

Model: Toughbook 20

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Processor Manufacturer

Intel

Processor Type

Core M

Processor Generation

6th Gen

Processor Model

m5-6Y57

Product Description:

Two-in-One Laptop, Panasonic Toughbook CF-20, Windows 7 Pro, Wi-Fi/Bluetooth, 1920x1200, 8GB RAM/128GB SSD, 10.1in Display, Intel Core M (6th Gen) m5-6Y57 Dual-core 1.10 GHz, Intel HD Graphics 515, In-plane Switching (IPS) Technology, Webcam, Dual Pass, Backlit Keyboard, Multi-Touch, vPro

Explore all Panasonic Toughbook 20 Rugged Laptops

Add to Quote

Panasonic CF-20A0001KM Two-in-One Laptop

Overview

Full specifications (PDF)

Panasonic Toughbook 20 Rugged Laptop Model Overview

The Panasonic Toughbook CF-20 is the world’s first fully rugged detachable laptop designed for versatile and demanding environments. Weighing just 3.9 pounds, it seamlessly converts from a laptop to a tablet with a single hand. Its sunlight-viewable 10.1" display is optimized for outdoor use, and the optional bridge battery allows for hot-swapping, ensuring uninterrupted productivity. With a built-in handle that doubles as a kickstand and robust MIL-STD certifications, this device is perfect for professionals who need durability and functionality on the go.

Key Features

10.1" Sunlight-Viewable Display: Easily visible in outdoor settings with gloved or bare hands.
Hot-Swap Battery Functionality: Optional bridge battery enables quick and seamless battery replacement.
Rugged Design: MIL-STD-810G and IP65 certifications provide top-tier durability against drops, water, and dust.
Integrated Options: Includes features like a barcode reader, fingerprint reader, and versatile connectivity ports.
Lightweight Build: Only 3.9 lbs, designed with mobility in mind.

Specifications

Processor: Intel® Core™ m5-6Y57 vPro™ Processor (1.1GHz up to 2.8GHz)
Memory: 8GB or 16GB SDRAM (DDR3L - 1600MHz)
Storage Options: 128GB SSD (with optional 256/512GB SSD)
Display: 10.1" WUXGA (1920 x 1200), IPS with 800 nit brightness
Audio: Integrated speakers and dual array microphone
Weight: 3.9 lbs (with keyboard dock)
Battery Life: Up to 10 hours (20 hours with optional 2nd battery)
Security: Trusted Platform Module (TPM) and optional fingerprint reader
Dimensions: 10.7” x 9.2” x 1.3” when docked

Panasonic CF-20A0001KM Two-in-One Laptop Overview

The world's first fully rugged detachable laptop.

The Panasonic Toughbook® 20 is a fully rugged, lightweight laptop that easily detaches to become a 10.1" tablet. And it only takes one hand. The detachable laptop features a durable MIL-STD-810G and IP65 design along with a magnesium alloy chassis, so it can take the abuse of most any job site. At only 3.9 pounds, this 2-in-1 machine is good on the go. The clever built-in handle also functions as a kickstand, providing on-the-job flexibility. And even as the workday gets longer, power won't be a problem. The optional bridge battery allows hot swap battery replacement without disruption. The gloved multi touch display is sunlight-viewable, making this hybrid laptop perfect for rugged outdoor environments. With this detachable laptop tablet at your side, you can handle anything the workday throws at you.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Core M

Processor Generation:

6th Gen

Processor Model:

m5-6Y57

Processor Core:

Dual-core (2 Core)

Processor Speed:

1.10 GHz

Memory

Total Installed System Memory:

8 GB

System Memory Technology:

DDR3L SDRAM

Memory Card Supported:

microSDXC

Storage

Drive Type:

SSD

Total Solid State Drive Capacity:

128 GB

Display & Graphics

Screen Size:

10.1"

Display Screen Technology:

In-plane Switching (IPS) Technology

Aspect Ratio:

16:10

Screen Resolution:

1920 x 1200

Multi-touch Screen:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD Graphics 515

Graphics Memory Technology:

DDR3L SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n/ac

Bluetooth:

Yes

Interfaces/Ports

HDMI:

Yes

Number of USB 3.0 Ports:

Network (RJ-45):

Yes

Operating System

Operating System Platform:

Windows

Operating System:

Windows 7 Professional

Upgradable Operating System:

Windows 10 Pro

Input Devices

Keyboard Backlight:

Yes

Battery Information

Battery Capacity:

2600 mAh

Physical Characteristics

Form Factor:

Detachable

Height:

1.30"

Width:

9.2"

Depth:

10.7"

Weight with Dock (Approximate):

3.90 lb

Miscellaneous

Package Contents:

TOUGHBOOK CF-20A0001KM 2 in 1 Netbook
Lithium Ion Battery
AC Adapter
Emissive Backlit Keyboard
Windows 10 Pro License Media
Stylus

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0885170274471

UPC: 885170274471

EAN: 0885170274471

UNSPSC: 43211503
