Image Sensor Type:
CCD
White Balance Modes:
Auto
Minimum Illumination:
0.2 lux
Maximum Illumination:
100000 lux
Color Supported:
Color
Tilt:
20° to 45°

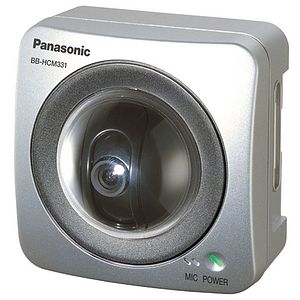

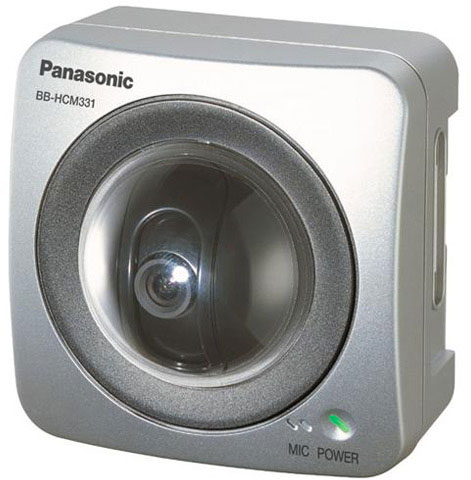

Panasonic BB-HCM331A Security Camera Model Overview
BB-HCM331A security camera.
Panasonic BB-HCM331A Security Camera Overview
BB-HCM331A camera can be viewed and controlled from a standard Web browser, video display, or even a compatible cell phone or PDA. Place them in your home, office, vacation home or almost anywhere else that you'd like to keep an eye on things, with no PC required on location! They are easy to install and operate and require no additional software for the PC that you're viewing them on. Can be used outdoors. Two-way voice communication. CCD sensor for enhanced image expression. Record directly onto SD cards. Simple ethernet connection - No PC required. Control the camera remotely. Record only what you want to record. Create your own free web address. Sensor recording and email alerts.
Display & Graphics
Video
Video Formats:
MJPEG
Maximum Video Resolution:
640 x 480
Image Formats:
JPEG
Lens
Maximum Aperture:
f/1.8
Focus Modes:
Fixed Focus
Minimum Focus Distance:
39.37"
Exposure
Exposure Control:
Auto
Network & Communication
Connectivity Technology:
Wired
Protocols:
- HTTP
- FTP
- SMTP
- TCP
- UDP
- DHCP
- DNS
- ARP
- ICMP
- POP3
- IP
Controls/Indicators
Status Indicators:
- LED Indicator Control: On/Off or On During Access
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
3.9"
Width:
3.9"
Depth:
2.9"
Weight (Approximate):
10.88 oz
Miscellaneous
Package Contents:
- BB-HCM331A Outdoor Network Camera with 2-Way Audio
- Flexible stand and screws
- AC Adaptor
- Sunshade
- Connector Cover
- Rubber Cap
- Putties
- Self-Bonding Tape
- Setup CD-ROM
Additional Information:
- Max. Bandwidth Control: 0.1/0.2/0.3/0.5/1.0/2.0/3.0/5.0Mbps/ unlimited
- Multiple Mounting Options: Wall mount, desk/ceiling mount, tripod mount
- Simultaneous Viewers: 30
- Time & Day Access Control
- Remote External Output Control
- Remote Pan: 60° left and right max. (or less based upon user setting)
- Maximum Pan/Tilt Speed:
- Pan: 100°/sec
- Tilt: 100°/sec
Audio Features:
- 2-Way Audio (Half Duplex)
- CODEC: PCM (64kbps), ADPCM (32kbps), Monaural
- Frequency Range: 300Hz - 3.4kHz
- Input: Built-in Microphone
Multi-Language Interface:
- English
- German
- Spanish
- Italian
- French
- Japanese
System Requirements:
PC:
- Windows 98SE, NT 4.0, 2000, Me, XP (IPv6 : Windows XP only)
- Internet Explorer 5.5 or later/Netscape Navigator 4.7 (The network camera image is not displayed correctly in Netscape 6.x)
Compatibility:
- IPv6
Security Features:
- ID/Password authentication (Administrator / General Users (up to 50))
Platform Supported:
PC
Item Numbers
GTIN:
0037988809752
UPC:
037988809752
EAN:
0037988809752
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Panasonic BB-HCM331A Security Camera is also known as
PCE-BBHCM331A
