Panasonic 8885 Series

The Panasonic 8885 Series has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Panasonic 8885 Series is wall or rack mountable transceiver compatible with NTSC, RS-170A & RS-343A and PAL with full color transmission/reception and real time video transmission/reception.

The 8885 Series, designed for Panasonic Security System products, transmits eight channels of high-quality video with switch selectable bi-directional RS-485 data or bi-directional RS-422 and RS-232 on a single multimode optical fiber. Included in the circuit design is a switch selectable 2 or 4 wire configuration and the ability to select data line termination. Designed to be completely transparent to all camera and monitor manufacturers, this system requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of system status. In addition, two sub-carriers can be added to each video channel using the 500 Series modulators and demodulators. Equipment may be mounted as standalone modules or rack units by the position of the mounting brackets.
8885 Series Options

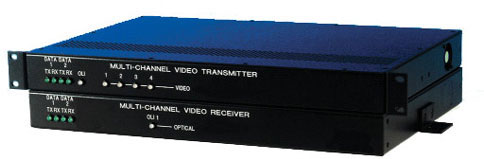

Panasonic 8885 Series (MTX8885)
8 Channel Video Transmitter/RS-232, RS-422, RS-485 Transceiver-Multimode
Panasonic 8885 Series (MRX8885)
8 Channel Video Receiver/RS-232, RS-422, RS-485 Transceiver-Multimode
