Orion 20RTC CCTV Monitor

The Orion 20RTC CCTV Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Orion 20RTC - 20", 800 x 600@75Hz, 3D comb Filter, Deinterlace Function, LCD, 500:1 Contrast Ratio, 500cd/m2 Brightness, 16.7M Color Depth, 80-degree/80-degree Viewing Angle(H/V), VESA, Multi-lingual Menus, Remote Control

25 ms response time provides flicker-free video and images for your viewing pleasure
4:3 aspect ratio is perfect for the office and routine work
800:1 contrast ratio provides great execution for displaying the darkest black and brightest white
Enjoy crisp content and energetic hues with the 300 Nit brightness
VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs

Need a different version? See all Orion 20RTC CCTV Monitors

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Orion 20RTC CCTV Monitor Model Overview

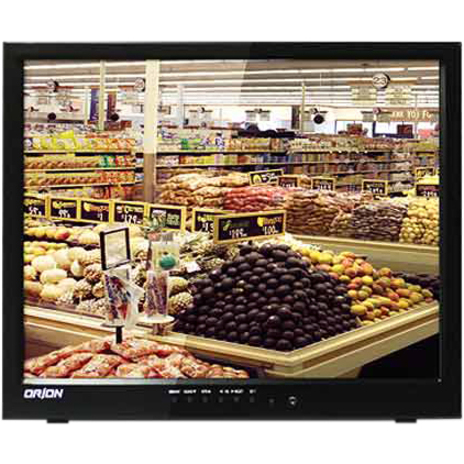

Orion's 20RTC High Brightness LCD features a truly flat LCD screen delivering razor sharp images. Advanced image processing technologies like 3D comb filter and deinterlace function provides perfect image quality. The 20RTC High Brightness LCD's design with DC 12V outlet and mounting hole enables it to be used virtually anywhere. The rigid case comes with a heavy duty metal vessel and LCD protection glass.

Orion 20RTC CCTV Monitor Overview

ORION Images is a true manufacturer of LCD CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

Detailed Specs

Full specifications (PDF)

Technical Information

Number of Screens:

Viewable Screen Size:

20.1"

Screen Mode:

VGA

Response Time:

25 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Adjustable Display Angle:

Yes

Mount Type:

Wall Mountable
Ceiling Mountable
Rack-mountable

Video

Maximum Resolution:

640 x 480

Standard Refresh Rate:

75 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

800:1

Brightness:

300 Nit

Audio

Number of Speakers:

Speakers:

Yes

Interfaces/Ports

VGA:

Yes

S-Video:

Yes

Built-in Devices

Built-in Devices:

Speaker

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

55 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color:

Black

Height:

15"

Width:

17.9"

Depth:

2.7"

Height with Stand:

15.04"

Width with Stand:

17.87"

Depth with Stand:

4.76"

Weight (Approximate):

17.42 lb

Miscellaneous

Certifications & Standards:

CB
FCC(A)
CE-Emc(LVD)

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211902

Reviews

Q&A

Get help from a Barcoding Expert!

The Orion 20RTC CCTV Monitor is also known as ORI-20RTC
