Orion 19RCR CCTV Monitor

Part Number: 19RCR
Model: 19RCR LCD
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA

Product Description:

  19", 1280 x 1024@75Hz, TFT-LCD, 500:1 Contrast Ratio, 250cd/m2 Brightness, 16.7M Color Depth, 170 degree/170 degree Viewing Angle(H/V), VESA, Multi-lingual Menus
Explore all Orion 19RCR LCD CCTV Monitors
Add to Quote
Orion 19RCR CCTV Monitor
Orion 19RCR CCTV Monitor
Orion 19RCR CCTV Monitor
Orion 19RCR CCTV Monitor
Orion 19RCR CCTV Monitor Orion 19RCR CCTV Monitor Orion 19RCR CCTV Monitor Orion 19RCR CCTV Monitor
Full specifications (PDF)

Orion 19RCR LCD CCTV Monitor Model Overview

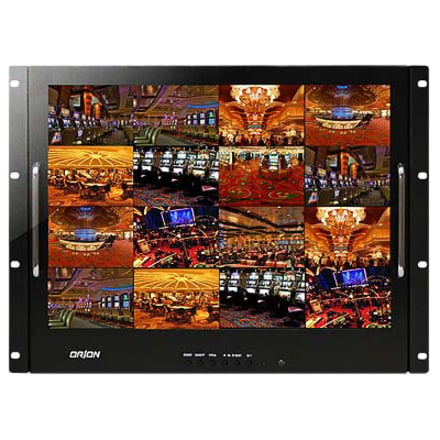

The Orion 19RCR LCD features 19" color LCD TFT monitor ready to install in rackmount cabinets. It is capable of producing extremely detailed images at a high resolution of 1280 x 1024@75Hz. LCD with 500:1 contrast ratio emits sharp contrast between light and dark images. 250 cd/m2 high brightness renders an incredibly bright picture, even in light-drenched environments. Its 170 degree viewing angle provides distortion-free viewing from almost any angle. Multiple inputs for Cameras, DVRs, Time Lapse VCRs and other equipment are also included. It also comes with built-in speakers.
Orion 19RCR CCTV Monitor Overview

ORION Images is a true manufacturer of LCD CCTV monitors. The Orion monitors are true Commercial Grade with FCC Class A Certification Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

Full specifications (PDF)
Technical Information
Number of Screens:
1
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Mount Type:
Rack-mountable
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
250 Nit
Audio
Number of Speakers:
2
Speakers:
Yes
Interfaces/Ports
VGA:
Yes
S-Video:
Yes
Built-in Devices
Built-in Devices:
Speaker
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
42 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
13.9"
Width:
18.9"
Depth:
3.4"
Weight (Approximate):
14 lb
Miscellaneous
Certifications & Standards:
  • CB
  • FCC(A)
  • CE-Emc(LVD)
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
South Korea
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0836228001433
UPC: 836228001433
EAN: 0836228001433
UNSPSC: 43211902
