Orion 17RTCLD CCTV Monitor

Part Number: 17RTCLD
Model: 17RTV LCD
Add to My Shopping List Add to Compare
$1,816.49

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Screens
1
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA

Product Description:

  17RTC LCD CCTV Monitor (17 Inch, LED 5:41280 x 1024 1000 nits, 80 BNC In 2/Out 2, HDMI in 1)
Explore all Orion 17RTV LCD CCTV Monitors
Add to Quote
Orion 17RTCLD CCTV Monitor
Orion 17RTCLD CCTV Monitor
Orion 17RTCLD CCTV Monitor
Orion 17RTCLD CCTV Monitor
Orion 17RTCLD CCTV Monitor Orion 17RTCLD CCTV Monitor Orion 17RTCLD CCTV Monitor Orion 17RTCLD CCTV Monitor
Full specifications (PDF)

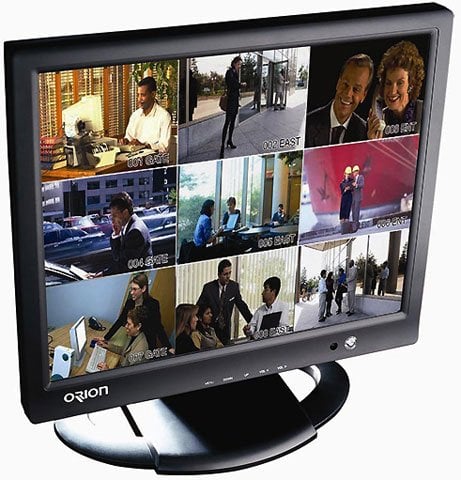

Orion 17RTV LCD CCTV Monitor Model Overview

The ORION 17" LCD Security Monitor Model No. 17RTV is designed for robust functionality in security and industrial applications. This state-of-the-art active matrix TFT-LCD panel delivers razor-sharp images with a resolution of 1280 x 1024 at 75Hz. Whether you're monitoring surveillance feeds or maintaining control over industrial processes, the monitor's versatile design and rigid casing ensure durability and long-lasting performance. Easy cable management and wall or rack mounting options make setup a breeze, while features like built-in speakers further enhance its functionality.


Key Features
  • Screen Size: 17"
  • Contrast Ratio: 500:1
  • Brightness: 300 cd/m²
  • Viewing Angle: 150°/135°
  • Response Time: 13ms
  • Built-in Speakers: Yes
  • Multi-lingual Menus: Available in English, Spanish, French, German, Italian
  • Rack Mountable: Yes

Specifications
  • Resolution: 1280 x 1024 @ 75Hz
  • Aspect Ratio: 4:3
  • Pixel Pitch: 0.264mm
  • Scanning Frequency: 30~75KHz
  • Power Consumption: 50W
  • Power Source: DC 12V / 4A
  • Dimensions: 15"x15.5"x8" / 380x390x203mm
  • Weight: 13.8lbs / 6.2kg
  • Warranty: 1 Year Parts/Labor
  • MTBF: Approx. 30K hrs.
  • Remote Control: Yes
Full specifications (PDF)
Technical Information
Number of Screens:
1
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Aspect Ratio:
5:4
Backlight Technology:
LED
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
1000 Nit
Audio
Speakers:
Yes
Interfaces/Ports
DVI:
Yes
HDMI:
Yes
VGA:
Yes
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
Black
Height:
13.2"
Width:
14.9"
Depth:
3.4"
Weight (Approximate):
13.01 lb
Miscellaneous
Certifications & Standards:
  • TÜV
    • Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211902
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Orion 17RTCLD CCTV Monitor is also known as ORI-17RTCLD
