Full specifications (PDF)
Mount Type:
Rack-mountable

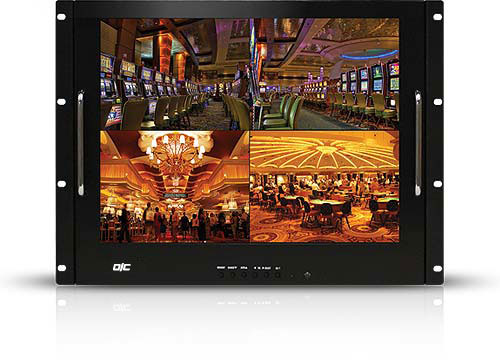

Orion 15RCR Monitor
Part Number:
15RCR
Model:
15RCR
Orion 15RCR Monitor Model Overview
The 15"/17"/19" LCD Security Monitor is designed for optimal performance in rack cabinet installations. Featuring a truly flat TFT-LCD screen, it delivers razor-sharp images at resolutions up to 1280 x 1024@75Hz. With a high contrast ratio of up to 500:1 and brightness levels of 250 cd/m², this monitor ensures clear visuals even in well-lit environments. Its compact design includes built-in speakers and multiple input options, making it versatile for connecting various devices. Perfect for enhancing your security system display, the monitor guarantees distortion-free viewing from nearly any angle.
Key Features:
Specifications:
Key Features:
- Screen Sizes: 15"/17"/19"
- Resolution: 1280 x 1024@75Hz
- Contrast Ratio: Up to 500:1
- Brightness: 250 cd/m²
- Viewing Angle: Up to 170°
- Built-in Speakers: Yes
- Remote Control: Optional
Specifications:
- Cabinet Dimensions (W x H x D): 19.7"x15.9"x2.9"
- Weight: 10.6 lbs
- Power Consumption: 45W
- Power Source: AC110~230V (50/60Hz)
- Video Input Types: BNC, S-Video, RGB
- Audio Input: L/R
- Warranty: 1 Year Parts/Labor
- MTBF: Approx. 50K hours
Orion 15RCR Monitor Overview
The ORION 15RCR, 17RCR and 19RCR LCD CCTV monitors with Tilt capability are designed with a Metal Cabinet and LCD Protective Glass for use in harsh environments ready to be installed into rack mount cabinets. The RCR series is ideal for Factory Control Rooms, Automotive, Marine, Industrial Panel PC, and special Kiosk applications.
Technical Information
Physical Characteristics
Height:
12.1"
Width:
18.9"
Depth:
3.4"
Weight (Approximate):
9.48 lb
Miscellaneous
Additional Information:
- Screen Size: 15"
- 1024 x 768 Resolution, 250 Nits, 700: 1 Contrast Ratio
- Response Time: Less then 8ms (Typical)
- 2D Comb Filter
- 2W x 2 Built-In Speakers
- Operating Temperature: 0 ~ 50° C / 32 ~ 122° F
- Storage Temperature: -20 ~ 60° C / -4 ~ 140° F
- Material: Steel
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0836228001419
UPC:
836228001419
EAN:
0836228001419
UNSPSC:
43211902
