Opticon – Barcode Scanner – Scanner Only

Part Number: PR11BU1-00
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$328.80

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D: JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic2D: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code OCR: MRTD comply to ICAO Doc 9303 standard (Passport, Visa-A/B, Official Travel Documents1/2)Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Dutch KIX code, UK Postal, Australian Postal, Postal JPN, POSTNET, PLANET
Light Source
LED

Product Description:

  HIGH SPEED 2D CMOS IMAGER, BLACK, USB SCANS UP TO 120 FRAMES PER SECOND. RAPIDLY SCANS AND DECODES 1D AND 2D BARCODES, FROM BOTH MRTD (MACHINE READABLE TRAVEL DOCUMENT) AND FROM MOBILE DEVICE SCREENS.
Explore all Opticon Parts Accessories
Add to Quote
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner
Opticon PR11BU1-00 Barcode Scanner Opticon PR11BU1-00 Barcode Scanner Opticon PR11BU1-00 Barcode Scanner Opticon PR11BU1-00 Barcode Scanner Opticon PR11BU1-00 Barcode Scanner Opticon PR11BU1-00 Barcode Scanner Opticon PR11BU1-00 Barcode Scanner

Opticon Parts Accessory Model Overview

Products and parts from Opticon.

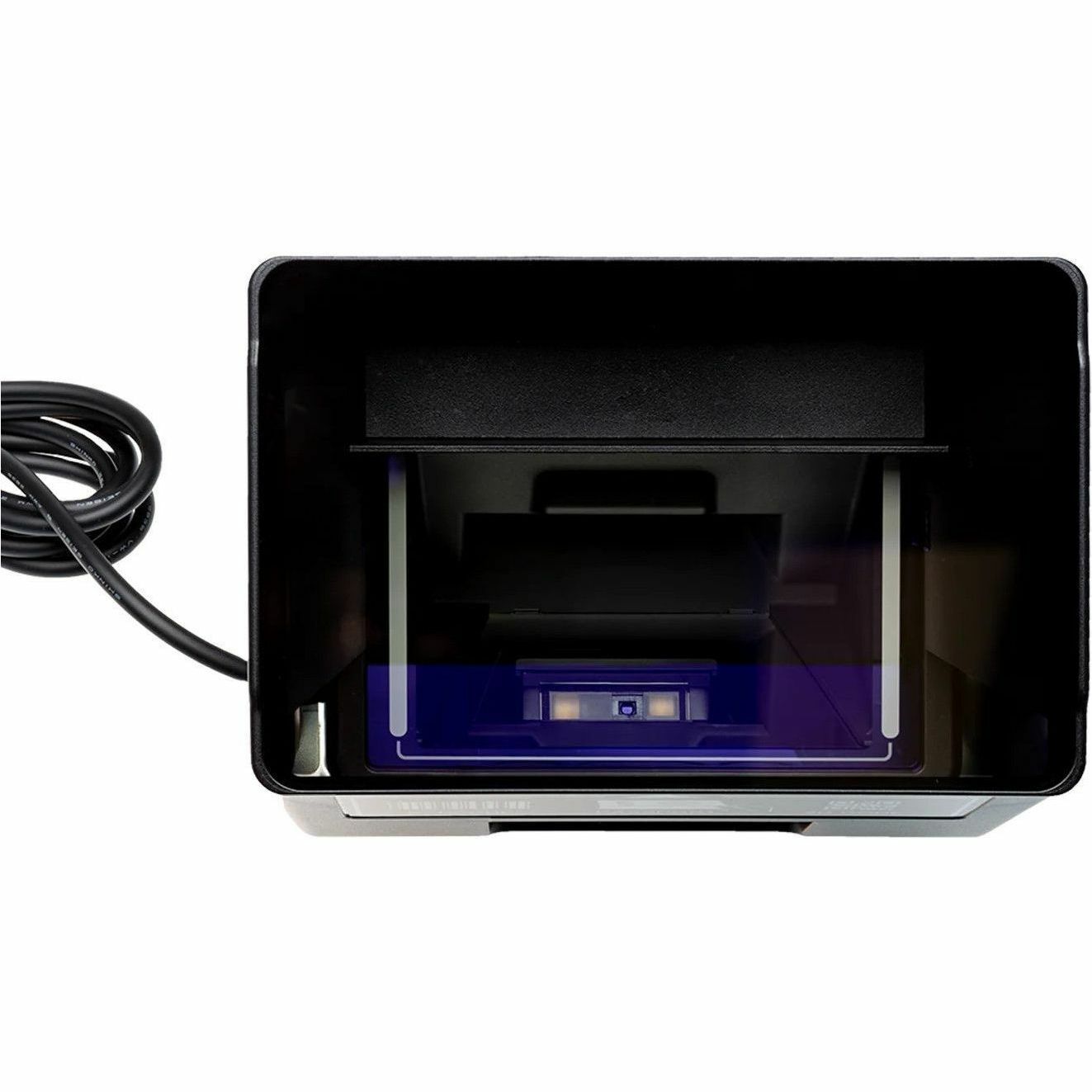

Opticon PR11BU1-00 Barcode Scanner Overview

The PR-11 is a high speed, omnidirectional 2D imager barcode scanner that incorporates Opticon's latest digital imaging technology. The PR-11 is used as a standalone scanner for hands-free, ultra-fast 1D or 2D barcode scanning. Designed to seamlessly scan many forms of identification including optimized reading of MRTD (Machine Readable Travel Document), the PR-11 is ideal in applications such as customs, airport security and identification control. Product highlights of the PR-11 include:

  • High speed 2D CMOS imager-omnidirectionally scans up to 120 frames per second
  • Rapidly scans and decodes 1D and 2D barcodes, from both MRTD (Machine Readable Travel Document) and from mobile device screens
  • Incorporates MDI-4100 scan engine for improved scanning of low quality barcodes and providing exceptional motion tolerance for moving applications
  • Data editing program function captures up to 16 codes on multiple images simultaneously
  • Ideal size for scanning different forms of identification
  • Compact form factor: 5.57" x 5.07" x 4.3" (w x h x d)
  • Trigger modes: manual and auto-trigger
  • Flexible cable outlet: 4 directions
  • Communication interfaces: USB (HID, COM)
  • Available in black or white
  • Anti-microbial coating (white version)
  • Two year warranty


Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic

2D:

  • Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code OCR: MRTD comply to ICAO Doc 9303 standard (Passport, Visa-A/B, Official Travel Documents1/2)

Postal Code:

  • Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Dutch KIX code, UK Postal, Australian Postal, Postal JPN, POSTNET, PLANET
Light Source:
LED
Image Sensor Type:
  • CMOS
  • Imager
Scan Mode:
Trigger
Features:
Vibration
Reading Angle (Skew):
360°
Reading Angle (Pitch):
360°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
Maximum Ambient Light:
100000 lux
Drop Specification:

2.46 ft (0.75 m) drop onto concrete surface

Image Sensor Resolution:
1280 x 800
Interfaces/Ports
Host Interface:
USB
Environmental Conditions
Operating Temperature:
23°F (-5°C) to 113°F (45°C)
Storage Temperature:
-22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing):
10% to 90%
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
5.1"
Width:
5.6"
Depth:
4.3"
Weight (Approximate):
1.15 lb
Miscellaneous
Application/Usage:
  • Passport
  • Airport Security
  • Custom
  • Identification Control
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Opticon PR11BU1-00 Barcode Scanner is also known as OPT-PR11BU100
