Opticon OPR3201U1-00 Barcode Scanner

Opticon OPR3201U1-03 Barcode Scanner A newer version of this item is available.
It is replaced by the Opticon OPR3201U1-03 Barcode Scanner.
Opticon OPR 3201 - OPR 3201 Rugged Scanner (Handheld, USB HID, Stand and Cable) - Color: Black
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Powerful laser scan source provides 100 scan/s decode rate
  • Scan barcodes with a staggering speed of 100 scan/s
Read More

Need a different version? See all Opticon OPR 3201 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Opticon OPR3201U1-00 Barcode Scanner
Opticon OPR3201U1-00 Barcode Scanner Opticon OPR3201U1-00 Barcode Scanner
Opticon OPR3201U1-00 Barcode Scanner
Opticon OPR3201U1-00 Barcode Scanner
Full specifications (PDF)
Opticon OPR 3201 Barcode Scanner Model Overview

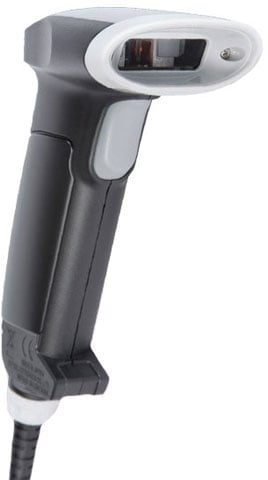

The Opticon OPR 3201 barcode laser scanner with pistol grip and auto-trigger stand delivers reliable performance using Opticon's proven scanning technology. The high performance laser scanner provides a fast and accurate reading of barcodes, even when they are printed with low contrast or high density. The scanner is plug-and-play ready right out of the box. The OPR 3201 enables quick connection via RS232C, keyboard wedge, or USB, and the ability to put Opticon's scanning performance to immediate operation.
Opticon OPR3201U1-00 Barcode Scanner Overview

OPR3201 1D barcode laser scanner with pistol grip enables reliable scanning. The OPR3201 weighs only 80 grams, which is extremely light for a gun type scanner. This solid scanner withstands drops up to 1.5 meter onto concrete.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • JAN/UPC/EAN Include Add On
  • Codabar/NW-7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1-128 (EAN-128)
  • GS1 DataBar (RSS)
  • IATA
  • Industrial 2of5
  • Interleaved 2of5
  • ISBN-ISMN-ISSN
  • Matrix 2of5
  • MSI/Plessey
  • S-Code
  • Telepen
  • Tri-Optic
  • UK/Plessey

2D code:

  • Composite codes
  • MicroPDF417
  • PDF417

Postal code:

  • Chinese Post
  • Korean Postal Authority code
Light Source:
Laser
Scan Rate:
100 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.57" - 19.69"@39mil
  • 0.79" - 13.78"@20mil
  • 0.79" - 7.87"@10mil
  • 0.79" - 3.94"@6mil
  • 1.18" - 2.76"@5mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
5.9"
Width:
2.2"
Depth:
4.3"
Weight (Approximate):
2.80 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Opticon OPR3201U1-00 Barcode Scanner is also known as OPT-OPR3201U100 or OPR3201U100.
