Opticon OPR3001U1-01 Barcode Scanner

The Opticon OPR3001U1-01 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Opticon OPR 3001 - OPR 3001 Rugged Laser Scanner (USB -HID, Includes Cable)
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued Need Assistance?
Add to Quote
Opticon OPR 3001 Barcode Scanner Model Overview

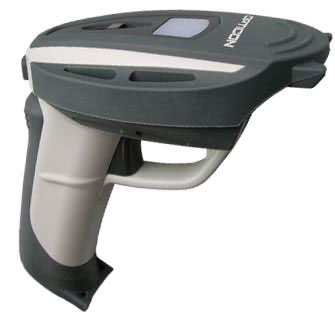

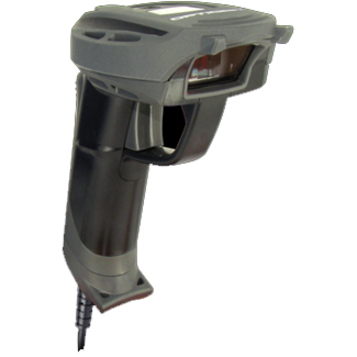

The OPR 3001 ruggedised hand-held laser scanner from Opticon is a gun-type scanner with a new robust design. The OPR 3001 scanner engine has a built-in decoder, providing an excellent reading performance and reliability. Built with a large blue LED, Opticon's OPR 3001 scanner has a loud, clear buzzer to signify a good read to the operator. The OPR 3001 laser barcode scanner has an ergonomic rubber grip and a finger guard surrounding the trigger, providing user comfort and protection.
Opticon OPR3001U1-01 Barcode Scanner Overview

The OPR3001 is an ergonomic yet lightweight handheld scanner that scans with confidence, delivering reliability and durability in harsh conditions, extreme temperatures and humidity.

This high-performance scanning device features a rubberized pistol grip and trigger guard, sealed up to IP 54 standards for operation in dirty and harsh conditions. The OPR3001, withstanding multiple drops up to 2 meters onto concrete, has been awarded with the Good Design Award. This is Japan's most prestigious industrial design award, from the Japan Industrial Design Promotion Organization.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:

1D Codes:

  • JAN/UPC/EAN incl. add on
  • Codabar/NW-7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1-128 (EAN-128)
  • GS1 DataBar (RSS)
  • IATA
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBN-ISMN-ISSN
  • Matrix 2 of 5
  • MSI/Plessey
  • S-Code
  • Telepen
  • Tri-Optic
  • UK/Plessey

Postal Codes:

  • Chinese Post
  • Korean Postal Authority code

2D Codes:

  • Composite Codes
  • MicroPDF417
  • PDF417
Light Source:
Laser
Scan Rate:
100 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.18" - 23.23"@39mil
  • 0.39" - 14.17"@20mil
  • 0.39" - 7.87"@10mil
  • 0.39" - 3.54"@6mil
  • 0.79" - 2.36"@5mil - at PCS 0.9 Code 39
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Color:
Gray
Height:
6.1"
Width:
2.7"
Depth:
5.9"
Weight (Approximate):
8.10 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Opticon OPR3001U1-01 Barcode Scanner is also known as OPT-OPR3001U1-01 or OPR3001U101.
