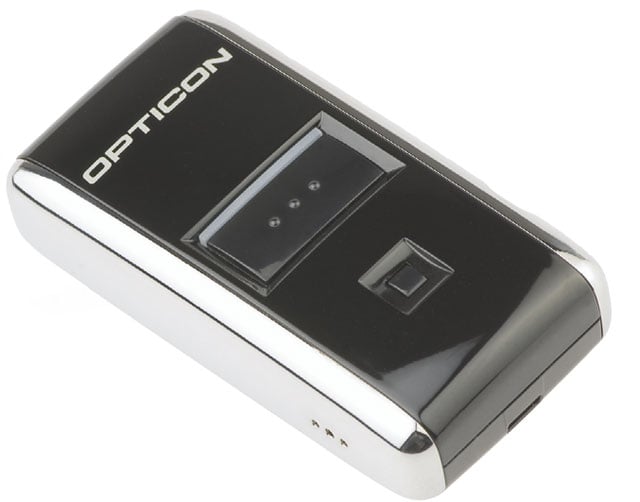

Opticon OPN 2001 – Barcode Scanner – Cordless – 1D – Cable Only

Part Number: OPN-2001-00
Model: OPN 2001
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  Opticon OPN2001 Series Pocket Batch Scanner, USB kit. Scans 1D barcodes, stores over 15,000 barcodes plus timestamps. Audible and visible feedback after a successful scan. Includes USB cable, battery, and hand-strap.

Opticon OPN 2001 Barcode Scanner Model Overview

OPN 2001 pocket memory scanner makes barcode data collection simple for anyone. Using this scanner is straightforward - scan a barcode and it will be stored automatically. When you make a mistake, the lower button allows you to re-scan the barcode in order to remove the item from memory. For easy data transfer the device is equipped with a standard USB port, which is also used to charge the internal battery.
Opticon OPN-2001-00 Barcode Scanner Overview

The OPN2001, part of the OPN2000 series is a pocket memory scanner, enabling convenient barcode data collection. This device enables storage and removal of barcode scans. The collected barcodes can be transmitted by a USB cable.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D:

  • JAN/UPC/EAN incl. add on
  • Codabar/NW-7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1-128 (EAN-128)
  • GS1 DataBar (RSS)
  • IATA
  • Industrial 2of5
  • Interleaved 2of5
  • ISBN-ISSN
  • Matrix 2of5
  • MSI/Plessey
  • S-Code
  • Telepen
  • Tri-Optic
  • UK/Plessey

Postal Code:

  • Chinese Post
  • Korean Postal Authority code
Light Source:
Laser
Scan Rate:
100 scan/s
Depth of Field:
  • 2.36" - 22.44"@39mil
  • 1.57" - 14.17"@20mil
  • 1.57" - 8.66"@10mil
  • 1.57" - 4.72"@6mil
  • 1.97" - 3.94"@5mil - at PCS 0.9 UPC
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Height:
2.4"
Width:
1.3"
Depth:
0.6"
Weight (Approximate):
1 oz
Miscellaneous
Package Contents:
  • OPN2001 Handheld Bar Code Reader
  • USB Cable
  • Neck Strap
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0016364253716
UPC: 016364253716
EAN: 0016364253716
UNSPSC: 43211701
