Opticon OPL 9815 – Barcode Scanner

Part Number: OPL-9815-SK1
Model: OPL 9815
3-year Premium Plus ($275.00)
No, stay at premium support package
Add to My Shopping List Add to Compare
$452.95

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D
Barcode Symbology Supported
1D: JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN -128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/PlesseyPostal Codes: Chinese Post, Korean Postal Authority code
Light Source
Laser

Product Description:

  1D Laser, Bluetooth, GPS Include Battery, cradle, Power supply, And USB Cable. Interface Cables And Charging Cradle Sold Separately.
Explore all Opticon OPL 9815 Barcode Scanners
Add to Quote

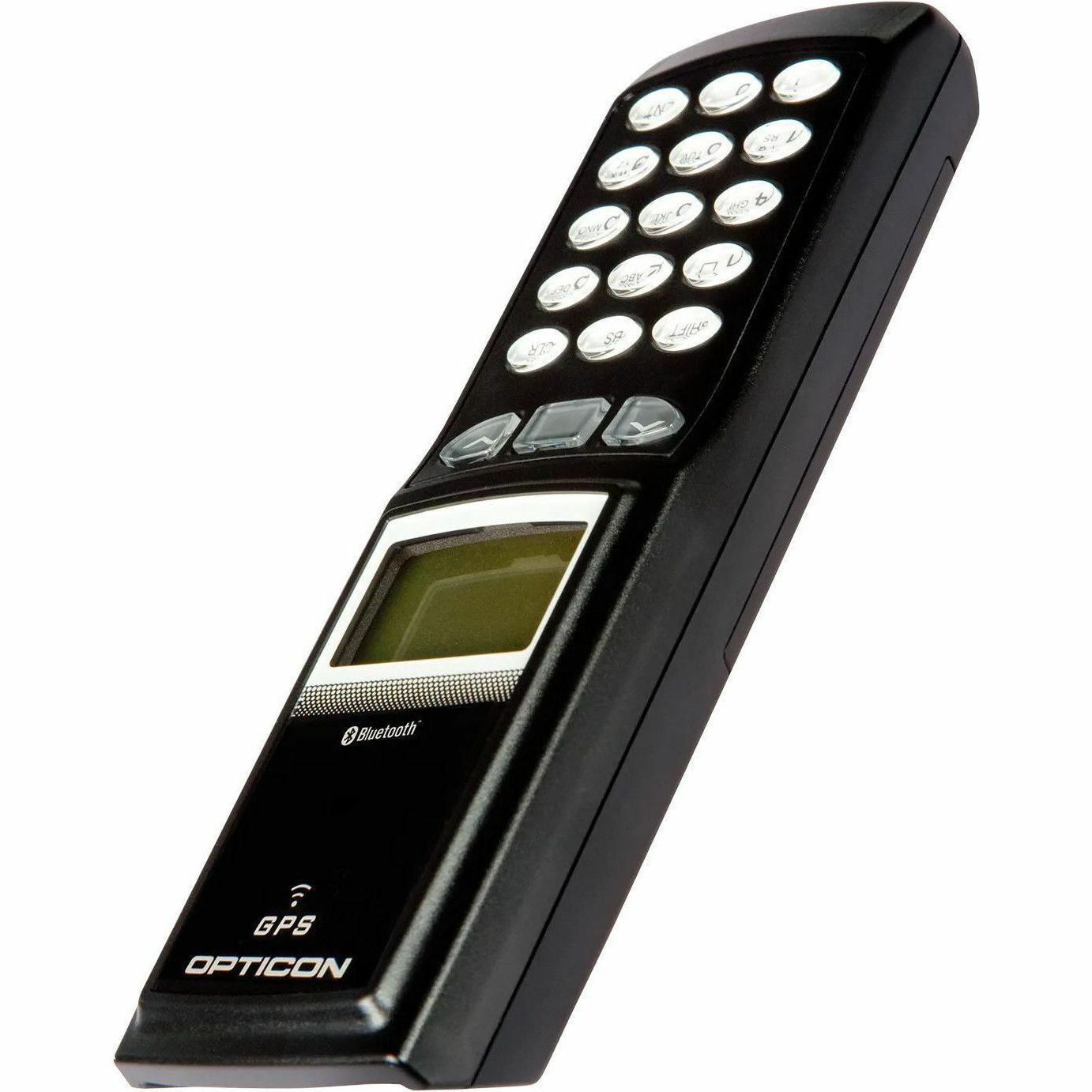

Opticon OPL-9815-SK1 Barcode Scanner
Opticon OPL-9815-SK1 Barcode Scanner
Opticon OPL-9815-SK1 Barcode Scanner
Opticon OPL-9815-SK1 Barcode Scanner
Opticon OPL-9815-SK1 Barcode Scanner Opticon OPL-9815-SK1 Barcode Scanner Opticon OPL-9815-SK1 Barcode Scanner Opticon OPL-9815-SK1 Barcode Scanner
Full specifications (PDF)

Opticon OPL 9815 Barcode Scanner Model Overview

The Opticon OPL9815 GPS Data Collector is a powerful handheld solution designed for seAMLess data collection with robust features. Equipped with a wireless Bluetooth™ laser barcode scanner, it enables efficient scanning of various barcode symbologies. The integrated GPS and Real Time Clock functionalities provide precise location and time stamping, making it perfect for logistics, inventory, and fieldwork applications. With a durable design rated at IP 54, and an impressive battery life, this data collector allows users to operate confidently in diverse environments.
Key Features
  • Wireless Bluetooth™ laser barcode scanner
  • Integrated GPS and Real Time Clock for accurate location and time stamping
  • 4MB Flash ROM and 512KB RAM for ample data storage
  • 18-key operation for user-friendly navigation
  • Monochrome 112x64 pixel screen with backlight for visibility
  • 100 scans per second processing speed
  • 48 hours minimum standby time
  • Durability: IP 54 rated for water and dust resistance

Specifications
  • Operation:
    • CPU: 96Mhz Renesas RX
    • O/S: Proprietary
    • Software: Programmable in C-language
  • Memory:
    • Flash ROM: 4MB
    • RAM: 512KB
  • Display:
    • 112 x 64 pixels, monochrome, backlit
  • Communication:
    • Bluetooth™: 2.1 HID & SPP
    • IrDA: Ver. 1.2
  • Power:
    • Rechargeable Lithium-Ion Battery: 3.7V 1000mAh
    • Backup Battery: Rechargeable 3mAh
  • Durability:
    • Operational Temperature: 0 to 40°C (32 to 104°F)
    • Drop test: 1.5m (5ft)
  • Dimensions:
    • 44 x 140 x 22mm (1.73 x 5.51 x 0.87in)
    • Weight: circa 110g (3.8 oz)
Opticon OPL-9815-SK1 Barcode Scanner Overview

Bluetooth Laser Barcode Scanner with GPS, Screen, and 18-key Operation

The OPL-9815, a Bluetooth™ laser scanner from Opticon, features GPS, a real-time clock and 18-key operation for data-capture applications that require location and time stamps, as well as data entry. The OPL-9815 is perfect for inventory, logistics, warehouse and retail applications. Since the OPL-9815 is programmable, channel partners can create custom solutions around the OPL-9815 using the free SDK from Opticon.

The OPL-9815 can transmit data via Bluetooth™ connection, or store data onboard for later transfer via IrDA through a charging cradle (sold separately). The charging cradle is available with a serial, modem or GSM interface. OPL-9815 product highlights include:

  • Wireless laser barcode scanner with GPS - featuring 100 scans per second speed
  • HID or SPP Bluetooth™ transmission of data to a host
  • 512KB of flash ROM and 512KB of RAM
  • 18-key operation
  • Monochrome 112x64 pixel screen with back light
  • Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
  • Compact size and weight - 1.7"W x 5.5"L x 0.9"D; 3.8 oz
  • Rechargeable Lithium-Ion battery
  • Minimum standby time is 48 hours
  • IP54 enclosure rating; withstands 5-foot drop to concrete
  • Data can also be transmitted to host via IrDA when OPL-9815 is placed in charging cradle
  • Two-year warranty
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:

1D:

  • JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN -128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal Codes:

  • Chinese Post, Korean Postal Authority code
Light Source:
Laser
Scan Rate:
100 scan/s
Depth of Field:
  • 39 mil (1.0 mm) 2.36 - 11.81 in (60 - 300 mm)
  • 20 mil (0.5 mm) 1.38 - 8.27 in (35 - 210 mm)
  • 10 mil (0.25 mm) 1.38 - 4.72 in (35 - 120 mm)
  • 6 mil (0.15 mm) 1.38 - 2.76 in (35 - 70 mm)
Scanning Distance:
11.81"
Features:
GPS
Display Screen:
Yes
Number of Keys:
18
Keypad Type:
Alphanumeric
Reading Angle (Skew):
50°
Reading Angle (Pitch):
25°
Maximum Ambient Light:
50000 lux
Drop Specification:

5 ft (1.5 m) drop onto concrete surface

Minimum Element Resolution (Code 39):
6 mil
Maximum Element Resolution (Code 39):
39 mil
Memory
Standard Memory:
512 MB
Flash Memory:
1 MB
Processor & Chipset
Processor Speed:
96 MHz
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
1100 mAh
Maximum Battery Run Time:
72 Hour
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing):
20% to 85%
Physical Characteristics
Rugged:
Yes
Color Family:
Black
Product Color:
Black
Product Material:
Acrylonitrile Butadiene Styrene (ABS)
Durability:
Dust Resistant
Height:
5.5"
Width:
1.7"
Depth:
0.9"
Weight (Approximate):
4.10 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP54
Application/Usage:
  • Logistics
  • Warehouse
  • Retail
  • Inventory
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
