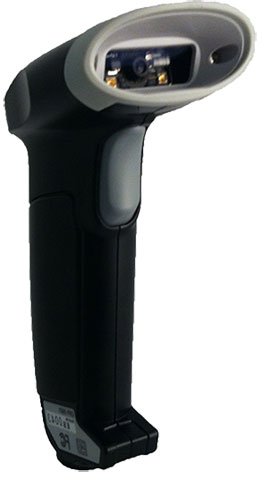

Opticon OPI3601 – Barcode Scanner – 1D – Scanner Only

Experience high-speed scanning with the OPI3601 2D CMOS imager, designed for efficient data capture across various applications. This robust scanner features advanced image processing capabilities and a user-friendly interface, making it ideal for retail, logistics, and industrial environments. Its durable design ensures reliability with a drop-proof construction, while the versatile connectivity options enable easy integration into existing systems. The OPI3601 is your solution for quick, accurate scanning in a compact format.

Key Features:

• High speed scanning for increased productivity
• Data editing program for seamless data handling
• LED aiming for precise targeting
• Plug & play setup for hassle-free installation
• 1.5 m drop proof design for durability

Specifications:

• Operating Indicators:
  • Visual: 1 LED (red/green/orange)
  • Non-Visual: Buzzer
• Entry Options:
  • 1 scan key
• Communication:
  • RS232: DB9 PTF connector with external power supply
  • Keyboard Wedge: Mini-DIN6 F/M connector
  • USB: Ver. 2.0, HID/VCP, USB-A connector
• Power:
  • Voltage Requirement: 6V +/- 5%
  • Current Consumption: Max. 350 mA (typical use)
• 2D Imager Optics:
  • Light Source: Green aiming LED, red illumination LEDs
  • Scan Method: CMOS area sensor, 752 x 480 pixels
• Durability:
  • Temperature in Operation: -20 to 50°C
  • Drop Test: 1.5 m onto concrete
  • Protection Rate: IP 42
• Dimensions:
  • 56 x 148.6 x 108.1 mm
  • Weight: Ca. 85 g (excl. cable)
• Compliance:
  • CE, FCC, VCCI, ROHS compliant
