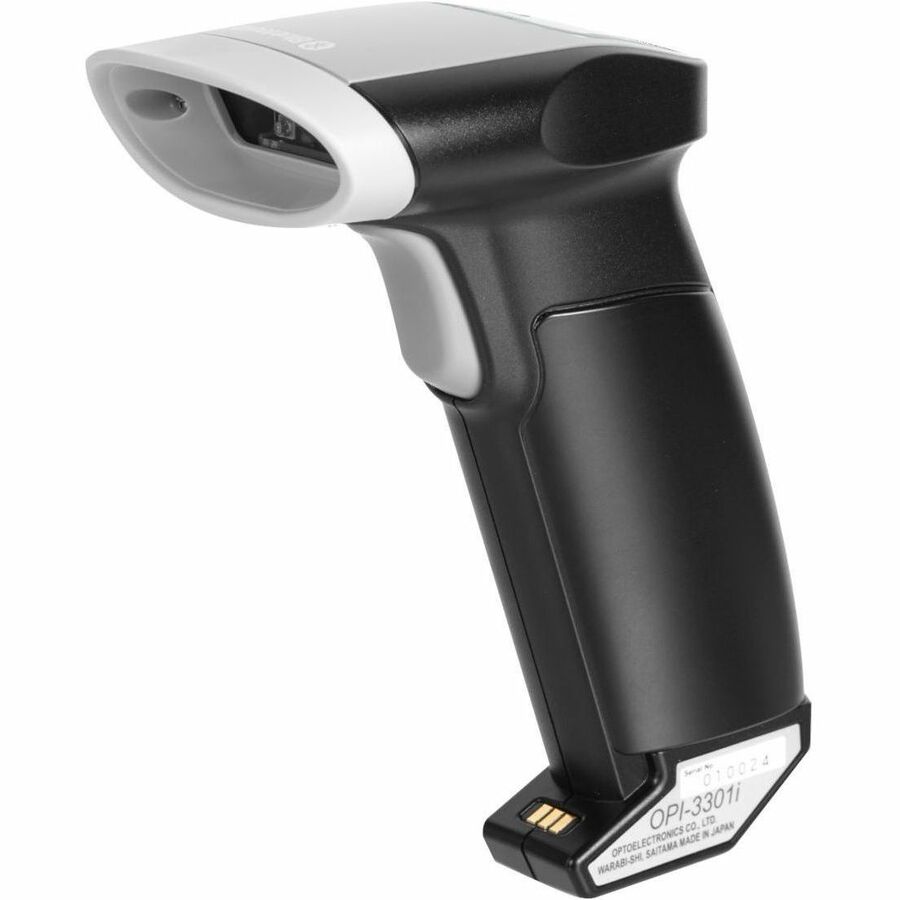

Opticon OPC-3301i – Barcode Scanner – 1D – Scanner Only

Part Number: OPI3301i-00
Model: OPC-3301i
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$298.95

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  2D Imager, Bluetooth, MFI Certified. Cradle sold separately.
Explore all Opticon OPC-3301i Barcode Scanners
Add to Quote
Opticon OPI3301i-00 Barcode Scanner
Opticon OPI3301i-00 Barcode Scanner
Opticon OPI3301i-00 Barcode Scanner
Opticon OPI3301i-00 Barcode Scanner Opticon OPI3301i-00 Barcode Scanner Opticon OPI3301i-00 Barcode Scanner
Full specifications (PDF)

Opticon OPC-3301i Barcode Scanner Model Overview

The Opticon OPC-3301i Wireless CCD Barcode Scanner is designed for efficiency, allowing speedy barcode scanning at an impressive rate of 300 scans per second. Its remarkable capabilities include scanning 1D barcodes from various surfaces, including LCD screens and mobile devices, as well as negative barcodes. Compact and lightweight, this scanner is built for durability, featuring an IP42 rating against dust and moisture, and can withstand drops from up to 5 feet. With support for multiple Bluetooth profiles and a long-lasting battery life, it’s the perfect solution for robust, on-the-go scanning needs.

Key features:
  • Ultra-fast scanning: 300 scans per second.
  • Versatile barcode reading: Supports reading from LCD and negative barcodes.
  • Compact design: Dimensions of 2.20" x 5.20" x 4.45" and weight of 4.3 ounces.
  • Durability: IP42 rating and drop-tested from 5 feet.
  • Long battery life: Approx. 72 hours standby and 48 hours reading.
  • Warranty: Backed by a two-year warranty.


Specifications:
  • Memory: 1MB SDRAM, 1MB Flash ROM
  • Bluetooth: Version 2.1, SPP/HID
  • Battery: Lithium-ion 3.7V 1100mAh
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Dimensions: 4.45 x 5.20 x 2.20 in (113 x 132 x 56 mm)
  • Weight: Approximately 4.3 oz (127 g) including battery
  • Durability: IP42, vibration tested, operational humidity 20-85% (non-condensing)
  • Charging Method: Cradle CHG-3201 (sold separately)
Opticon OPI3301i-00 Barcode Scanner Overview

The Opticon OPI-3301i features a high speed, 2D Imager barcode scanner and a lightweight, ergonomic design that is perfect for all day, everyday use in a wide variety of industries including retail, healthcare, warehousing and distribution, and transportation and logistics. The cordless, cable-free freedom of Bluetooth® wireless communication offers the ability to roam away from the host device, which improves productivity and scanning convenience. The OPI-3301i is built to survive and thrive due to its IP42 sealing rating against dust and moisture and 5 foot drop specification. The scanner is also Apple MFI certified for the added ease of connecting and communicating with iOS host devices. OPI-3301i product highlights include:

  • Wireless 2D CMOS imager scanner that rapidly scans and decodes 1D and 2D barcodes at 60 Frames Per Second (FPS)
  • Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
  • Memory: 1MB SDRAM, 1MB Flash ROM
  • Small form factor: 2.20" x 5.32" x 4.45" (WxHxD) and 4.5 ounces including battery
  • Extremely durable: IP42 rating against dust and moisture and survives 5 ft drop to concrete
  • Charges via cradle (CHG-3201-sold separately), Bluetooth dongle available (OPA-3201)
  • Backed by a two year warranty


Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS ), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN -ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

2D:

  • Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

POSTAL CODES:

  • Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
Light Source:
Laser
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scanning Distance:
9.84"
Features:
  • Beep
  • Notification LED
  • Vibration
  • Ergonomic Design
Number of Keys:
1
Field of View (Horizontal):
40°
Field of View (Vertical):
26°
Reading Angle (Skew):
50°
Reading Angle (Pitch):
50°
Reading Angle (Roll):
180°
Image Formats:
  • BMP
  • JPEG
Maximum Ambient Light:
100000 lux
Drop Specification:

5 ft (1.5 m) drop onto concrete surface

Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
0.21"
Image Sensor Resolution:
752 x 480
Illumination Type:
LED
Memory
Standard Memory:
1 MB
Flash Memory:
1 MB
Network & Communication
Bluetooth:
Yes
Power Description
Input Current:
330 mA
Standby Current:
15 mA
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
1100 mAh
Maximum Battery Run Time:
3 Hour
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-14°F (-25.6°C) to 140°F (60°C)
Humidity (Non-condensing):
20% to 85%
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Product Material:
Acrylonitrile Butadiene Styrene (ABS)
Durability:
Dust Resistant
Height:
5.3"
Width:
2.2"
Depth:
4.5"
Weight (Approximate):
4.66 oz
Miscellaneous
Package Contents:
  • OPI-3301i 2D CMOS Imager Barcode Scanner
  • Wrist Strap
Compatibility:

Apple iPad, iPhone, iPod

Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Retail
  • Healthcare
  • Warehouse
  • Distribution
  • Transportation
  • Logistics
Country of Origin:
Japan
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
