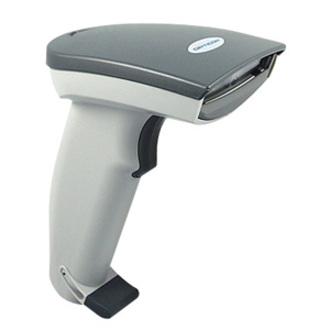

Opticon LGZ7225RWES-007 Barcode Scanner

The Opticon LGZ7225RWES-007 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Opticon LGZ 7225 - LGZ Series Long Range CCD Scanner (Wedge, PS2 Cables Included)
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 200 scan/s
Read More

Need a different version? See all Opticon LGZ 7225 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Opticon LGZ7225RWES-007 Barcode Scanner
Opticon LGZ7225RWES-007 Barcode Scanner Opticon LGZ7225RWES-007 Barcode Scanner
Opticon LGZ7225RWES-007 Barcode Scanner
Opticon LGZ7225RWES-007 Barcode Scanner
Full specifications (PDF)

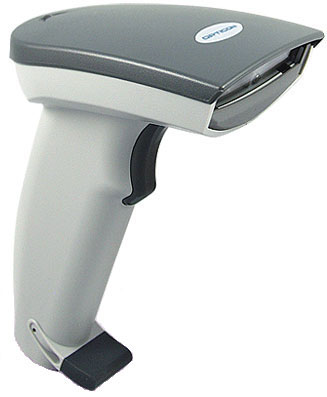

Opticon LGZ 7225 Barcode Scanner Model Overview
The LGZ 7225 continues Opticon's reputation for rugged, durable and long lasting scanners. It has no moving parts yet operates at a fast 200 scans per second. When used with its optional adjustable stand, the LGZ 7225 can perform as a "hands-free" scanner. The Opticon LGZ 7225 scanners are available in keyboard wedge, RS232 and USB interfaces.
Opticon LGZ7225RWES-007 Barcode Scanner Overview

The LGZ 7225 reads high density symbols (4 mil) and yet can read lower density symbols from as far away as twenty inches or more. High scan speed and superior optical resolution are combined in a scanner which yields outstanding reading capability and aggressive performance.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • WPC: EAN (EAN13, EAN8)
  • UPC (UPC-A, UPC-E)
  • Code 39
  • Codabar (NW-7)
  • Code 128
  • Code 93
  • MSI-Plessey
  • Interleaved 2 of 5
  • IATA
  • Code 11
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
200 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1.3" - 3.5"@4mil
  • 0.1" - 9.7"@10mil
  • 0" - 15"@15mil
  • 0.2" - 20"@20mil
Scanning Distance:
20"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Form Factor:
Handheld
Height:
5.3"
Width:
2.8"
Depth:
4.5"
Weight (Approximate):
5.30 oz
Miscellaneous
Additional Information:

USB Cable separate

Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Opticon LGZ7225RWES-007 Barcode Scanner is also known as OPT-LGZ7225RWES-007 or LGZ7225RWES007.
