Opticon – Barcode Scanner – Scanner with Cable and Stand

Part Number: L22XWU1-03
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$173.12
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
BARCODE (1D): UPC-A UPC-E UPC-E1 UPC-A Add-on UPC-E Add-on EAN-13 EAN-8 EAN-13 Add-on/EAN-8 Add-on JAN-8 JAN-13 Code 39 Tri-Optic Codabar Industrial 2 of 5 Interleaved 2 of 5 S-code Code 93 Code 128 GS1-128 IATA MSI/Plessey UK/Plessey Telepen Code 11 Matrix 2 of 5 BARCODE (2D): PDF417 MicroPDF417 Codablock F QR Code Micro QR Code Data Matrix (ECC 200) Maxi Code (Modes 2 to 5) Aztec Code Chinese Sensible Code OCR-B POSTAL CODE: Chinese Post Matrix 2of5 Korean Postal Authority code Japanese Postal Intelligent Mail Barcode POSTNET PLANET Netherlands KIX Code Australian Postal UK Postal 4-State Mailmark Barcode
Light Source
LED

Product Description:

  L-22X, 2D IMAGER, USB, STAND, WHITE
Explore all Opticon Parts Accessories
Add to Quote

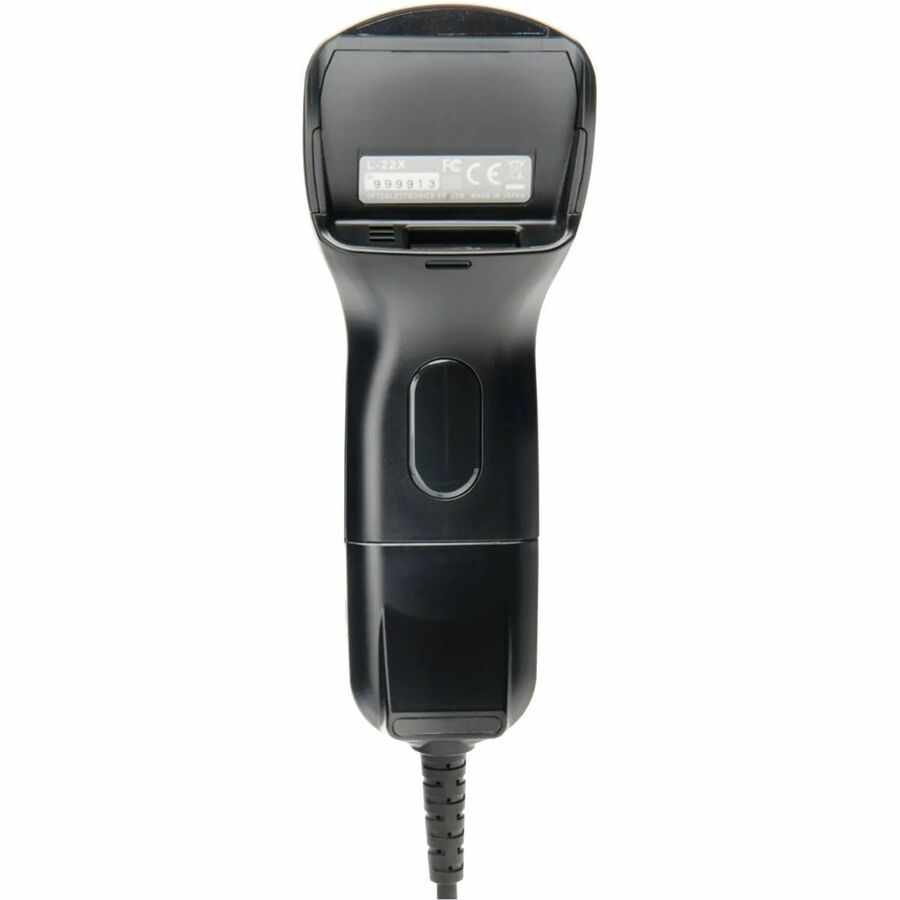

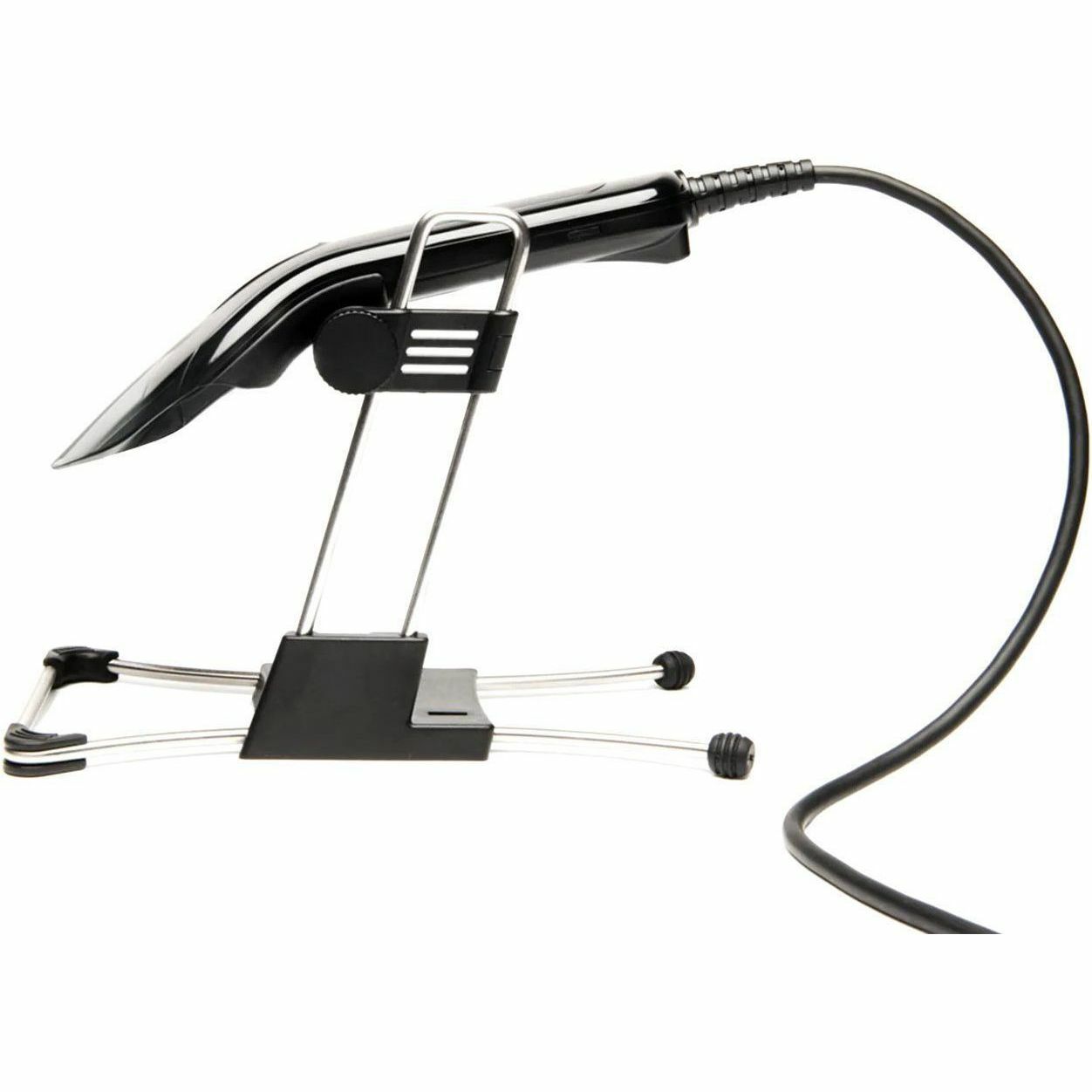

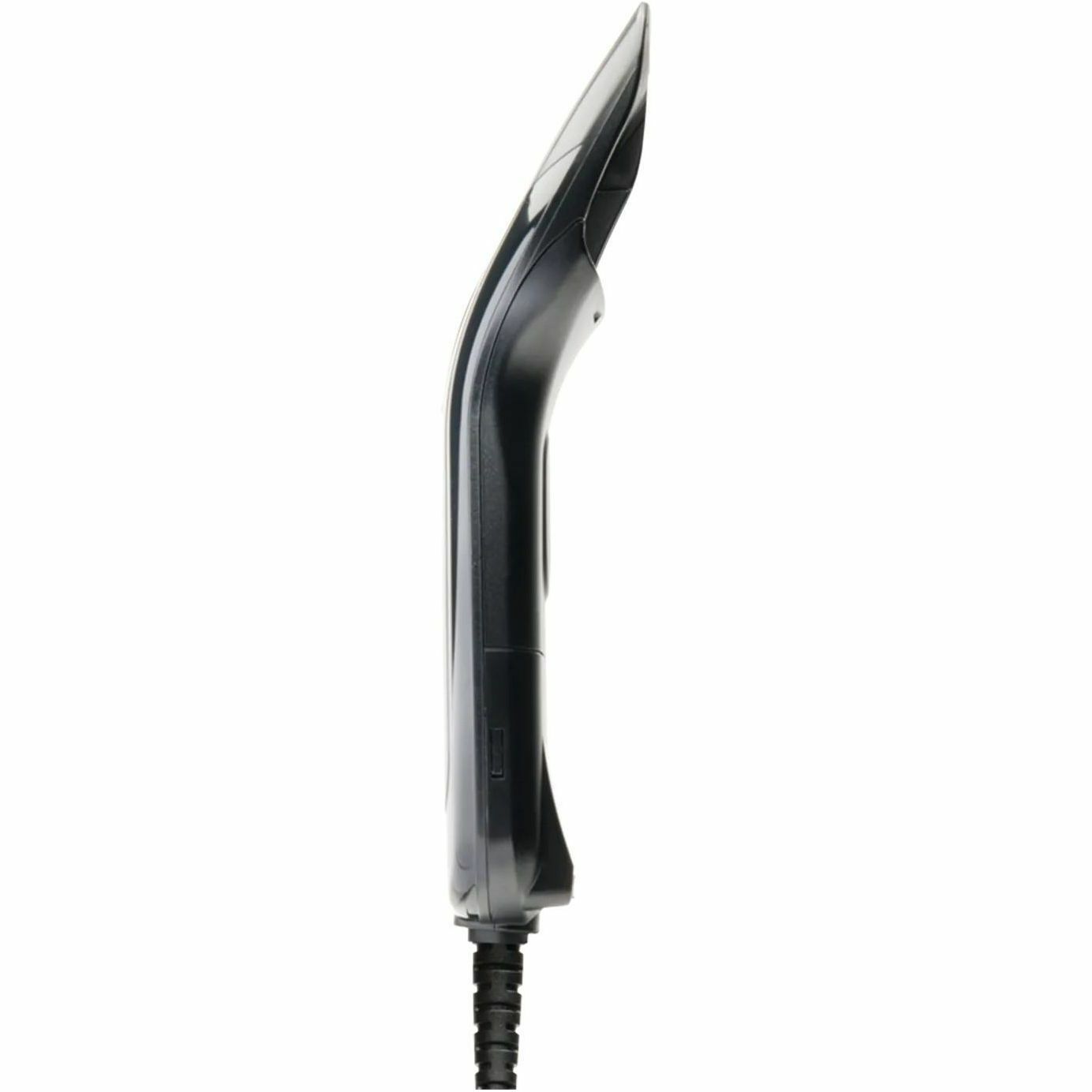

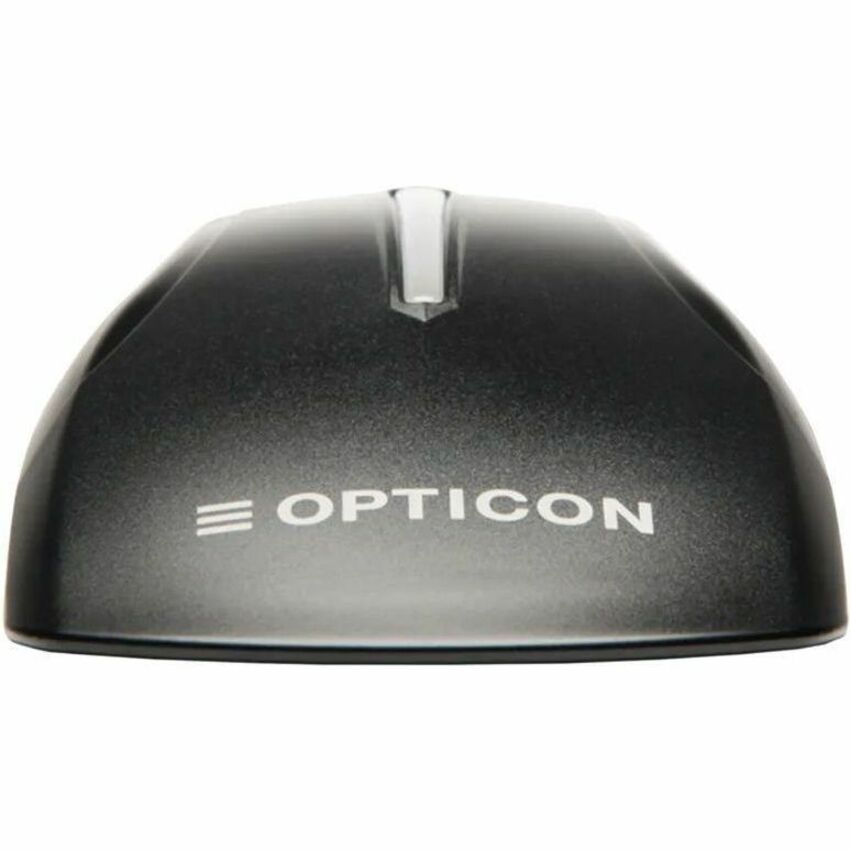

Opticon L22XWU1-03 Barcode Scanner
Opticon L22XWU1-03 Barcode Scanner
Opticon L22XWU1-03 Barcode Scanner
Opticon L22XWU1-03 Barcode Scanner
Opticon L22XWU1-03 Barcode Scanner
Opticon L22XWU1-03 Barcode Scanner Opticon L22XWU1-03 Barcode Scanner Opticon L22XWU1-03 Barcode Scanner Opticon L22XWU1-03 Barcode Scanner Opticon L22XWU1-03 Barcode Scanner

Opticon Parts Accessory Model Overview

Products and parts from Opticon.
Opticon L22XWU1-03 Barcode Scanner Overview

Featuring the perfect combination of performance, durability and reliability, the Opticon L-22X is a 2D CMOS imager handheld cabled scanner that reads a wide variety of 1D or 2D barcodes. The L-22X is built with anti-microbial plastics that are disinfectant ready enabling the device to be sterilized without hindering its performance while keeping users safe from bacteria in a hospital setting. An impressive design ensures a comfortable grip while the proprietary decode engine accurately captures virtually any barcode with first-time, every-time predictability. L-22X series scanner highlights include:

  • Sophisticated ergonomic design with an excellent price-to-performance ratio
  • High speed 2D CMOS imager
  • Rapidly scans and decodes a wide variety of 1D or 2D barcodes
  • Custom configuration capabilities including multi-read
  • Enhanced motion tolerance
  • Improved scanning of curved, wide and poorly printed barcodes
  • Durable - survives five foot drop to concrete
  • IP42 rating against dust and moisture
  • Trigger modes: manual, auto-trigger and stand detection
  • Communication interface: USB or RS232
  • Disinfectant ready
  • Available in black or white
  • Stand included
  • Backed by a two year warranty


Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
BARCODE (1D):
  • UPC-A
  • UPC-E
  • UPC-E1
  • UPC-A Add-on
  • UPC-E Add-on
  • EAN-13
  • EAN-8
  • EAN-13 Add-on/EAN-8 Add-on
  • JAN-8
  • JAN-13
  • Code 39
  • Tri-Optic
  • Codabar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • S-code
  • Code 93
  • Code 128
  • GS1-128
  • IATA
  • MSI/Plessey
  • UK/Plessey
  • Telepen
  • Code 11
  • Matrix 2 of 5
BARCODE (2D):
  • PDF417
  • MicroPDF417
  • Codablock F
  • QR Code
  • Micro QR Code
  • Data Matrix (ECC 200)
  • Maxi Code (Modes 2 to 5)
  • Aztec Code
  • Chinese Sensible Code
  • OCR-B
POSTAL CODE:
  • Chinese Post Matrix 2of5
  • Korean Postal Authority code
  • Japanese Postal
  • Intelligent Mail Barcode
  • POSTNET
  • PLANET
  • Netherlands KIX Code
  • Australian Postal
  • UK Postal
  • 4-State Mailmark Barcode
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scanning Distance:
12.51"
Features:
  • Ergonomic Design
  • Curved
  • Vibration
Stand Included:
Yes
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
100 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:

5 ft (1.5 m) drop onto concrete surface

Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
6.7 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
6.7 mil
Maximum Element Resolution (PDF417):
10 mil
Memory
Flash Memory:
1 GB
Processor & Chipset
Processor Type:
Cortex A7
Processor Speed:
800 MHz
Interfaces/Ports
Host Interface:
USB
Power Description
Input Current:
340 mA
Environmental Conditions
Operating Temperature:
23°F (-5°C) to 122°F (50°C)
Storage Temperature:
-22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing):
0% to 90%
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Product Material:
ABS/PC
Durability:
Dust Resistant
Height:
2.4"
Width:
6.5"
Depth:
1.2"
Weight (Approximate):
5.29 oz
Miscellaneous
Package Contents:
  • L-22X 2D CMOS Image Scanner
  • Stand
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Hospitality
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
The Opticon L22XWU1-03 Barcode Scanner is also known as OPT-L22XWU103 or L22XWU103.
