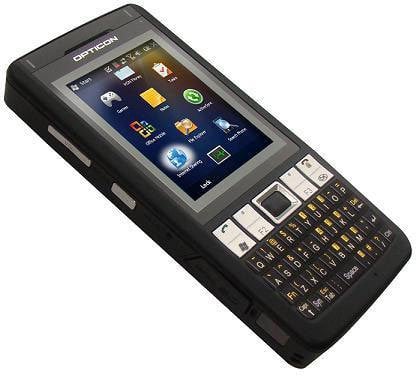

Opticon H-21B – Mobile Computer
Full specifications (PDF)
Opticon H-21B Mobile Computer Model Overview
Introducing the Opticon H21 - a powerful and versatile mobile device designed for enhanced productivity on the go. Powered by Microsoft Windows Mobile 6.5 and equipped with a 2D CMOS imager, this device is ideal for barcode scanning and mobile operations. Its compact design, QWERTY keyboard, and comprehensive connectivity options including Bluetooth and Wi-Fi make it the perfect partner for various field applications. Experience seamless performance with a robust Qualcomm CPU and extensive memory storage.
Key Features:
- Multiple Connectivity Options: Bluetooth™, Wi-Fi, GPRS/EDGE/3G/3.5G
- 2D CMOS Imager & Color Camera: Perfect for detailed scanning and capturing
- Durability: IP54 rated for moisture and dust resistance
- Compact Design: Lightweight at approximately 235g and portable dimensions
- Impressive Battery Life: 3060 mAh rechargeable battery for extended usage
Specifications:
- Operation:
- CPU: Qualcomm MSM7225 528 MHz
- Operating System: Microsoft® Windows Mobile® 6.5
- Memory:
- NAND Flash: 256 MB
- RAM: 256 MB
- Expansion: User accessible microSD (up to 2GB)
- Display:
- Type: 2.8" Graphic Transflective TFT LCD
- Resolution: 480 x 640 pixels
- Camera:
- Color Camera: 3.2 megapixels, with auto-focus and LED flash
- Communication:
- Bluetooth: Ver. 2.1 + EDR
- Wi-Fi: IEEE 802.11b/g
- GPS: Integrated AGPS
- Physical:
- Dimensions: 67 x 135 x 22 mm
- Weight: Approx. 235 g
