Opticon C-41S – Barcode Scanner – 1D – Scanner with Cable and Stand

Part Number: C41SBU1-00
Model: C-41S
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$46.98
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  C41S CCD BARCODE SCANNER, BLACK, USB, POWER SUPPLY
Explore all Opticon C-41S Barcode Scanners
Add to Quote
Opticon C41SBU1-00 Barcode Scanner
Opticon C41SBU1-00 Barcode Scanner
Opticon C41SBU1-00 Barcode Scanner
Opticon C41SBU1-00 Barcode Scanner Opticon C41SBU1-00 Barcode Scanner Opticon C41SBU1-00 Barcode Scanner
Full specifications (PDF)

Opticon C-41S Barcode Scanner Model Overview

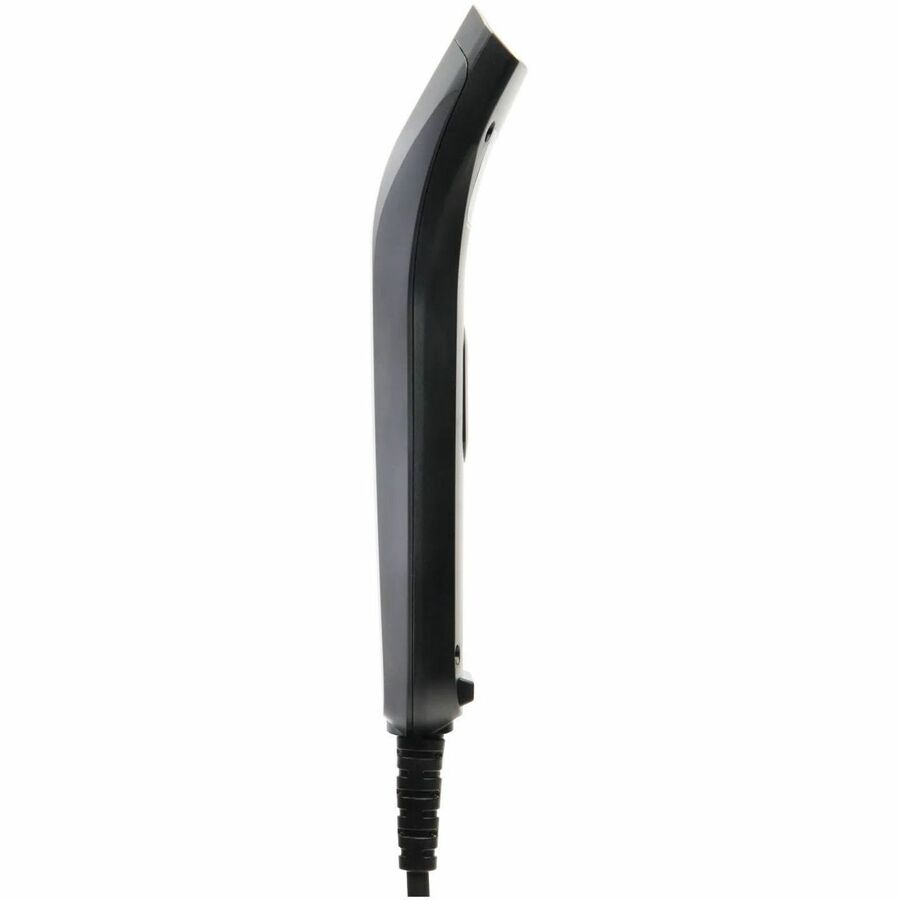

The C-41S CCD Barcode Scanner is your reliable and budget-friendly solution for rapid barcode scanning. Engineered for speed, this handheld device features enhanced decoding algorithms that achieve a remarkable scanning rate of up to 300 scans per second. Its durable construction ensures longevity, with the ability to withstand drops of up to five feet onto concrete. Whether you need to scan barcodes from printed materials or LCD screens, the C-41S excels in versatility, while the compact design facilitates easy handling in various environments. With options for USB or RS232 connections, this scanner meets diverse communication needs, making it ideal for any retail or warehouse setting.
Key Features
  • Cabled, handheld CCD design for dependable performance
  • Ultra-fast scanning at 300 scans per second
  • Single red LED aiming line for precise scanning
  • Durable construction survives five-foot drops
  • IP42 rating for protection against dust and moisture
  • Compact and lightweight: 2.2" x 6.06" x 1.33" and 1.9 oz
  • Available in black or white (white version is antimicrobial)
  • Two year warranty for peace of mind

Specifications
  • Power Requirements:
    • USB: 4.5 - 5.5V
    • RS-232C: 5.5-6.5V
  • Dimensions: 2.2" x 1.33" x 6.06"
  • Weight: Approx. 1.9 oz
  • Supported Symbologies:
    • 1D Barcodes: JAN/UPC/EAN, Code 39, Code 128, and more
    • Postal Codes: Chinese Post, Korean Postal Authority
  • Operating Conditions:
    • Temperature: 32 to 122 °F operational
    • Humidity: 5 - 95% (non-condensing)
  • Durability:
    • Drop Test: Survives 5 ft drops
    • Vibration Test: 10-100 Hz with 2G for 1 hour
    • Protection Rate: IP 42
Opticon C41SBU1-00 Barcode Scanner Overview

The C-41S is a fast and durable CCD handheld scanner with 300 scans per second. The scanner balances perfectly in your hand while scanning, due to the ergonomic design. If you are looking for a gorgeous handheld scanner for on your counter then you are at the right place; keep on reading.

The C-41S is a durable CCD handheld scanner that scans at a speed of 300 scans per second. Due to the wide optical window, it is easier to scan all 1D barcodes. The ergonomic design ensures a perfect balance when the scanner rests comfortably in your hand. The barcode scanner looks good on the counter of any store of service desk, blending in with the design of the environment.

The scanner is available with a USB interface and is easily programmable to suite your application. This scanner is really easy to use; the plug and scan experience make this scanner very suitable for first-time users as well as long time users. The white version is anti-microbial, making it perfect for the healthcare market.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D:

  • AN/UPC/EAN incl. add on
  • Codabar/NW-7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1-128 (EAN-128)
  • GS1 Databar (RSS) (excl. stacked)
  • IATA
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBN-ISSM-ISSN
  • Matrix 2 of 5
  • MSI/Plessey
  • S-Code
  • Telepen
  • Tri-Optic
  • UK/Plessey

Postal Code:

  • Chinese Post
  • Korean Postal Authority Code
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
300 scan/s
Scan Mode:
Trigger
Depth of Field:

Depth of field at code 39:

  • 40 - 90 mm (0.127 mm) / 1.57 - 3.54 in (5 mil)
  • 35 - 120 mm (0.15 mm) / 1.38 - 4.72 in (6 mil)
  • 20 - 220 mm (0.25 mm) / 0.79 - 8.66 in (10 mil)
  • 30 - 320 mm (0.5 mm) / 1.18 - 12.60 in (20 mil)
  • 45 - 600 mm (1.0 mm) / 1.77 - 23.62 in (39 mil)
Scan Pattern:
Linear
Scanning Distance:
23.62"
Features:
  • Notification LED
  • Vibration
  • Ergonomic Design
  • Scan Button
Number of Keys:
1
Cable Type Included:
USB
Reading Angle (Skew):
65°
Reading Angle (Pitch):
50°
Maximum Ambient Light:
10000 lux
Drop Specification:
  • : 1.5 m / 5 ft drop onto concrete surface
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
39 mil
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Product Material:
Acrylonitrile Butadiene Styrene (ABS)
Durability:
  • Dust Resistant
  • Water Resistant
Height:
1.3"
Width:
2.2"
Depth:
6.1"
Weight (Approximate):
1.94 oz
Miscellaneous
Package Contents:
  • C-41S CCD Linear Imager
  • USB Cable
  • Power Supply
Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Healthcare
  • Retail
  • Self-checkout
  • Commercial Service
  • Logistics
  • Ticketing
  • Hospitality
  • Manufacturing
  • Warehouse
  • Transportation
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Opticon C41SBU1-00 Barcode Scanner is also known as OPT-C41SBU100 or C41SBU100.
