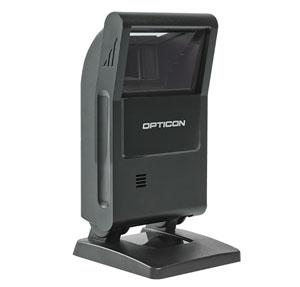

Opticon M-10 Barcode Scanner
Opticon M-10 -
The M-10, an omnidirectional 2D CMOS imager presentation scanner from Opticon, is ideal for a variety of vertical markets including retail, warehousing and healthcare. The M-10 features multiple scanning capabilities including the ability to scan 1D and 2D barcodes off a mobile phone LCD screen. The M-10's swivel stand makes it easy to tilt the scanner for best scanning orientation and the scanner can also operate as a handheld scanner.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$253.65
Item on backorder — chat for lead time
Opticon M-10 Barcode Scanner Options
-
Opticon M10BU1S-00 Barcode Scanner
2D CMOS IMAGER, OMNIDIRECTIONAL PRESENTATION, USBItem on backorder — chat for lead time$253.65
Opticon M-10 Barcode Scanner Model Overview
The Opticon M-10 Presentation Scanner is a high-speed 2D CMOS imager designed for efficiency and versatility. With the ability to scan up to 60 frames per second, it rapidly decodes both 1D and 2D barcodes, including those displayed on mobile phone screens. Its compact, stylish design is perfect for any retail environment, while its durable construction can withstand drops from up to 5 feet. The M-10 also features advanced data editing capabilities that allow for the simultaneous capture of multiple codes, making it an ideal choice for busy workspaces.
Key Features:
Specifications:
Key Features:
- High speed 2D CMOS imager - scans up to 60 frames per second
- Omnidirectional scanning of 1D and 2D barcodes
- Handheld functionality with a trigger switch
- Compact size - 2.99" x 5.47" x 2.76" and weighs only 8.82 ounces
- Durable design - withstands drops from 5 feet and IP52 rated
- Manual and auto-trigger modes
- Two-year warranty
Specifications:
- Operating Indicators:
- Visual: 2 LEDs (green/blue/orange)
- Audible: Buzzer
- Communication:
- RS232: DB9 PTF connector, 300 bps - 115200 bps
- USB: Full-speed 12Mbps (HID/COM)
- 2D Imager Optics:
- Light Source: 2 Red LEDs
- Scan Method: WVGA CMOS sensor, 752x480 pixels
- Scan Rate: Up to 60 fps
- Field of View: Horizontal 40.6°, Vertical 26.4°
- Supported Symbologies:
- 1D Barcodes: JAN/UPC/EAN, Code 39, Code 128
- 2D Barcodes: QR Code, PDF417, Data Matrix
- Durability:
- Operating Temperature: -5 to 45 °C
- Storage Temperature: -20 to 60 °C
- Protection Rate: IP52
