Total Number of Network Ports:
2
Opengear OM2232-L-C14 Console & Device Servers
Part Number:
OM2232-L-C14
Model:
Opengear Console & Device Servers Model Overview
Find Opengear’s serial console and out-of-band management devices

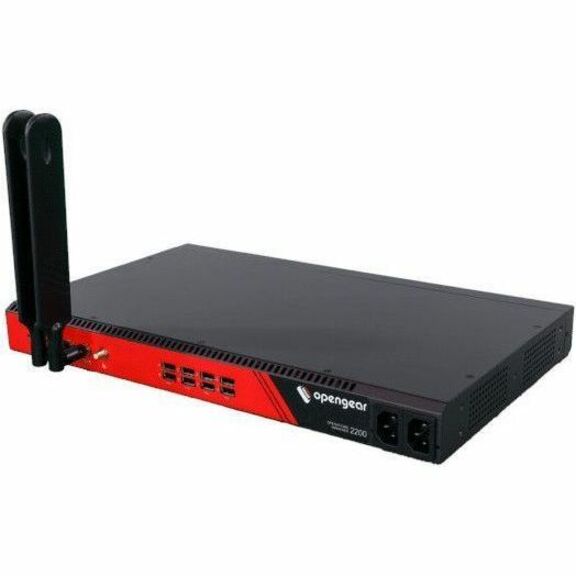

Opengear OM2232-L-C14 Console & Device Servers Overview
Opengear OM appliances are NetOps Console Servers - Network Management appliances that combine the capabilities of a SmartOOB™ Console Server with the flexibility of NetOps Automation.
The OM2200 appliance, managed through our Lighthouse software, is configured for data centers and high density locations. Integrated into Opengear's Network Resilience Platform, it provides a separate, secure management plane which supports advanced automation applications.
Features
- 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models
- Separate platforms optimized for 1GbE and 10 GbE networks
- Global LTE interface (non-cellular optional)
- x86 platform; embedded physical security
- Python runtime, Docker container support
Interfaces/Ports
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Input Voltage Range:
100V Ac to 240V AC
Frequency:
- 50 Hz
- 60 Hz
Power Plug Type:
IEC 320-C14
Physical Characteristics
Form Factor:
Rack Mount
Rack Height:
1U
Height:
1.8"
Width:
17.3"
Depth:
10.3"
Weight (Approximate):
7.72 lb
Miscellaneous
Package Contents:
- OM2232-L Infrastructure Management Equipment
- 2 x US A/C Power Cords
- 1 x Rack Mount Kit
- 1 x CAT5 Cable 6'
- 1 x DB9F - RJ45 Crossover
- Start-Up / Safety Instructions Card
- 2 x Cellular Antennas
- 1 x Cellular Antenna Extender with Magnetic Base
Additional Information:
- CPU: 1.4 GHz 4-Core x86
- 8 GB DDR3 RAM
- 64GB Internal Storage
- Console Server + Automation
- 32 Serial
- 8G RAM
- 64G Flash
- 1GbE
- Python Runtime
- Docker Support
- Secure Boot
- Global 4G LTE
Environmental:
- Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -30°C to +60°C, -22°F to +140°F
- Humidity: 5% to 90%
Application/Usage:
Remote Management
Certification:
- EN55032: 2015 Class A
- EN61000-4-2, -4-3:2006+A1: 2006+A2:2010, -4-4: 2007, -4-5: 2014, -4-6:2008, -4-8: 2009, -4-11: 2010, -4-28: 2010 EN61000-3-2: 2014, EN61000-3-3: 2013
- IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
- EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
Warranty
Limited Warranty:
4 Year
Item Numbers
GTIN:
0843295104363
UPC:
843295104363
EAN:
0843295104363
UNSPSC:
43222634
