Frequency:
- 50 Hz
- 60 Hz

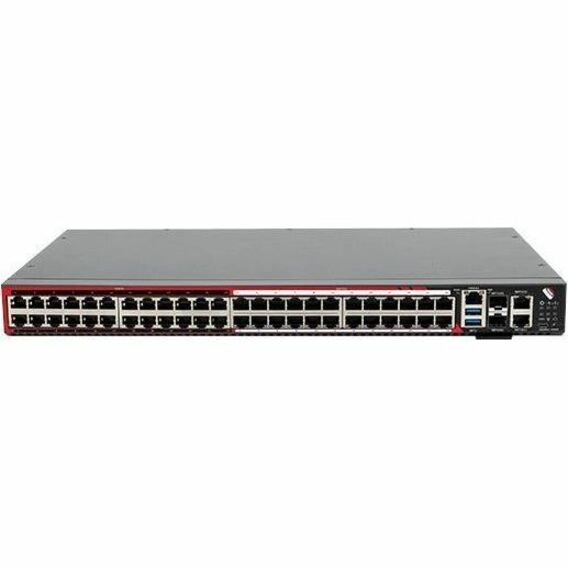

Opengear OM2224-24E-L-US Console & Device Servers
Part Number:
OM2224-24E-L-US
Model:
Opengear Console & Device Servers Model Overview
Find Opengear’s serial console and out-of-band management devices
Opengear OM2224-24E-L-US Console & Device Servers Overview
The OM2200 appliance, managed through our Lighthouse software, is configured for data centers and high density locations. Integrated into Opengear's Network Resilience Platform, it provides a separate, secure management plane which supports advanced automation applications.
- 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models
- Separate platforms optimized for 1GbE and 10 GbE networks
- Global LTE interface (non-cellular optional)
- PSTN modem with select models
- x86 platform; embedded physical security
- Python runtime, Docker container support
Power Description
Physical Characteristics
Form Factor:
Rack Mount
Height:
1.8"
Width:
17.3"
Depth:
10.3"
Weight (Approximate):
7.72 lb
Miscellaneous
Package Contents:
- OM2200 Operations Manager with Smart Out-of-Band Management
- 2 x USA A/C Power Cords
- 1 x Rack Mount Kit
- 1 x CAT5 Cable 6'
- 1 x DB9F - RJ45 Crossover
- Start-Up / Safety Instructions Card
- 2 x Cellular Antennas
- 1 x Cellular Antenna Extender with Magnetic Base
Additional Information:
- CPU: 1.4 GHz 4-Core x86
- 8 GB DDR3 RAM
- 64GB Internal Storage
- 2 USB 3.0 and 8 USB 2.0 ports
- 24 x Selectable RJ45 RS-232 Ports and 24 x Managed 10/100/1000 Base-T Switched Ethernet Ports
- 2 x 10/100/1000 Ethernet/SFP Fiber Ports
- Cellular: Global 4G LTE
- 1 RU
Environmental:
- Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -30°C to +60°C, -22°F to +140°F
- Humidity: 5% to 90%
Application/Usage:
Remote Management
Country of Origin:
United States
Warranty
Limited Warranty:
6 Year
Item Numbers
GTIN:
0843295102833, 0843295103816
UPC:
843295102833, 843295103816
EAN:
0843295102833, 0843295103816
UNSPSC:
43222634
