Device Type:
Console Server

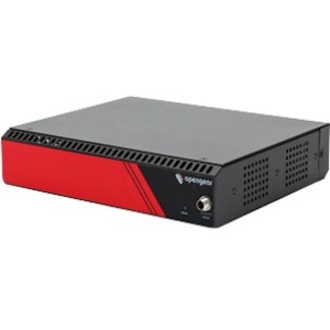

Opengear OM1204 Console & Device Servers
Part Number:
OM1204
Model:
Opengear Console & Device Servers Model Overview
Find Opengear’s serial console and out-of-band management devices
Opengear OM1204 Console & Device Servers Overview
Opengear OM appliances are NetOps Console Servers - Network Management appliances that combine the capabilities of a SmartOOB™ Console Server with the flexibility of NetOps Automation.
The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
Features
The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
Features
- Half-width, shallow depth, 1RU form factor
- Cost-effective 4 or 8 Serial port-only models
- Mixed-port models: 4 or 8 Serial, 4 or 8 Ethernet
- Global LTE interface (non-cellular optional)
- x86 platform; embedded physical security
- Python runtime, Docker container support
Technical Information
Processor & Chipset
Processor Speed:
1.40 GHz
Memory
Standard Memory:
1.95 GB
Memory Technology:
DRAM
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
4
Number of Serial Ports:
4
Power Description
Power Consumption:
25 W
Physical Characteristics
Form Factor:
- Rack-mountable
- Desktop
Height:
1.7"
Width:
8.7"
Depth:
6.7"
Weight (Approximate):
2.20 lb
Miscellaneous
Additional Information:
Environmental:
- Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -40°C to +75°C, -40°F to +167°F
- Humidity: 5% to 90%
- Environmental Monitoring: Internal temperature sensor and external serial EMD5000 device supports physical, smoke, water leak, vibration sensors
- MTBF: 100,000 Hours (Power Supply)
- Trusted Platform Module 2.0
- AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
- Embedded Firewall
- IPSec and OpenVPN
- Opengear NetOps Modules
- Perl and bash support
- Docker support
- ZTP Python and Ruby
- SNMP-Standard MIBs
Country of Origin:
United States
Item Numbers
GTIN:
0843295103380
UPC:
843295103380
EAN:
0843295103380
UNSPSC:
43222625
