Device Type:
Console Server

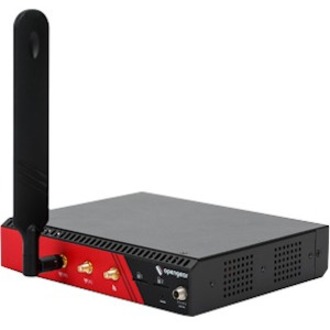

Opengear OM1204-L Console & Device Servers
Part Number:
OM1204-L
Model:
Opengear Console & Device Servers Model Overview
Find Opengear’s serial console and out-of-band management devices
Opengear OM1204-L Console & Device Servers Overview
Opengear OM appliances are NetOps Console Servers - Network Management appliances that combine the capabilities of a SmartOOB™ Console Server with the flexibility of NetOps Automation.
The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
Features
The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
Features
- Half-width, shallow depth, 1RU form factor
- Cost-effective 4 or 8 Serial port-only models
- Mixed-port models: 4 or 8 Serial, 4 or 8 Ethernet
- Global LTE interface (non-cellular optional)
- x86 platform; embedded physical security
- Python runtime, Docker container support
Technical Information
Processor & Chipset
Processor Speed:
1.40 GHz
Memory
Standard Memory:
1.95 GB
Memory Technology:
DRAM
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
4
Number of Serial Ports:
4
Power Description
Power Consumption:
25 W
Physical Characteristics
Form Factor:
- Rack-mountable
- Desktop
Height:
1.7"
Width:
8.7"
Depth:
6.7"
Weight (Approximate):
2.20 lb
Miscellaneous
Additional Information:
Remote Access: Integrated 4G LTE Cellular Card, Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
Modules: Sierra Wireless EM7565
Speed: CAT12
Coverage: Global LTE-A Support
Environmental:
- Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -40°C to +75°C, -40°F to +167°F
- Humidity: 5% to 90%
- Environmental Monitoring: Internal temperature sensor and external serial EMD5000 device supports physical, smoke, water leak, vibration sensors
- MTBF: 100,000 Hours (Power Supply)
- Trusted Platform Module 2.0
- AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
- Embedded Firewall
- IPSec and OpenVPN
- Opengear NetOps Modules
- Perl and bash support
- Docker support
- ZTP Python and Ruby
- SNMP-Standard MIBs
Country of Origin:
United States
Item Numbers
GTIN:
0843295103397
UPC:
843295103397
EAN:
0843295103397
UNSPSC:
43222625
