Processor Speed:
1.60 MHz
Opengear CM8148-10G-C14 Console & Device Servers
Part Number:
CM8148-10G-C14
Model:
Opengear Console & Device Servers Model Overview
Find Opengear’s serial console and out-of-band management devices
Opengear CM8148-10G-C14 Console & Device Servers Overview

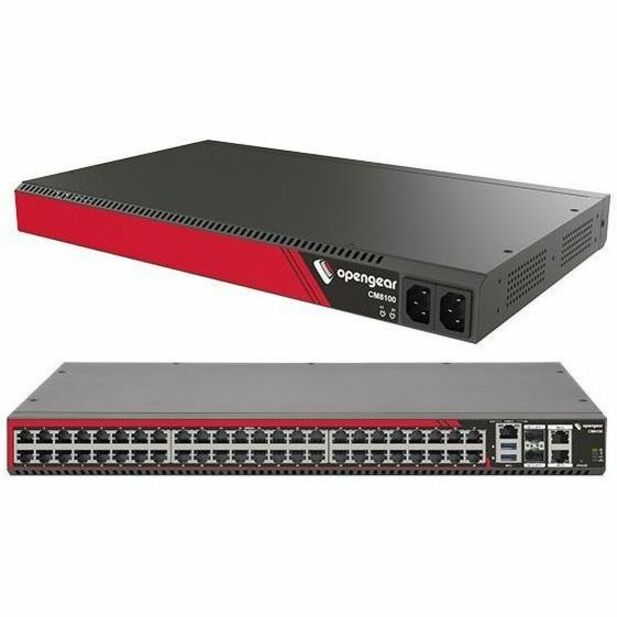

CM8100 Console Server
The CM8100 is Opengear's newest console manager for data centers and enterprise networks, available in 1GbE and 10GbE models. The CM8100 Console Manager provides up to 96 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, 48 or 96 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
- 16, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- Hardware-based TPM 2.0 provides data encryption and secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports
Processor & Chipset
Memory
Standard Memory:
1.95 GB
Memory Technology:
DDR4 SDRAM
Maximum Memory Supported:
32 GB
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
I/O Expansions
Total Number of Expansion Slots:
2
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Network Standard:
- 10GBase-X
- 1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
2
Number of Serial Ports:
48
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Color Family:
Dual Color
Product Color:
- Black
- Red
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.3"
Depth:
10.5"
Weight (Approximate):
8 lb
Item Numbers
GTIN:
0843295104608, 0843295104615
UPC:
843295104608, 843295104615
EAN:
0843295104608, 0843295104615
UNSPSC:
43222625
