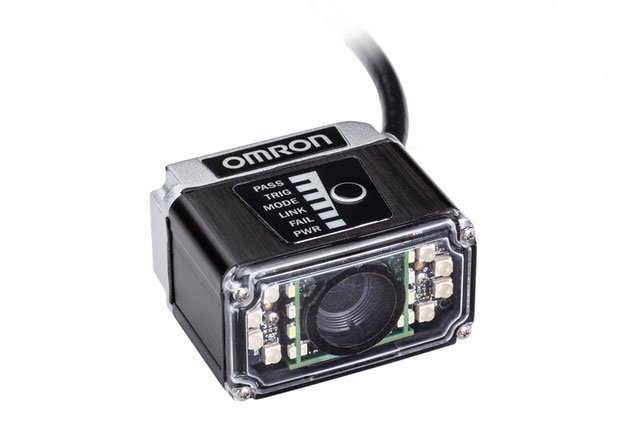

Omron V420-F190W50C-SWX Fixed Barcode Scanner
Part Number:
V420-F190W50C-SWX
Model:
MicroHAWK V420
Full specifications (PDF)
Omron MicroHAWK V420 Fixed Barcode Scanner Model Overview
The MicroHAWK V420-F Autofocus Multicode Reader is engineered for efficiency, providing advanced autofocus capabilities to read codes at varying distances with remarkable precision. It features a user-friendly configuration interface via WebLink and boasts a 5-megapixel sensor for enhanced image quality. With multiple interface options including RS-232, USB, and Ethernet over USB, this versatile code reader is well-suited for a wide range of industrial and commercial applications. Its durable design meets IP54 rating standards, ensuring reliable operation in various environments.
Key features:
Specifications:
Key features:
- Autofocus technology for adaptable reading distances
- 5MP image sensor for superior clarity
- Easy configuration with WebLink software
- Multiple connectivity options: USB, RS-232, Ethernet
- Durable construction with IP54 rating
- Flexible mounting options available
Specifications:
- Focus Type: Autofocus, Fixed Focus (50mm, 64mm, 81mm, 102mm, 133mm, 190mm, 300mm, 400mm)
- Sensor: 0.3MP (752x480), 1.2MP (1280x960), 5MP (2592x1944)
- Field of View: Wide, Medium, Narrow
- Illumination: Red, White, Blue, IR
- Dimensions: 44.5mm x 38.1mm x 25.4mm
- Weight: 120g (main body)
- Operating Temperature: 0 to 45°C
- Protection Rating: IP54
Brand
Omron
Model
MicroHAWK V420
