OKI 91907101 Line Printer

The OKI 91907101 Line Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
OKI - OKIDATA MICROLINE 320 TURBO SERIAL DOT MATRIX PRINTER
  • Point-of-sale design
  • Tank-Tough reliability
  • Zero-tear capability
  • Handles paper stock twice as thick as similar standard printers
Read More

Need a different version? See all OKI Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
OKI 91907101 Line Printer
OKI 91907101 Line Printer OKI 91907101 Line Printer
OKI 91907101 Line Printer
OKI 91907101 Line Printer
OKI Parts Accessory Model Overview
Products and parts from OKI.

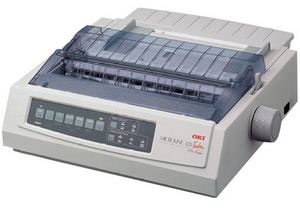

OKI 91907101 Line Printer Overview

Microline 320 Turbo with RS-232C Serial is a point-of-sale impact printer with automation and utility applications, IEEE parallel and USB connection. Tank-Tough reliability, expanded head gap and zero-tear capability are designed for dedicated forms printing. This nine-pin dot matrix printer blazes new trails in productivity with the richness of features. It handles paper stock twice as thick as similar standard printers and eliminates wasted forms. Printer generates 435 black/white characters per second with 240 x 216 dpi.

Technical Information
Maximum Mono Print Speed (cps):
435
Maximum Print Resolution:
240 x 216 dpi
Number of Pins:
9-pin
Memory
Standard Memory:
64 KB
Memory Technology:
DRAM
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Envelope
  • Label
  • Continuous Form
  • Cut Sheet
  • Card Stock
  • Multiple Part Form
Fonts & Emulation
Language Emulation:
  • Epson FX
  • Oki Microline
  • IBM ProPrinter
  • Epson ESC/P
Software
Operating System Supported:
Windows® 8, Windows 7, Vista® 32/64, XP, 2000
Reliability
MTBF:
10000 Hour
Duty Cycle:
20000
Power Description
Power Source:
AC Supply
Input Voltage:
120 V AC
Maximum Power Consumption:
100 W
Physical Characteristics
Form Factor:
Desktop
Color:
White
Height:
4.6"
Width:
15.7"
Depth:
13.6"
Weight (Approximate):
15.40 lb
Miscellaneous
Additional Information:
  • Receive Buffer: 28K
  • Front Panel Direct Access Controls
  • Front Panel Limited Function Mode

Code Pages:

  • Standard ASCII
  • Epson Character Set I and II
  • IBM Character Set I, I and All
  • Code Page 850, 860, 863, 865, 437
  • BRASCII
  • ABICOMP

Paper Handling:

  • Number of Copies: 6
  • Standard Tractor: Rear Push with zero-tear and paper park
  • Options: Top-Mount Pull Tractor, Bottom Push Tractor, Roll Paper Stand
  • Thickness:
  • Rear Feed: 0.014" (0.36 mm) maximum
  • Bottom Feed: 0.017" (0.43 mm) maximum* expandable to 0.031"

Software Drivers:

  • HP JetAdmin
  • Web JetAdmin
  • OkiVIEW 32
  • *Requires Optional Push or Pull Tractor
Platform Supported:
PC
Recycled:
No
Post-consumer-waste%:
0%
Assembly Required:
No
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Country of Origin:
Thailand
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0051851440538, 0696454047113, 0818213210778
UPC: 051851440538, 696454047113, 818213210778
EAN: 0051851440538, 0696454047113, 0818213210778
UNSPSC: 43212102
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The OKI 91907101 Line Printer is also known as 91907101
